Dual Band WS1208V2 5G Wifi Router Circuit Board 1200Mbps With Sim Slot

Dual Band WS1208V2 5G Wifi Router Circuit Board 1200Mbps With Sim Slot

  • High Light

    5G Wifi Router Circuit Board

    ,

    1200Mbps Wifi Router Circuit Board

  • Chipset
    MT7621A Dual-core 880MHZ
  • RAM
    256MB
  • Flash
    16MB
  • Interface
    1WAN+4LAN
  • SIM Card Slot
    1 SIM Card Support
  • Power Supply
    DC 12V2A
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    WS1208V2-PCBA
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    24*15*5 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

Dual Band WS1208V2 5G Wifi Router Circuit Board 1200Mbps With Sim Slot

High Quality Dual Band WS1208V2 Wifi Router 5g PCBA 1200Mbps 4g Router Sim Slot



Product Description

WS1208V2 uses the latest MTK wireless solution ,the MT7621A , the clock frequency is as high as 880MHZ, provide 5 gigabit Auto MDI/MDIX Ethernet port, 1×USB 2.0 port, 1×PCI-E , 1×M.2 ,1×Micro SD card



Wireless:
Support IEEE802.11AC/N/G/B/A wireless protocol, max wireless rate could be 1200Mbps


Software:
Preload the OpenWRT.



Product Feature

  • Latest Dual core network chipset MT7621A,Clock Frequency get 880Mhz
  • Provide 5 gigabit Auto MDI/MDIX Ethernet port
  • 1 USB2.0 port and 1 PCI-E M.2
  • Provide 1 Micro SD Card slot
  • support IEEE IEEE802.11AC/N/G/B/A wireless protocol
  • The transmission rate get to 1200Mbps

Specification



Hardware Specification
Main Chipset MT7621A/Duabl Core /880Mhz
RAM DDR3 RAM 256MB (MAX512MB)/DDR2 RAM 128MB(MAX 256MB)
FLASH SPI FLASH 16MB (MAX32MB) Higher Flash, need to redraw the PCBA
Protocol Standard

IEEE 802.11ac,IEEE 802.11a

IEEE 802.11n,IEEE 802.11g,IEEE 802.11b;
IEEE 802.3,IEEE 802.3u;

Wireless Rate

5G : 900Mbps

2.4G: 300Mbps

Work Frequency 2.4GHz/5G
Interface

1*10/100M/1000M WAN Port, Auto MDI/MDIX
4*10/100M/1000M LAN Port, Auto MDI/MDIX

1*USB 2.0 port

1*PCI-E

1*M.2

1*SIM Card

1*SD Card

LED PWR.SYS.5G.2.4G.5.8G.
Button 1*RESET
Power consumption < 12W
Adapter DC 12V2A
Software
Management

IP:192.168.1.1

USER/root admin/admin

OS OpenWRT (14.07)
WAN Type PPPoE,DynamicIP,Static IP
Work Mode

AP;

Router;

DHCP Server, Client, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Firewall Security

Dos, SPI Firewall

IP Address Filter/MAC Address Filter/ Domain Filter

IP and MAC Address Binding

DDNS Support
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Band Ctrl Support
Static Router Support
System Log Support
Other Function Mac clone
NTP Synchronize
Web firmware upgrade
Others
Work Environments

Operating Temperature:0℃ ~ 40℃;
Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing



Details Images

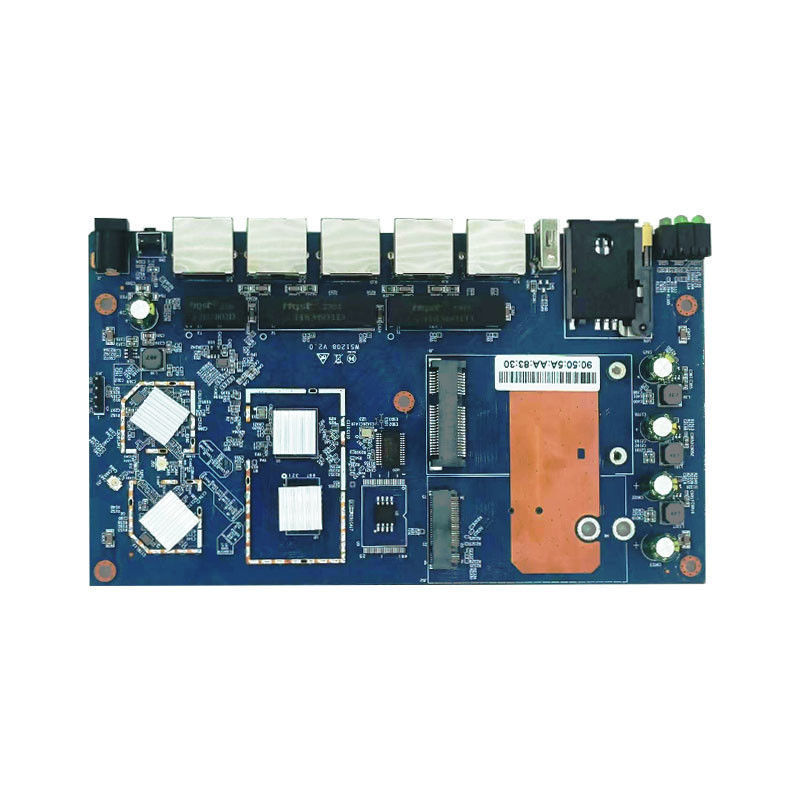

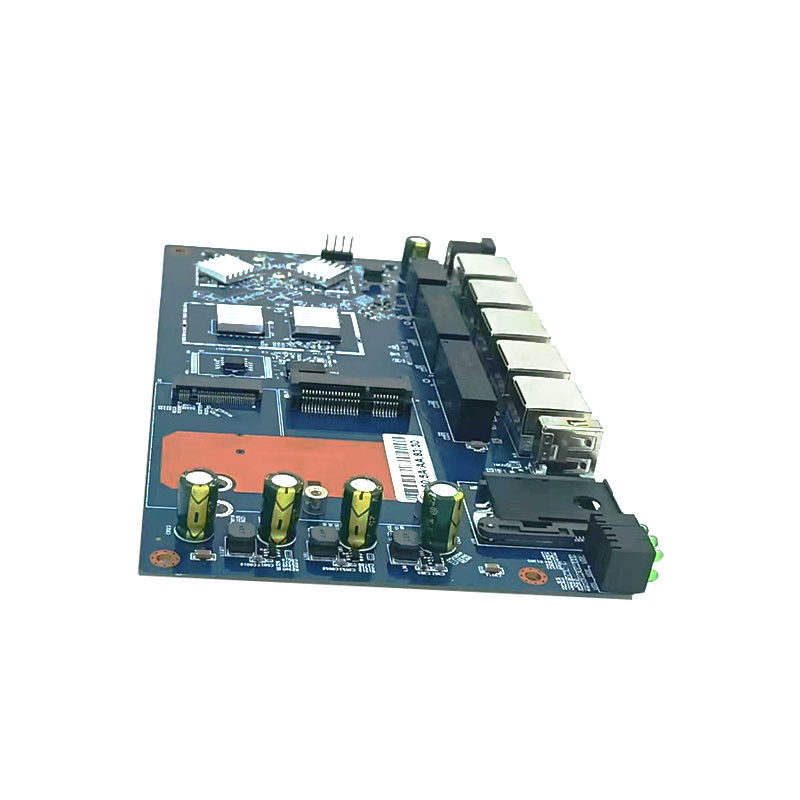

Dual Band WS1208V2 5G Wifi Router Circuit Board 1200Mbps With Sim Slot 0Dual Band WS1208V2 5G Wifi Router Circuit Board 1200Mbps With Sim Slot 1Dual Band WS1208V2 5G Wifi Router Circuit Board 1200Mbps With Sim Slot 2Dual Band WS1208V2 5G Wifi Router Circuit Board 1200Mbps With Sim Slot 3Dual Band WS1208V2 5G Wifi Router Circuit Board 1200Mbps With Sim Slot 4



FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
