Shenzhen Huasifei Technology Co., Ltd.
802.11 Ceiling Mounted Wifi Access Point 512mb Ddr3

802.11 Ceiling Mounted Wifi Access Point 512mb Ddr3

  • High Light

    802.11 ceiling mounted wifi access point


    ddr3 ceiling mounted wifi access point


    802.11 wifi 6 ceiling access point

  • Wireless Speed
  • WIFI
    802.11 A/b/g/n/ac/ax
  • User
    128 Users
  • Power Supply
    48V PoE
  • RAM
    DDR3 Memory 512MB
  • Flash
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 piece
  • Price
  • Packaging Details
    25*25*10 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

802.11 Ceiling Mounted Wifi Access Point 512mb Ddr3

Dual Band Wifi6 3000Mbps Ceiling Ap Access Point Indoor Wireless Access Point


Product Description


  Adopting IPQ5018 chip, supporting a 160MHz bandwidth, greatly expanding user capacity, and supporting a maximum of 128 users;

The 2.4GHz frequency band has strong compatibility, long transmission distance, low interference in the 5GHz frequency band, dual frequency concurrency, and a wireless transmission rate of up to 3000Mbps, better meeting the wireless coverage needs of crowded places;

Support seamless roaming, smoother switching, and enhance the wireless experience of each user;

Support automatic channel optimization, reduce mutual interference between channels, and optimize the overall performance of wireless networks;

Built-in 2 2.4G antennas and 2 5G antennas to improve the wireless signal quality in the AP coverage area;

Support unified management of AC controllers, one click configuration distribution, saving manual maintenance costs;

Support 802.3at protocol, standard 48V PoE power supply, plug and play, more flexible and convenient power wiring;

Suitable for various crowded scenarios, such as high-speed railway stations, subway stations, terminal buildings, hotels, hospitals, schools, scenic spots, docks, shopping malls, and other application scenar




CPU IPQ5018 + QCN6102
DDR3 512MB
Wireless Protocol Standards

2.4G:support IEEE 802.11 b/ g/ n/ ac/ax

5G:support IEEE 802.11 a/ n/ac/ax

Wireless operating frequency band



Wireless maximum speed

2.4G provides up to 574Mbps access rate


5.8G provides up to 2402Mbps access rate

2.4G antenna 2 built-in antennas, gain:4dBi
5G antenna 2 built-in antennas, gain:4dBi
Maximum supported wireless access quantity 120+
network interface

1 10/100/1000M adaptive RJ45 interface,

supporting 48V POE power supply

control port 1 Console port
Reset switch 1 RESET reset button (press and hold for 10-15 seconds to restore the default factory settings)

pilot lamp


WAN port indicator light, LAN port indicator light;


Three color lights (three different colors represent: SYS red, 2.4G/WIFI green, 5.8G/WIFI blue)

Power supply mode


Standard POE power supply, supporting 802.3at protocol;

DC 12V 1.5A.

Maximum power consumption of the entire machine



Product size 196mm×196mm×40mm
weight 1kg

Air discharge+/-8K,

contact discharge+/-4K

surge Common mode 2K, differential mode 1K
Appearance material Imported high-quality high-temperature resistant PC material
Appearance color white
protection grade IP31
Installation method Ceiling mounted installation

product accessories


AX3000 WIFI6 Dual Band Ceiling Mounted Wireless AP * 1

User manual * 1, warranty card * 1, certificate of conformity * 1


Usage environment


Working temperature: -10 ℃~55 ℃

Storage temperature: -40 ℃~70 ℃

Working humidity: 10%~90% RH non condensing

Storage humidity: 5% -95% RH non condensing

Software specifications
Working mode

Fat and thin in one,

Thin AP mode (FIT AP): managed uniformly by the wireless controller (AC)

Fat AP mode (FAT AP): independent web page management

AC unified management



Wireless function


SSID broadcast Support
SSID hide Support
Chinese SSID Support
multiple SSID Support
SSID merge Support for combining multiple frequency bands of 2.4GHz and 5.8GHz into a common SSID
wireless encryption WPA,WPA2,WPA-PSK,WPA2-PSK


Details Images

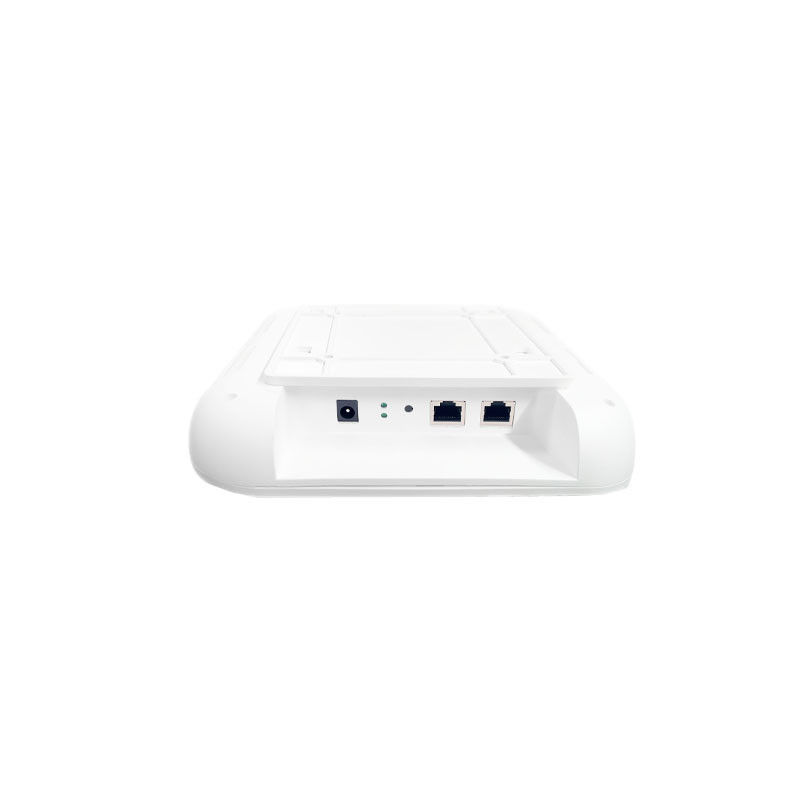

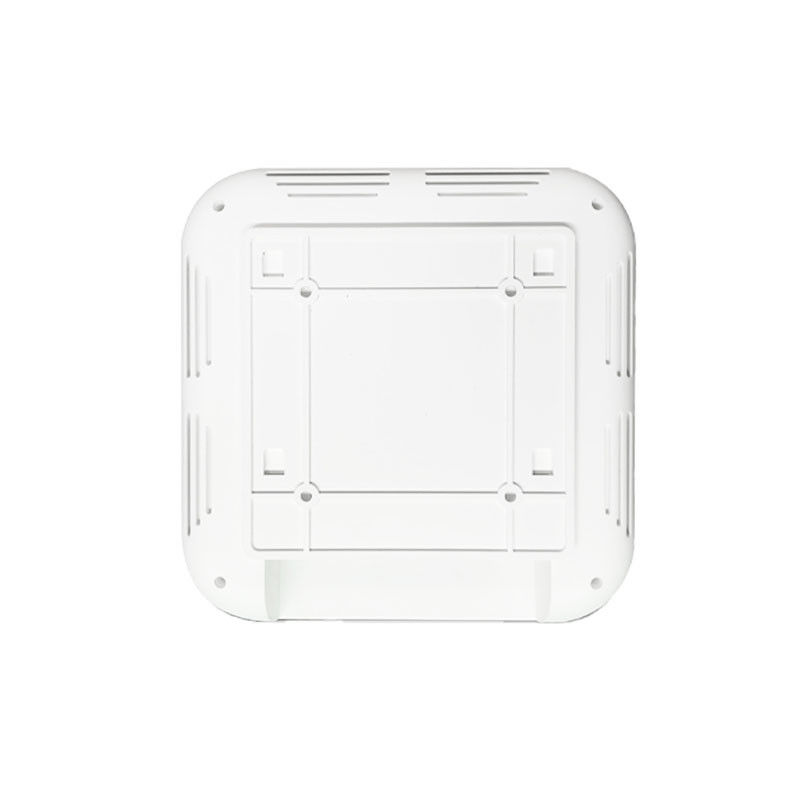

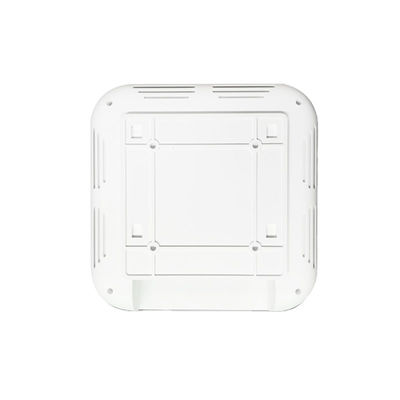

802.11 Ceiling Mounted Wifi Access Point 512mb Ddr3 0802.11 Ceiling Mounted Wifi Access Point 512mb Ddr3 1802.11 Ceiling Mounted Wifi Access Point 512mb Ddr3 2


Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
