Dual Band Wifi Ceiling Ap 3000Mbps Wifi 6 Ceiling Access Ap Indoor For Office
Product Description
Adopting IPQ5018 chip, supporting a 160MHz bandwidth, greatly expanding user capacity, and supporting a maximum of 128 users;
The 2.4GHz frequency band has strong compatibility, long transmission distance, low interference in the 5GHz frequency band, dual frequency concurrency, and a wireless transmission rate of up to 3000Mbps, better meeting the wireless coverage needs of crowded places;
Support seamless roaming, smoother switching, and enhance the wireless experience of each user;
Support automatic channel optimization, reduce mutual interference between channels, and optimize the overall performance of wireless networks;
Built-in 2 2.4G antennas and 2 5G antennas to improve the wireless signal quality in the AP coverage area;
Support unified management of AC controllers, one click configuration distribution, saving manual maintenance costs;
Support 802.3at protocol, standard 48V PoE power supply, plug and play, more flexible and convenient power wiring;
Suitable for various crowded scenarios, such as high-speed railway stations, subway stations, terminal buildings, hotels, hospitals, schools, scenic spots, docks, shopping malls, and other application scenar
Specification
| CPU | IPQ5018 + QCN6102 | |||||
| DDR3 | 512MB | |||||
| FLASH | SPI NAND 32MB | |||||
| Wireless Protocol Standards |
2.4G:support IEEE 802.11 b/ g/ n/ ac/ax 5G:support IEEE 802.11 a/ n/ac/ax |
|||||
| Wireless operating frequency band |
2.4GHz:2.4GHz–2.484GHz 5GHz:5.150GHz~5.825GHz |
|||||
| Wireless maximum speed |
2.4G provides up to 574Mbps access rate
5.8G provides up to 2402Mbps access rate |
|||||
| 2.4G antenna | 2 built-in antennas, gain:4dBi | |
| 5G antenna | 2 built-in antennas, gain:4dBi | |
| Maximum supported wireless access quantity | 120+ | |
| network interface |

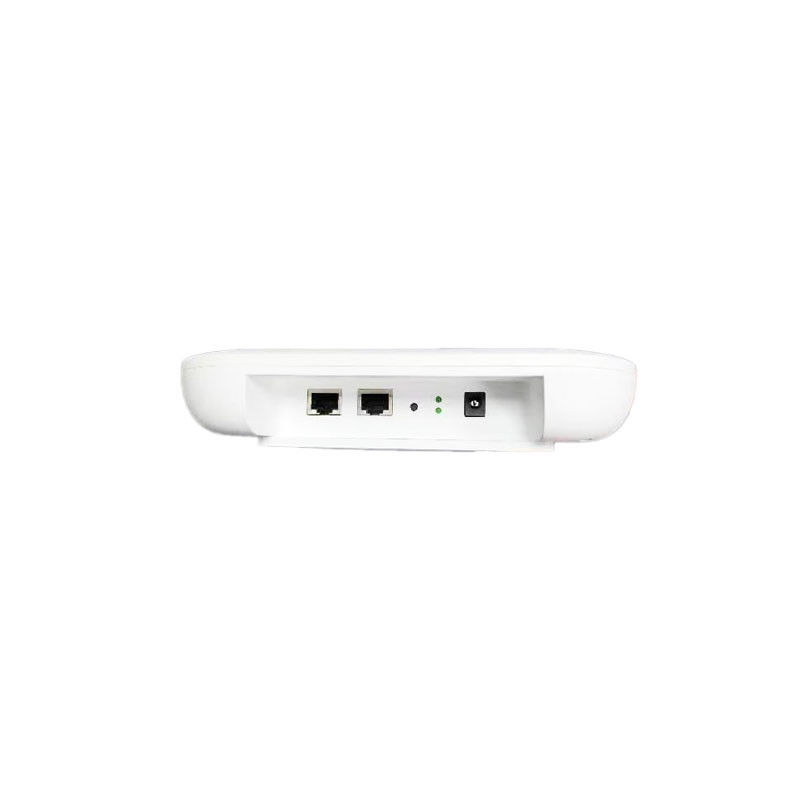

1 10/100/1000M adaptive RJ45 interface, supporting 48V POE power supply |
|
| control port | 1 Console port | |
| Reset switch | 1 RESET reset button (press and hold for 10-15 seconds to restore the default factory settings) | |
|
pilot lamp
|
WAN port indicator light, LAN port indicator light;
Three color lights (three different colors represent: SYS red, 2.4G/WIFI green, 5.8G/WIFI blue) |
|
|
Power supply mode
|
Standard POE power supply, supporting 802.3at protocol; DC 12V 1.5A. |
|
| Maximum power consumption of the entire machine |
22W
|
|
| Product size | 196mm×196mm×40mm | |
| weight | 1kg | |
| ESD |
Air discharge+/-8K, contact discharge+/-4K |
|
| surge | Common mode 2K, differential mode 1K | |
| Appearance material | Imported high-quality high-temperature resistant PC material | |
| Appearance color | white | |
| protection grade | IP31 | |

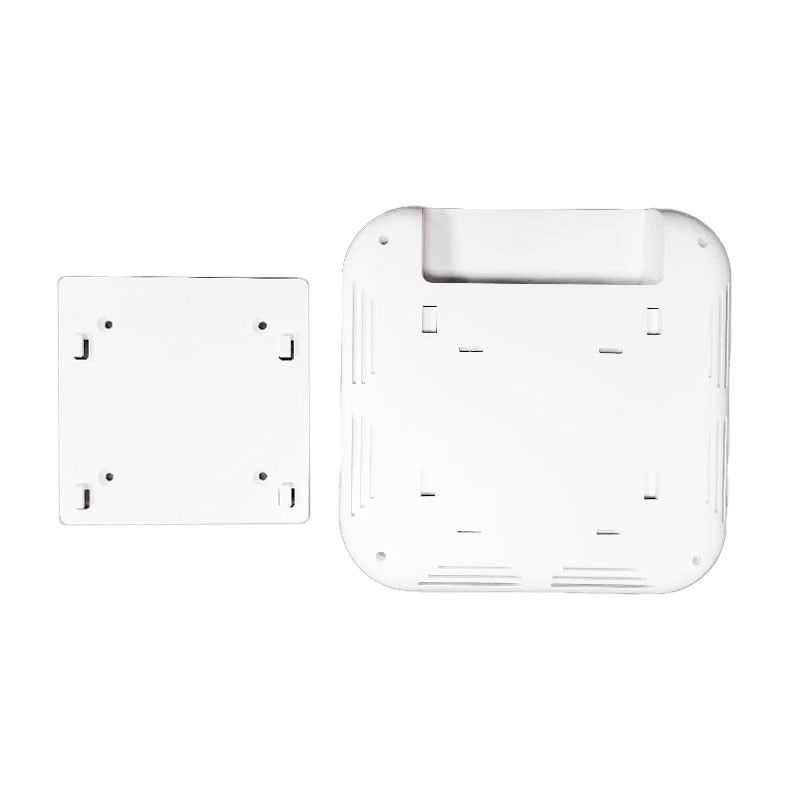

| Installation method | Ceiling mounted installation | |
|
product accessories
|
AX3000 WIFI6 Dual Band Ceiling Mounted Wireless AP * 1 User manual * 1, warranty card * 1, certificate of conformity * 1 |
|
|
Usage environment
|
Working temperature: -10 ℃~55 ℃ Storage temperature: -40 ℃~70 ℃ Working humidity: 10%~90% RH non condensing Storage humidity: 5% -95% RH non condensing |
|
| Software specifications | ||
| Working mode |
Fat and thin in one, Thin AP mode (FIT AP): managed uniformly by the wireless controller (AC) Fat AP mode (FAT AP): independent web page management |
|
| AC unified management |
Support
|
|
|
Wireless function
|
SSID broadcast | Support |
| SSID hide | Support | |
| Chinese SSID | Support | |
| multiple SSID | Support | |
| SSID merge | Support for combining multiple frequency bands of 2.4GHz and 5.8GHz into a common SSID | |
| wireless encryption | WPA,WPA2,WPA-PSK,WPA2-PSK | |
