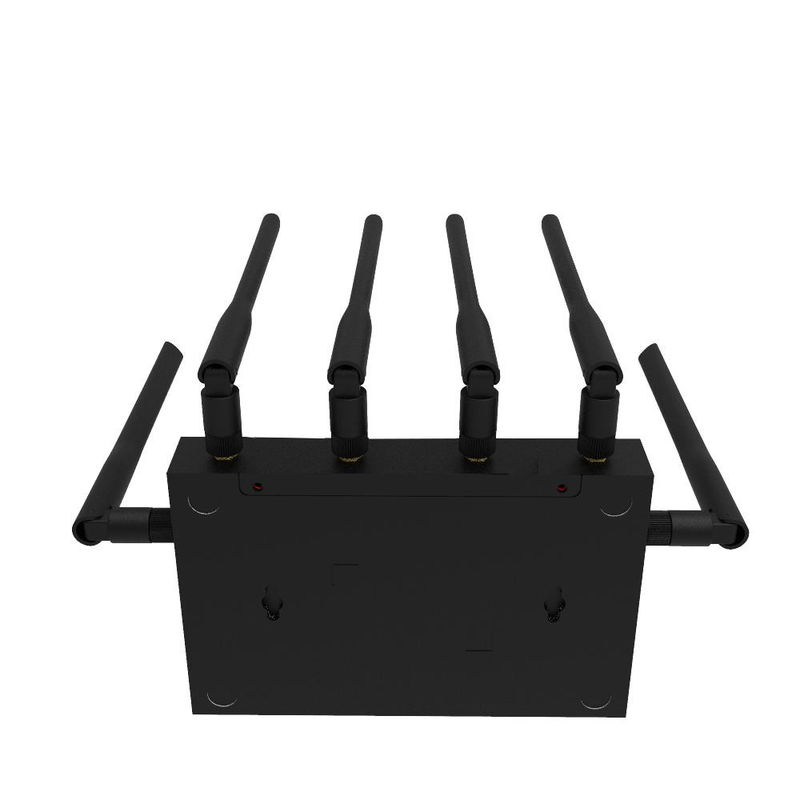

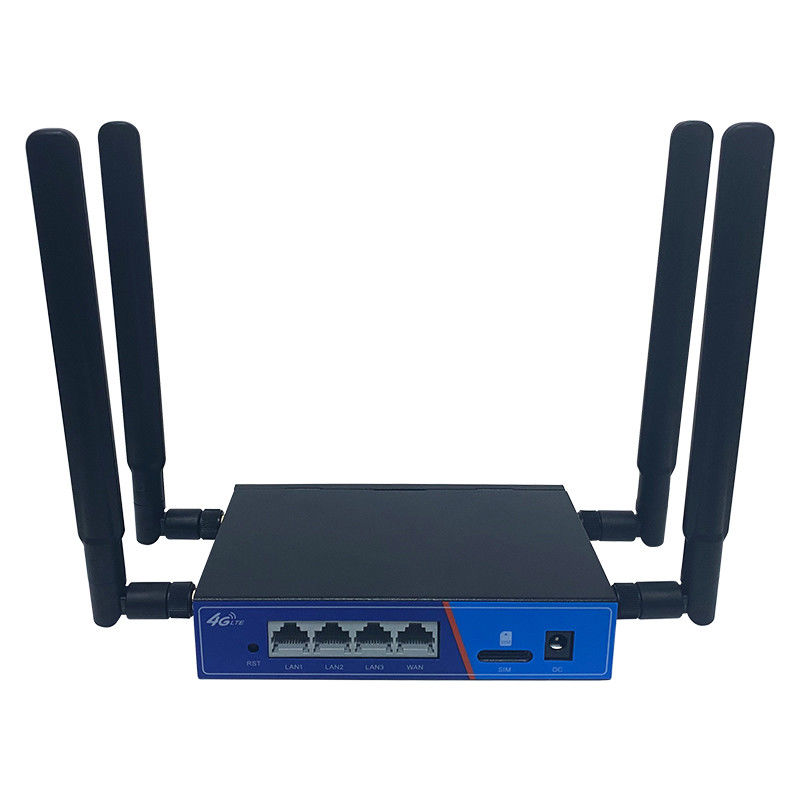

300Mbps WS281 4G Industrial Router MT7628 Openwrt 4g Router With SIM Slot

300Mbps WS281 4g router chip MT7628 Openwrt system 4g wifi router with SIM slot

Product Description

  WS281 is an industrial 4G router product, which accesses the Internet through 4G mobile communication dial-up or 100Mbps WAN port dial-up, and then shares the Internet network through wireless WiFi 4 and 100Mbps wired LAN.

Product Main Features

• Using MT7628 program, MIPS24KEc architecture CPU, main frequency up to 580MHZ
• Main chip integrated baseband 2.4G WIFI rate up to 300Mbps,
• 128MB DDR2 integrated in the main chip, with 16MB Nor Flash
• 1WAN, 3LAN full 100M adaptive network port, support auto flip (Auto MDI/MDIX)
• Support "one key brushing mode", that is, long press the reset button to boot into rescue brushing mode
• Built-in PCIE/LCC chip module, can be used to connect to 4G communication module
• External standard SIM card (large card) interface
• External high gain omni-directional antenna, wireless signal 360 degrees without dead ends
• Automatic reboot of the device when the routing system fails

​Specification

Details Images

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
