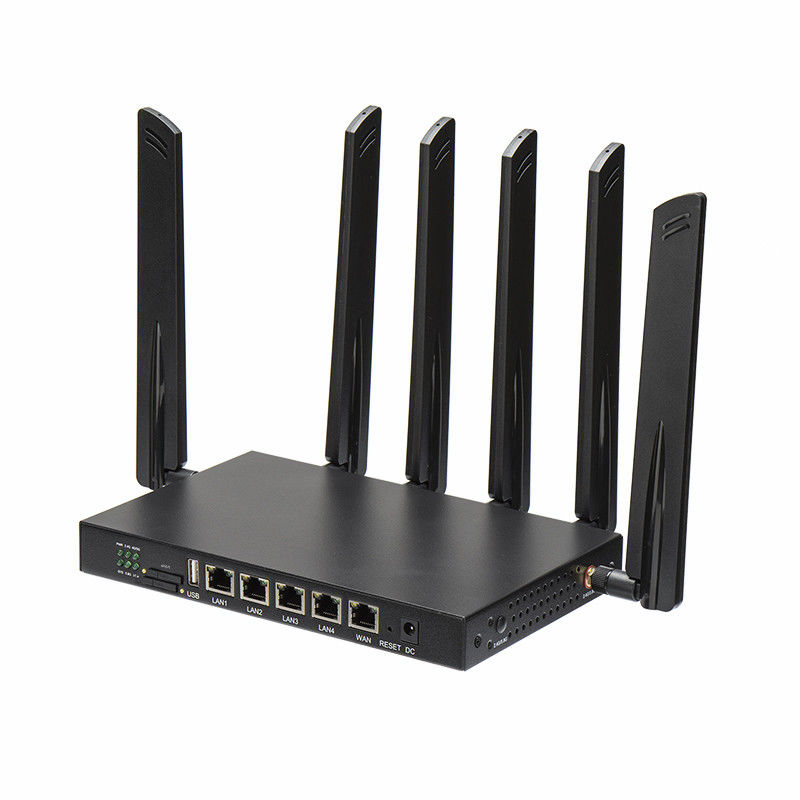

Gigabit WIFI6 Dual Band Router 5g Sim Card Gigabit Port 1800Mbps 4g Router
Product Description
Hardware:
WS7915AX adopts MTK (MediaTek) new dual-core network chip MT7621 program, main frequency up to 880MHz, providing five 10/100/1000M adaptive Ethernet interface, wifi6 chip using the mainstream MT7915DN + MT7905 program, support dual-band 2.4G + 5.8G 11AX protocol; support SIM card slot The wifi6 chip adopts the mainstream MT7915DN+MT7905 solution, supporting dual-band 2.4G+5.8G 11AX protocol; supporting SIM card slots, 1 PCIE card slot design interface for 4G module; 1 M.2_B-KEY (Built-in Micro SIM CARD) for 5G module; built-in TF card.
Wireless.
Compliant with IEEE802.11AX/AC/N/G/B/A wireless network protocol, the highest wireless transmission rate of 1800Mbps; external six 5dBi high-gain omni-directional antennas, with good wireless performance and broader coverage area.
Software:
The original SDK is based on the MTK public SDK and open source OpenWRT developed by the Linux platform; support the secondary development of the SDK.
Product Features:
Specification
Hardware Specifications | |
Main chip |
MT7621/ Dual-core/880Mhz MT7915DN MT7905DN(CPU+AX+5.8G 2.4G) |
RAM | DDR3 RAM 256MB |
FLASH | 16MB |
Protocol standard |
IEEE 802.11AX IEEE 802.11ac,IEEE 802.11a IEEE 802.11n,IEEE 802.11g,IEEE 802.11b; |
Wireless rate | 1800Mbps |
Working frequency | 2.4GHz/5G |
Antenna | 6 * 5dBi Omnidirectional Antenna |
interface |
1 * 10/100M/1000M Adaptive WAN port, support automatic flip (Auto MDI/MDIX) 4 * 10/100M/1000M Adaptive LAN ports, support automatic flip (Auto MDI/MDIX) 1 * USB 2.0 interface 1 * PCIE interface 1 * M2 interface 1 * SIM interfaces 1 * SD interface |
LED | PWR.SYS.2G.5.8G. |
Button | 1*RESET button |
Whether to support POE power supply | NO support |
Product maximum power consumption | < 12W |
power supply | DC 12V3A |
Software Specifications | |
Factory default settings |
IP address:192.168.1.1 User/Password:admin/admin |
Operating mode | AP; ROUTER; |
WAN Access method | PPPoE,dynamic IP,static IP,3G |
DHCP server | DHCP server; Client List; static address assignment; |
virtual server | port forward DMZ host |
support system |
original factory SDK,openwrt, |
Security Settings | Client filtering Mac address filtering URL filtration Remote WEB management |
DDNS | Support |
Bandwidth Control | Support |
static routing | Support |
System log | Support |
WEB theme switch | Support |
Other useful functions |
Mac Address Cloning Configuration file import and export Web software upgrade |
Other | |
working environment |
Working temperature: 0℃ to 40℃; Storage temperature: -40℃ to 70℃; Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |

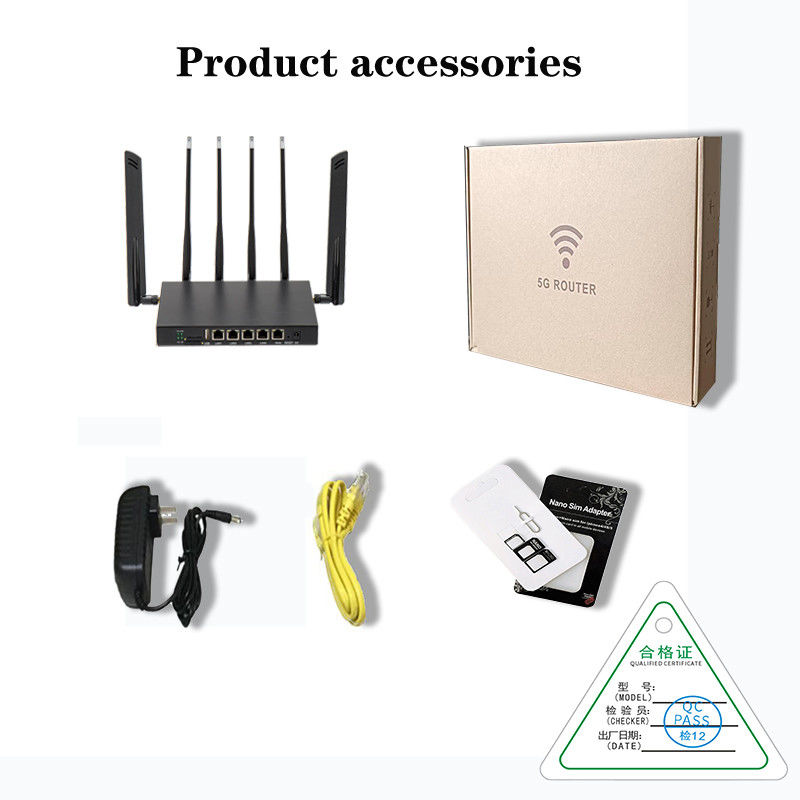

Accessories |
2pcs 5dBi WIFI antenna; 4 5dBi detachable 3G/4G/5G black antennas 1 long 1M round yellow super 5 category network cable; 1 power adapter |
Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
