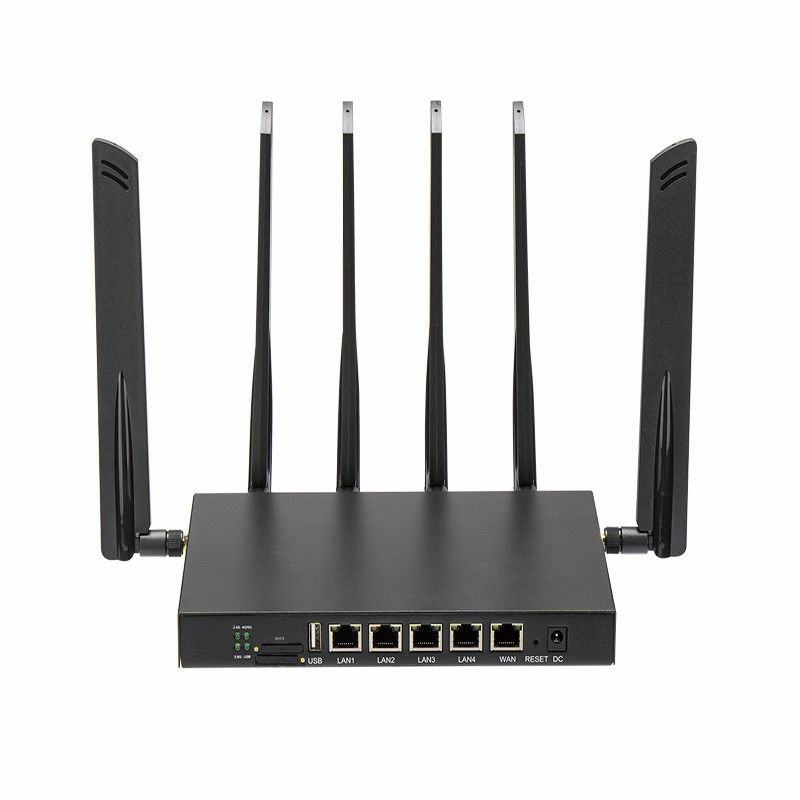

Dual Band 2.4G&5G Openwrt 4g Router M2 Interface Router Wifi6 5g With Sim Card
Product Description
Hardware:
WS7915AX adopts MTK (MediaTek) new dual-core network chip MT7621 program, main frequency up to 880MHz, providing five 10/100/1000M adaptive Ethernet interface, wifi6 chip using the mainstream MT7915DN + MT7905 program, support dual-band 2.4G + 5.8G 11AX protocol; support SIM card slot The wifi6 chip adopts the mainstream MT7915DN+MT7905 solution, supporting dual-band 2.4G+5.8G 11AX protocol; supporting SIM card slots, 1 PCIE card slot design interface for 4G module; 1 M.2_B-KEY (Built-in Micro SIM CARD) for 5G module; built-in TF card.
Wireless.
Compliant with IEEE802.11AX/AC/N/G/B/A wireless network protocol, the highest wireless transmission rate of 1800Mbps; external six 5dBi high-gain omni-directional antennas, with good wireless performance and broader coverage area.
Software:
The original SDK is based on the MTK public SDK and open source OpenWRT developed by the Linux platform; support the secondary development of the SDK.
Product Features:
Specification
Hardware Specifications | |
Main chip |
MT7621/ Dual-core/880Mhz MT7915DN MT7905DN(CPU+AX+5.8G 2.4G) |
RAM | DDR3 RAM 256MB |
FLASH | 16MB |
Protocol standard |
IEEE 802.11AX IEEE 802.11ac,IEEE 802.11a IEEE 802.11n,IEEE 802.11g,IEEE 802.11b; |
Wireless rate | 1800Mbps |
Working frequency | 2.4GHz/5G |
Antenna | 6 * 5dBi Omnidirectional Antenna |
interface |
1 * 10/100M/1000M Adaptive WAN port, support automatic flip (Auto MDI/MDIX) 4 * 10/100M/1000M Adaptive LAN ports, support automatic flip (Auto MDI/MDIX) 1 * USB 2.0 interface 1 * PCIE interface 1 * M2 interface 1 * SIM interfaces 1 * SD interface |
LED | PWR.SYS.2G.5.8G. |
Button | 1*RESET button |
Whether to support POE power supply | NO support |
Product maximum power consumption | < 12W |
power supply | DC 12V3A |
Software Specifications | |
Factory default settings |
IP address:192.168.1.1 User/Password:admin/admin |
Operating mode | AP; ROUTER; |
WAN Access method | PPPoE,dynamic IP,static IP,3G |
DHCP server | DHCP server; Client List; static address assignment; |
virtual server | port forward DMZ host |
support system |
original factory SDK,openwrt, |
Security Settings | Client filtering Mac address filtering URL filtration Remote WEB management |
DDNS | Support |
Bandwidth Control | Support |
static routing | Support |
System log | Support |
WEB theme switch | Support |
Other useful functions |
Mac Address Cloning Configuration file import and export Web software upgrade |
Other | |
working environment |
Working temperature: 0℃ to 40℃; Storage temperature: -40℃ to 70℃; Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
Accessories |
2pcs 5dBi WIFI antenna; 4 5dBi detachable 3G/4G/5G black antennas 1 long 1M round yellow super 5 category network cable; 1 power adapter |

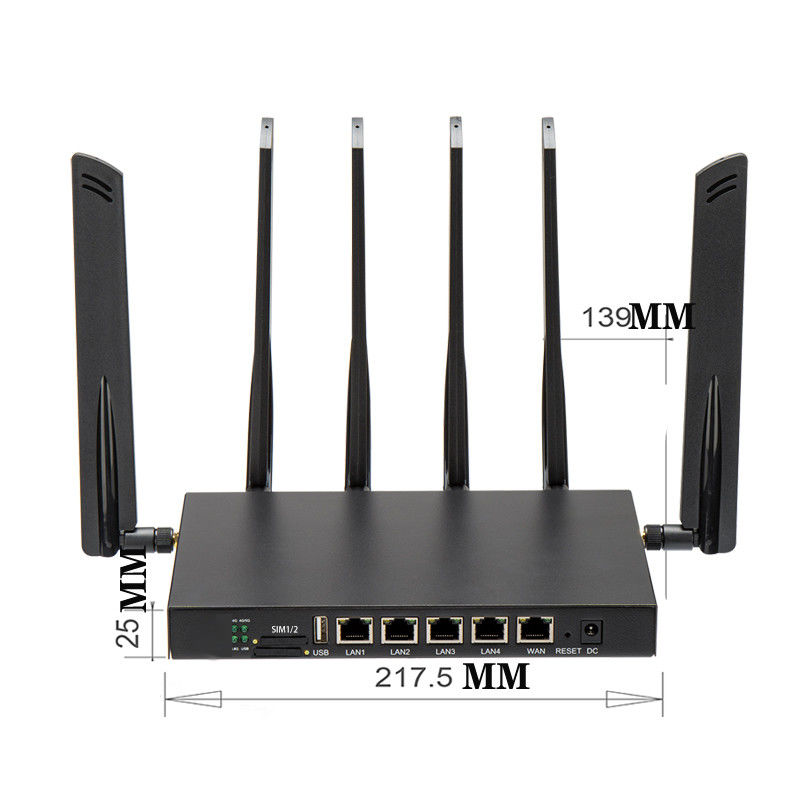

Details Images
