Gigabit Wifi Router 12V DC Power 1800Mbps 5g Router Sim Openwrt Wifi Router 5g
Product Description

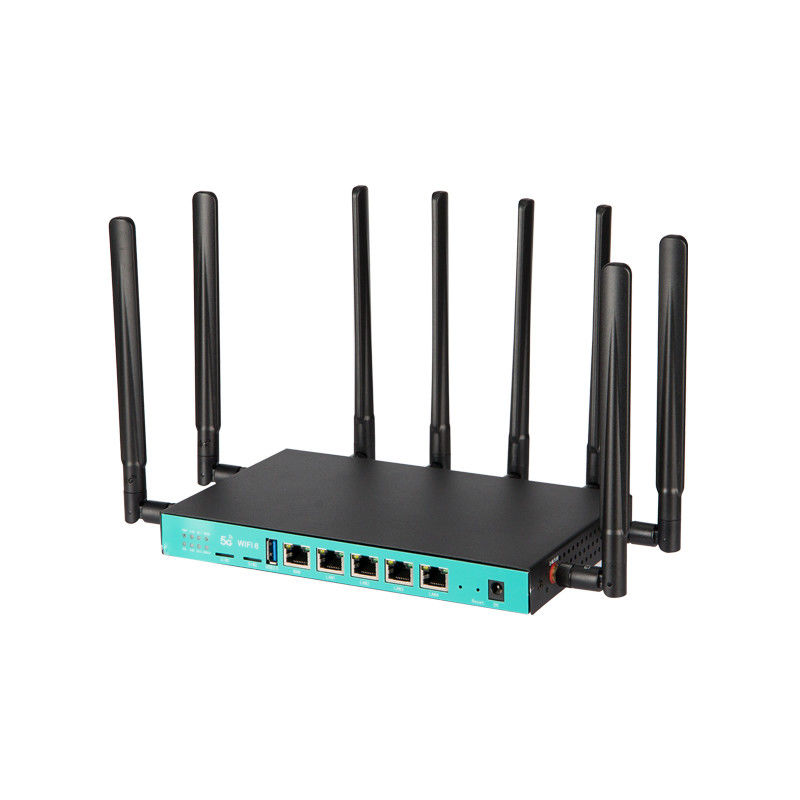

A high-performance industrial-grade 5G WiFi6 router product supporting 802.11ax technology, using MT7621+MT7915+MT7975 high-performance SoC kit, with 16MB flash memory and 256MB memory, industrial-grade circuit design, supporting IEEE802.11a/b/g/n/ ac/ax protocol, work in 2.4G & 5.8G wireless frequency band, and meet the needs of 128 people at the same time wireless high-speed Internet access. Full Gigabit network interface, supports up to 573Mbps wireless access speed in 2.4G 802.11ax mode, supports up to 1201Mbps wireless access speed in 5.8G 802.11ax mode, supports single SIM and dual SIM card modes, supports installation of 4G5G modules , has the characteristics of high performance, high gain, high receiving sensitivity, high bandwidth, high access number, etc., not only can cover a larger range, but also can provide higher wireless transmission performance and stability.
Hardware facilities
Software
Pre-installed OpenWRT or Rooter firmware supports "one-key flash mode", that is, long press the reset button to enter flash mode, which supports secondary development.
Can support the current mainstream M.2 interface modem, such as Quectel EM12 EM20 EM160 R500Q R502Q; Dell DW5821e Fibocom; FM150 and other brands
Specification
WS1688/Hardware Specifications | |
Hardware Specifications |
MT7621A+ MT7975+MT7915 Dual-core WIFI6 DDR3 RAM 256MB SPI FLASH 16MB |
Protocol standard |
2.4G WiFi 2*2 802.11b/g/n/ax(Theoretical maximum speed up to 573Mbps) 5.8G WiFi 2*2 802.11a/n/ac/ax(Theoretical maximum speed up to 1201Mbps) 1024QAM Ultra-high-speed access rate,OFDMA Ultra-high-density user access MU-MIMO/MU-OFDMA Up/Down BSS Color Spatial multiplexing |
Wireless rate | Dual-band concurrency up to 1800Mbps |
Working frequency | 2.4GHz 5.8GHz |
4G5G frequency band | Frequency bands can be customized, support domestic and foreign customization |
Antenna | 2*5dbi high-gain omnidirectional wifi antennas, 6*5dbi high-gain omnidirectional 4G5G antennas (optional) |
interface |
1*10/100M/1000M WAN port,automatic MDI/MDIX 4*10/100M/1000M LAN port,automatic MDI/MDIX 1*USB 3.0 port 2*M.2 2*Nano SIM card slot 1*SD card |
LED | power/2.4G/5.8G/5G-1/5G-2/SYS/USB/Mesh |
Button | 1* Reset button |
Power Adapter | DC 12/2000mA |
Maximum power consumption | < 24W |
Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
