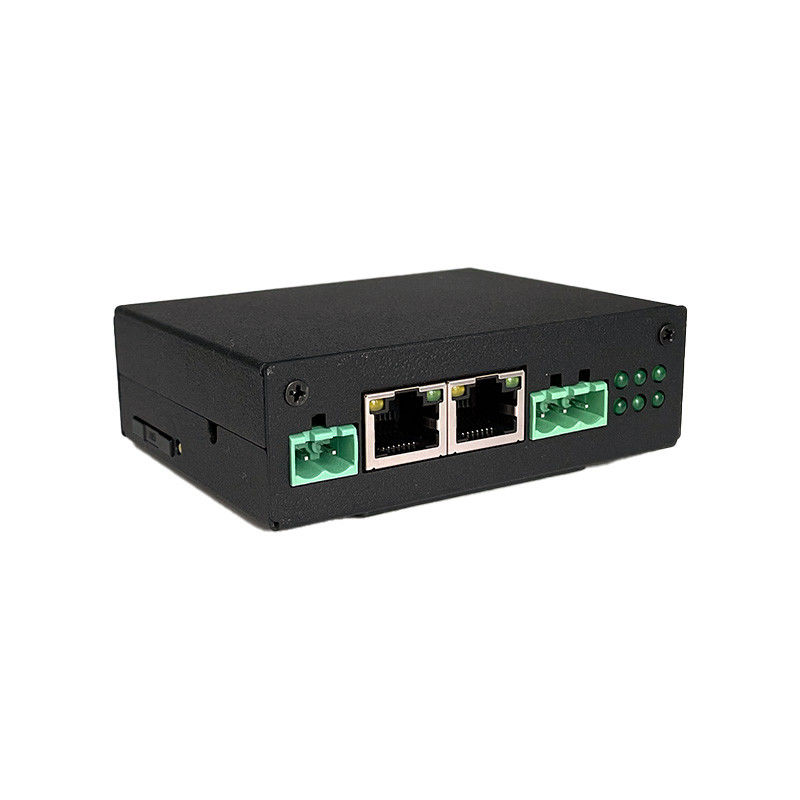

5G Industrial Gateway Mqtt Platform Access 5g Sim Card Router RS485 Serial Port
Product Description
An industrial gateway that can provide 5G mobile communication network, supports serial port to Ethernet, serial port to 5G/4G, has an RS485 serial port, the serial port is isolated by optocoupler, and meets the requirements of industrial site protection level; two 100M Ethernet ports ; Equipped with 5G FRP large suction cup antenna access, the signal is stronger; rich device indicators, serial port transceiver indicators, convenient debugging, equipment operation inspection; power input supports 12V-48V, wide voltage input; sheet metal shell, support rails Buckle installation method; mature hardware and software watchdog mechanism, real-time monitoring of network connection status.
RS485 serial port supports transparent transmission or conversion from Modbus RTU protocol to TCP protocol, TCP protocol, supports MQTT platform access, rich application functions, and one-to-one equipment installation and debugging technical support.
Convenient web management background, function setting is simple and convenient. Rich application functions, small size, support rail installation, bracket installation, suitable for more engineering application scenarios.
Main features
Specification
| product name | 5G Industrial Gateway |

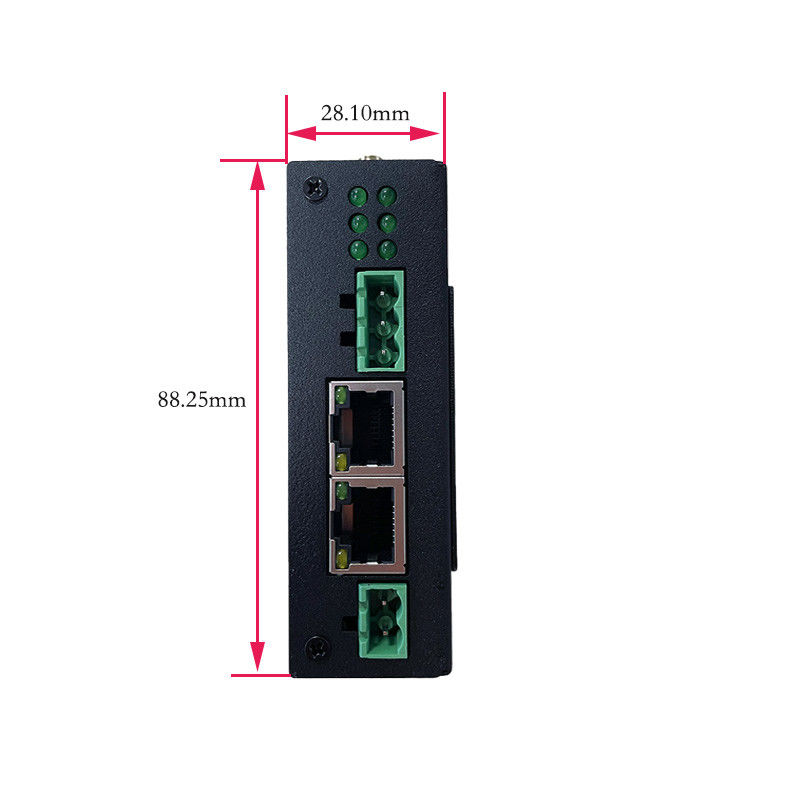

| Product outer dimensions | 104.70mm×75.60mm×28.40mm |
| shell material | metal shell |
| Operating temperature and humidity | -40~75℃ 5%~90%RH no condensation |
| storage temperature humidity | -45~80℃ 5%~90%RH no condensation |
| Installation method | Bracket installation, guide rail buckle installation |
| Device Settings Management | Web browser management backend |
| Shipping list |
11×WS500T device host 4×5GNR sucker antenna 1×Power adapter 1×5.08 3P plug |
| Hardware Specifications | |
| Device frequency | 580MHz |
| interface | 1×Power port 1×RS485 port 2×RJ45 network port 4×5G NR antenna port |
| button | RESET button Long press to restore factory settings |
| power input |
DC 12V~48V input Power interface standard:5.08 pitch 2P terminal |
| RS485 interface |
interface standard:5.08 pitch 3P terminal optocoupler isolation Baud Rate:1200 2400 4800 9600 19200 38400 57600 115200 |
| RJ45 network port | 10/100Mbps auto-adaptive 2 LAN ports |
|
5G module format Qualcomm Platform |
5G NR:n1/n3/n5/n7/n8/n20/n28/n38/n41/n77/n78/n79 LTE:B1/B2/B3/B5/B7/B8/B20/B28/B34/B38/B39/B40/B41/B42/B43* WCDMA:B1/B2/B5/B8 |
|
5G module format UNISOC Zhanrui Platform |
5G NR:n1/n28/n41/n78/n79 LTE:B1/B2/B3/B5/B7/B8/B34/B38/B39/B40/B41 WCDMA:B1/B2/B5/B8 |
| indicator light |
1×Power indicator Power 1×Status indicator Status 1×4G LTE indicator 1×5G NR indicator 1×RS485 serial port sending indicator TX1 1×RS485 serial port receiving indicator RX1 |
| hardware protection | Power supply anti-reverse, anti-surge, ESD protection, anti-static, serial port optocoupler isolation |
| Software Specifications | |
| Manage IP | 192.168.169.1(Default factory IP, can be modified by yourself) |
| username/password | username:admin password:admin |
| Network access method | 5G NR network/4G LTE network |
| Intranet settings | IP address modification, subnet mask setting, DHCP server setting |
| Firewall | Firewall ON/OFF, port forwarding |
| VPN | PPTP,L2TP |
| System Management | Management interface language selection, device reset to factory settings, device firmware upgrade, device restart |
| MQTT TCP application | Function enable/disable, TCP mode selection, TCP IP address, MQTT remote server address, etc. |
| RS485 Serial port settings | Serial port transparent transmission TCP client/server, serial port transparent transmission MQTT client, Modbus RTU to TCP client/server |
Details Images
