RS485 Serial Port 5g Router Industrial Support MQTT Platform Access

RS485 Serial Port 5g Router Industrial Support MQTT Platform Access

  • High Light

    RS485 Serial Port 5g Router Industrial

    ,

    5g Router Industrial MQTT

  • SIM Card Slot
    1 SIM Card Support
  • Power Supply
    DC 12V~48V
  • Function
    FireWall
  • Operating Temperature And Humidity
    -40~75℃
  • Interface
    2 RJ45 Network Port
  • Color
    Black
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    WS500T
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    15*15*6 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

RS485 Serial Port 5g Router Industrial Support MQTT Platform Access

5G Industrial Router RS485 Serial Port 5g Router Support MQTT Platform Access



Product Description



   An industrial gateway that can provide 5G mobile communication network, supports serial port to Ethernet, serial port to 5G/4G, has an RS485 serial port, the serial port is isolated by optocoupler, and meets the requirements of industrial site protection level; two 100M Ethernet ports ; Equipped with 5G FRP large suction cup antenna access, the signal is stronger; rich device indicators, serial port transceiver indicators, convenient debugging, equipment operation inspection; power input supports 12V-48V, wide voltage input; sheet metal shell, support rails Buckle installation method; mature hardware and software watchdog mechanism, real-time monitoring of network connection status.

  RS485 serial port supports transparent transmission or conversion from Modbus RTU protocol to TCP protocol, TCP protocol, supports MQTT  platform access, rich application functions, and one-to-one equipment installation and debugging technical support.

  Convenient web management background, function setting is simple and convenient. Rich application functions, small size, support rail installation, bracket installation, suitable for more engineering application scenarios.



Main features

  • With an RS485 serial port, baud rate 9600-115200
  • With serial port optocoupler isolation, suitable for various complex environments
  • Two 100M Ethernet ports, WAN/LAN switching options, and network port anti-surge protection design. Support one-key reset to factory settings
  • Linux kernel, professional driver, many years of industry experience, stable serial data transmission
  • Support 5G NR/4G LTE/3G network access
  • Web management background, no need to download any software, connect the WiFi cable to open the browser to easily set
  • Support transparent transmission, support MQTT platform access, support PLC remote download
  • Support Modbus RTU to TCP, support Modbus master/slave communication
  • Support protocol customization, can assist customers to access the platform
  • One-to-one customer service, customized on-site solutions for customers based on existing equipment, rapid sample testing



Specification



product name 5G Industrial Gateway
Product outer dimensions 104.70mm×75.60mm×28.40mm
shell material metal shell
Operating temperature and humidity -40~75 5%~90%RH no condensation
storage temperature humidity -45~80 5%~90%RH no condensation

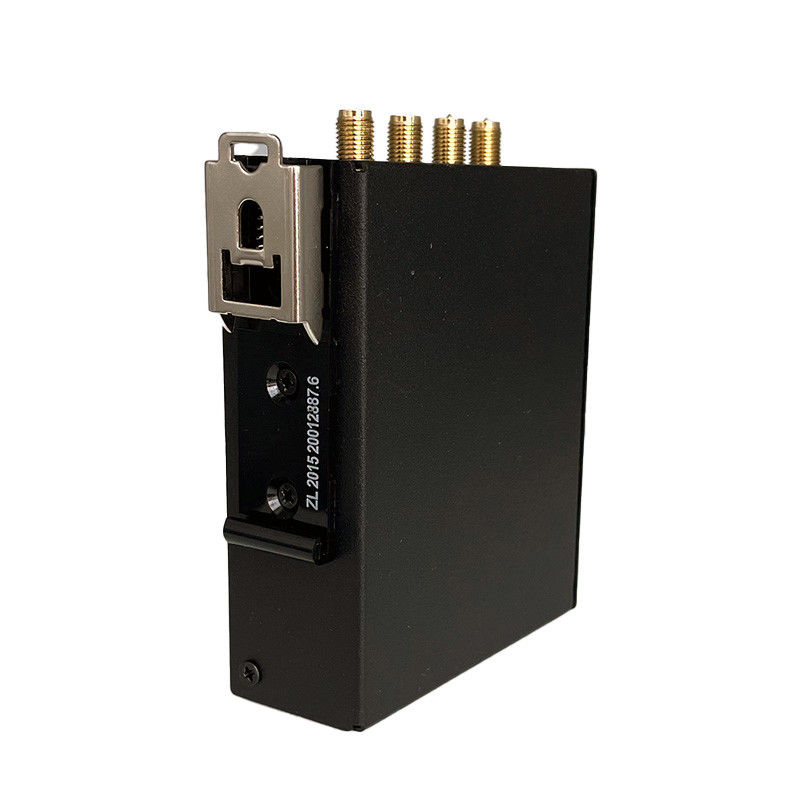

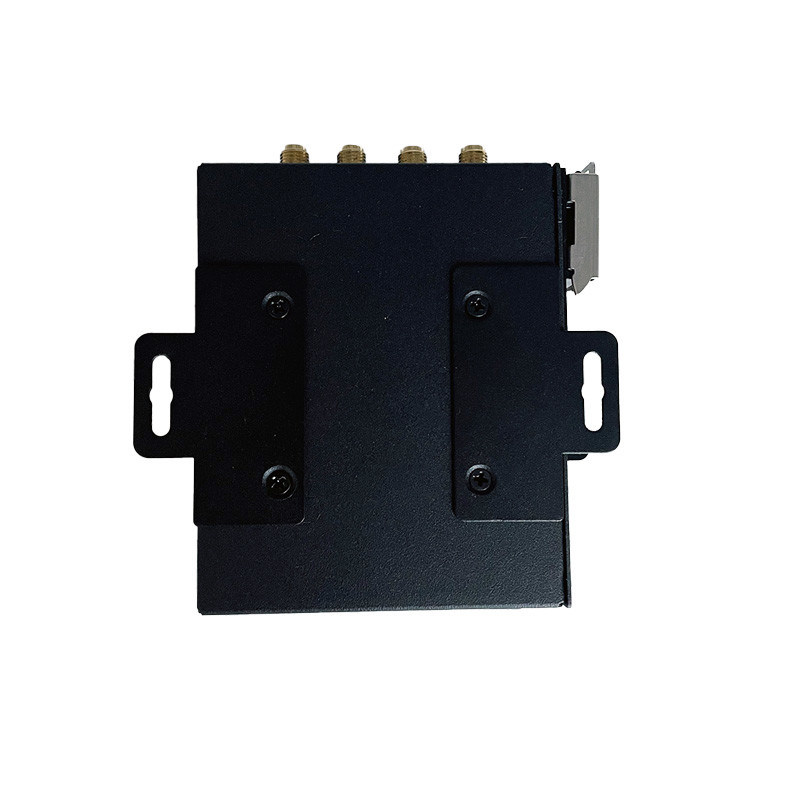

Installation method Bracket installation, guide rail buckle installation
Device Settings Management Web browser management backend
Shipping list

11×WS500T device host 4×5GNR sucker antenna

1×Power adapter 1×5.08 3P plug

Hardware Specifications
Device frequency 580MHz
interface 1×Power port 1×RS485 port 2×RJ45 network port 4×5G NR antenna port
button RESET button Long press to restore factory settings
power input

DC 12V~48V input

Power interface standard:5.08 pitch 2P terminal

RS485 interface

interface standard:5.08 pitch 3P terminal optocoupler isolation

Baud Rate:1200 2400 4800 9600 19200 38400 57600 115200

RJ45 network port 10/100Mbps auto-adaptive 2 LAN ports

5G module format

Qualcomm Platform

5G NR:n1/n3/n5/n7/n8/n20/n28/n38/n41/n77/n78/n79

LTE:B1/B2/B3/B5/B7/B8/B20/B28/B34/B38/B39/B40/B41/B42/B43*

WCDMA:B1/B2/B5/B8

5G module format

UNISOC Zhanrui Platform

5G NR:n1/n28/n41/n78/n79

LTE:B1/B2/B3/B5/B7/B8/B34/B38/B39/B40/B41

WCDMA:B1/B2/B5/B8

indicator light

1×Power indicator Power 1×Status indicator Status 1×4G LTE indicator 1×5G NR indicator

1×RS485 serial port sending indicator TX1 1×RS485 serial port receiving indicator RX1

hardware protection Power supply anti-reverse, anti-surge, ESD protection, anti-static, serial port optocoupler isolation
Software Specifications
Manage IP 192.168.169.1(Default factory IP, can be modified by yourself)
username/password username:admin password:admin
Network access method 5G NR network/4G LTE network
Intranet settings IP address modification, subnet mask setting, DHCP server setting
Firewall Firewall ON/OFF, port forwarding
VPN PPTP,L2TP
System Management Management interface language selection, device reset to factory settings, device firmware upgrade, device restart
MQTT TCP application Function enable/disable, TCP mode selection, TCP IP address, MQTT remote server address, etc.
RS485 Serial port settings Serial port transparent transmission TCP client/server, serial port transparent transmission MQTT client, Modbus RTU to TCP client/server



Details Images

RS485 Serial Port 5g Router Industrial Support MQTT Platform Access 0RS485 Serial Port 5g Router Industrial Support MQTT Platform Access 1RS485 Serial Port 5g Router Industrial Support MQTT Platform Access 2RS485 Serial Port 5g Router Industrial Support MQTT Platform Access 3
