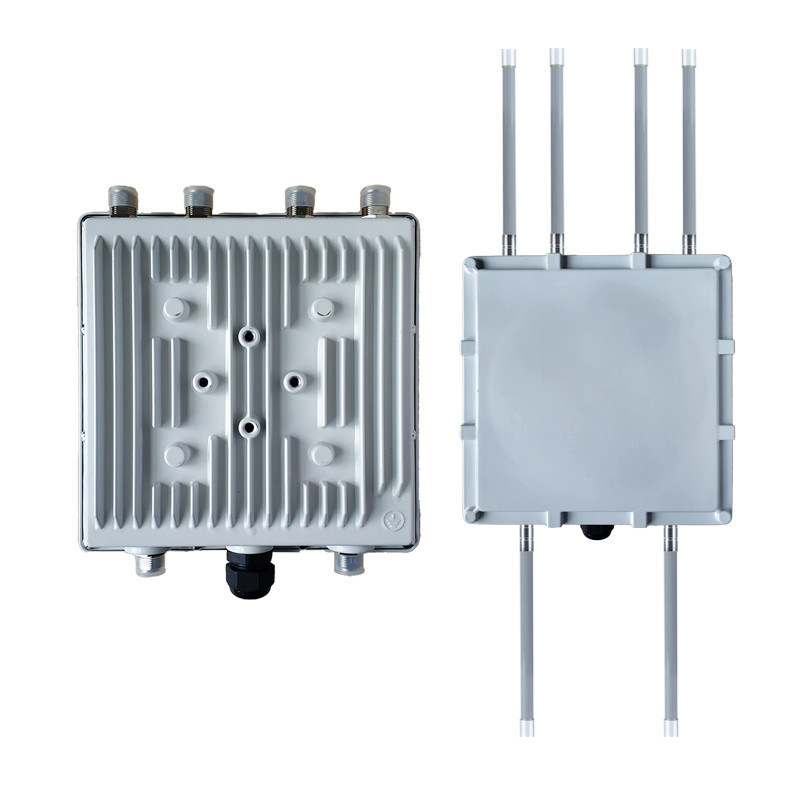

1200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3

1200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3

  • High Light

    1200Mbps Dual Band Outdoor 5g Router

    ,

    Outdoor 5g Router IP66 Waterproof

    ,

    outdoor router 5g 256MB DDR3

  • Buttons
    1*Reset Button
  • Power Supply
    48V PoE
  • Flash
    16 MB
  • RAM
    256MB DDR3
  • SIM Card Slot
    1 SIM Card Support
  • Wireless Speed
    1200Mbps Dual Band Wireless Router
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    WS1209-H
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    38*32*11 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,,Paypal
  • Supply Ability
    1000PCS/45 days

1200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3

1200Mbps Dual Band Unlock 5g Router POE Power Waterproof Outdoor 5g Router



Product Description

  The WS1209-H outdoor 5G gateway base station is based on our independent technology research and development. It belongs to the hardware product category of distributed self-organizing network system solutions. It has a 5G industrial host with high speed, large connection, wide coverage, low latency, and high reliability. This product supports 5G, Ethernet, WiFi, wireless spread spectrum communication and other network access; at the same time, it has strong real-time data edge computing capabilities, open system design, and supports secondary development; it adopts chips, devices, housing design, etc. Full industrial-grade housing waterproof design, with waterproof casing protection grade up to IP66, supports ceiling, wall, pole-mounted installation, can be adapted to a variety of industrial sites such as indoor and outdoor, widely used in smart factories, smart medical, unmanned vehicles, Smart cities and other fields.



Shell characteristics

  • All-metal aluminum alloy is integrally formed, explosion-proof, waterproof, and corrosion-proof. The waterproof level supports IP66 waterproof level
  • 5 external N-type industrial-grade WiFi antenna interfaces, adapt to different antenna types according to the needs of the scene,8DBi high gain fiberglass antenna
  • The power, internet, 4G/5G instructions are clear at a glance.
  • External waterproof grade Gigabit Ethernet LAN port.





WiFi Datasheet

WiFi 1200Mbps(802.11AC)

  • Working Radio: #1: 300Mbps @ 2.4GHz; #2: 900Mbps @ 5.1-5.8GHz
  • Coding Technology:1024-QAM / OFDMA
  • Peak Connections:>500+ Clients
  • Wi-Fi Standard Conformance:WiFi 802.11ac / 802.11n backward

Data Switching

  • Mobile 4G/5G Connection (Support APN)
  • Giga Ethernet Connection
  • 2.4G/5Ghz WiFi
  • Advanced Firewall
  • MAC Filter
  • WiFi Sercurity
  • VPN Passthrough and VPN Client (L2TP PPTP)
  • IPV4/IPV6
  • WEB / APP Mangement
  • Firmware upgrade

Hardware Specification

  • CPU:MT7621
  • Memory:16MB + 256MB DDR3
  • Ethernet:1*1Gbps WAN,2*LAN 1Gbps
  • 1* SIM Slot
  • Reset button
  • LED Indicator : 4G5G Status, Power Status, 2.4G LED, 5.8G LED
  • Power Consumption:<24W
  • DC Power Supply: 15V POE or 48V POE
  • Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
  • Humidity:5%~95%

Specification



Model WS1209-H

CPU MT7621

Flash 16MB + 256MB Fl

WiFi Frequency band 2.4G&5G

WiFi 2.4G:802.11b/g/n 5.8GHz:802.11a/n/ac MIMO

WiFi rate 2.4GHz :300Mbps ,5GHz :900Mbps

5G Standard 3GPP Release 15 NSA/SA operation, Sub-6 GHz

5G Networking method NSA/SA

  5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
5G/4G rate 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)
  LTE : Down 1.0 Gbps;UP 200 Mbps

  5G NR NSA
  n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
  5G NR SA
5GFrequency band n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
MIMO

  Down:4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79
  UP:2 × 2 MIMO on n41

  LTE Category
  Down Cat 16/ UP Cat 18
  LTE-FDD
  B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
  LTE-TDD
  B34/B38/B39/B40/B41/B42/B43/B48
4GFrequency band LAA
  B46(Only supports 2 × 2 MIMO)
  Down 4 × 4 MIMO
  B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66
  WCDMA
  B1/B2/B3/B4/B5/B6/B8/B19

  5G:
Modulation mode GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM
  WIFI:
  1024-QAM/OFDMA





Details Images

1200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3 01200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3 11200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3 21200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3 31200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3 4



FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
