AX1800 5G Wifi 6 Router 1800Mbps 5g Wireless Router MT7621A Chipset

AX1800 5G Wifi 6 Router 1800Mbps 5g Wireless Router MT7621A Chipset

  • High Light

    AX1800 5G Wifi 6 Router


    5G Wifi 6 Router 1800Mbps


    5g Wireless Router MT7621A Chipset

  • Chipset
  • WIFI
    802.11 A/b/g/n/ac/ax
  • User
    128 Wireless Users
  • System
    Linux. OpenWRT Version
  • Wireless Speed
  • Interface
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 piece
  • Price
  • Packaging Details
    28*28*6 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

AX1800 5G Wifi 6 Router 1800Mbps 5g Wireless Router MT7621A Chipset

Router 5g Wifi 6 AX1800 5-Core Wifi Signal Amplifier 5g Wireless Router


Product Description

   Ma220 is a high-performance enterprise WiFi 6 router product supporting 802.11ax technology. It works in 2.4G & 5.8G wireless frequency band and meets the needs of 128 people accessing the Internet wirelessly at high speed at the same time. Full gigabit network interface, 2.4G 802.11ax mode can support up to 573mbps wireless access speed, 5.8G 802.11ax mode can support up to 1201mbps wireless access speed. With the characteristics of high performance, high gain, high receiving sensitivity, high bandwidth and high access number, it can not only cover a wider range, but also provide higher wireless transmission performance and stability. Fashionable appearance design, simple and convenient installation, it is the best choice for wireless access in high-density environment such as home, shop, restaurant and enterprise.



High performance hardware configuration
  It adopts mt7621 + mt7905 + mt7975 high performance SOC suite, with 16MB flash memory and 256MB memory, industrial grade circuit design, supports ieee802.11a/b/g/n/ac/ax protocol, and can provide 2.4G 573mbps + 5.8G 1201mbps wireless access speed and 1000Mbps Ethernet switching processing speed. The whole machine can provide up to 1800mbps wireless access speed. Ultra high speed wireless makes performance no longer a bottleneck. Enhanced cooling and air duct optimization make the hot summer no longer cause downtime, fully guarantee the real-time, long-term, stable and efficient transmission of user network data, and improve the user experience.


Combined with the hardware and software optimization of Hnat, the wired bidirectional forwarding performance can reach 2gbps, which greatly improves the data forwarding ability of the device, ensures the real-time linear forwarding of user data, reduces the network delay, and improves the network transmission efficiency and user experience.


It adopts dual channel and dual band design, 2.4G & 5.8G adopt the latest WiFi wireless standard - 802.3ax protocol, the maximum connection rate of 2.4G wireless band can reach 573mbps, and the maximum connection rate of 5.8G band can reach 1201mbps; when dual band is turned on at the same time, it can provide 1800mbps wireless access speed, providing ultra high speed wireless experience.



  The OFDMA function of 802.11ax protocol is supported. The channel is divided into several narrower subchannels, and each user occupies one or more subchannels according to the number of users. Automatic detection of wireless environment and channel scheduling can make multiple users receive and send packets at the same time, reduce the competition and backoff between users when using air port, reduce network delay, and improve network transmission efficiency and user experience.




Product parameters
Main chip MT7621A+MT7905DAN+MT7975DN
Main frequency Dual core four thread 880MHz
Wireless technology

2.4G WiFi 2 * 2 802.11b/g/n/ax (theoretical maximum speed up to 573mbps)

5.8G WiFi 2 * 2 802.11a/n/ac/ax (theoretical maximum speed up to 1201mbps)

1024qam ultra high speed access rate, OFDMA ultra high density user access

MU-MIMO / mu-ofdma uplink / downlink

BSS color space reuse

Space time block code (STBC), low density parity check (LDPC), beamformer TX / RX

Energy saving: single antenna standby technology, dynamic MIMO power saving technology, enhanced automatic power saving transmission technology, packet by packet power control technology, etc

Memory 256MB DDR3 RAM
Flash 16MB
network interface 4*10/100/1000Mbps,1WAN+3LAN

1 * reset button, long press for 6 seconds to restart, long press for more than 6 seconds to restore factory settings

1 * power button to control the power switch of the equipment

1 * WPS button for easy interconnection without password

indicator light System status indicator
Power Supply DC 12V 1A,﹤12W
work environment

Temperature: - 40 ℃ ~ + 55 ℃ (working), - 40 ℃ ~ + 70 ℃ (storage)

Humidity (non condensing): 5% - 90% (working), 5% - 95% (storage)


2 external 2.4G high gain 5dBi omnidirectional antennas * 2

2 external 5.8G high gain 5dBi omnidirectional antennas * 2


Details Images

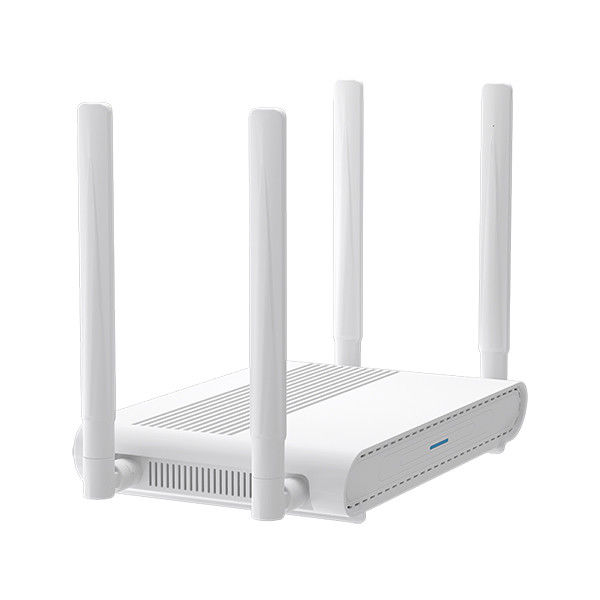

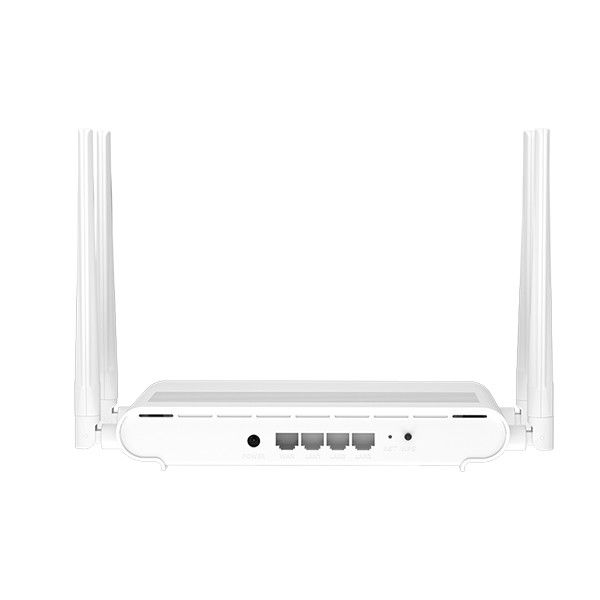

AX1800 5G Wifi 6 Router 1800Mbps 5g Wireless Router MT7621A Chipset 0AX1800 5G Wifi 6 Router 1800Mbps 5g Wireless Router MT7621A Chipset 1AX1800 5G Wifi 6 Router 1800Mbps 5g Wireless Router MT7621A Chipset 2



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
