Unmanaged Intelligent PoE Switch 7 Gigabit Ports POE Power Fiber Optic Switch
Product Description

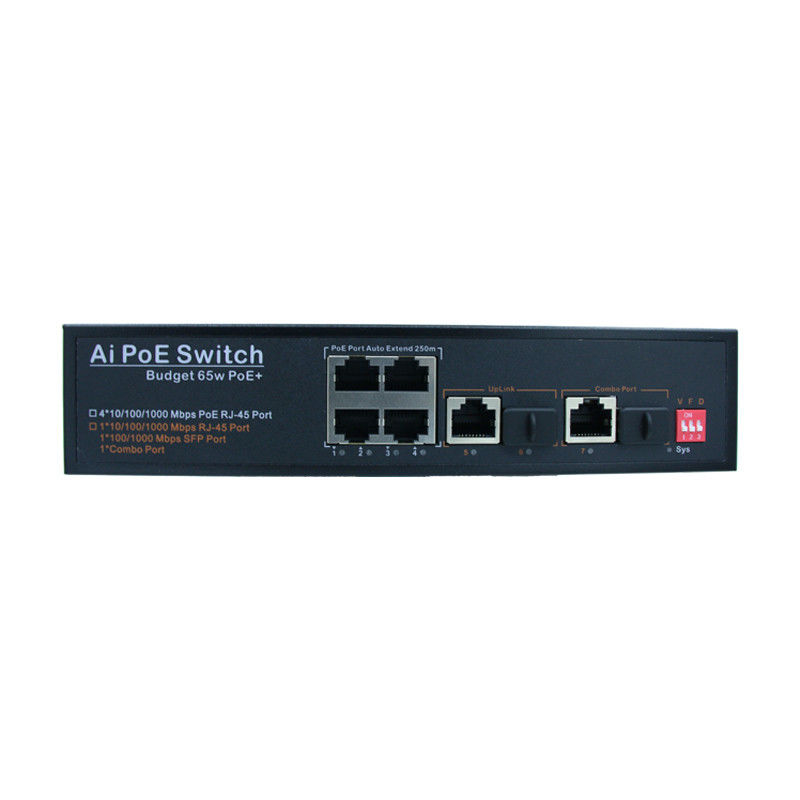

CX-S403G fiber optic switch is an unmanaged intelligent PoE switch, 4 Gigabit PoE ports + 1 Gigabit uplink network port + 1 Gigabit uplink SFP + 1 Gigabit Combo, of which 1-4 ports support IEEE 802.3 af/at standard PoE power supply, single port PoE power up to 30W, and the PoE port can automatically detect and identify powered devices that meet the IEEE 802.3af/at standard and supply power to them through the network cable, non-POE devices intelligently detect no power supply and only transmit data.
VLAN: port isolation mode, 1-4 ports realize monitoring network downlink ports are isolated from each other, communicate with uplink ports, effectively suppress broadcast storms, and protect intranet security.
PoE forced power supply: ports 3~4 become forced power supply mode, the power of a single port can reach 30W, and when the power of a single port exceeds 30W, the power supply of the port will be automatically cut off, and the power supply will be automatically restored after the port overload is removed.
AI watchdog: PoE watchdog mode, 1-4 power supply ports support PoE watchdog function, when port communication fails, the corresponding port PoE will automatically restart, reducing on-site maintenance costs.
Specification
| Technical Parameters | |
| port characteristics | |
| fixed port |
4*10/100/1000Base-T/TX PoE ports (Data/Power) 1*10/100/1000Base-T/TX Uplink RJ45 ports (Data) 1*100/1000Base-X uplink SFP fiber slot ports (Data) 1*100/1000Base combo ports (Data) |
| Network port characteristics | 10/100Base–T(X) 10/100/1000 Base-T Automatic detection, full/half duplex MDI/MDI-X adaptive |
| Network protocol |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3x |
| Backplane Bandwidth | 14 Gbps |
| packet forwarding rate | 10.416Mpps |
| packet forwarding cache | 1M |
| MAC address table | 4K |
| forwarding mode | Store and Forward |
| Twisted pair transmission |
10BASE-T: Cat5 UTP (≤250 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5 or later UTP (≤100 meter) |
| LED indicator | Running indicator: Sys (green); Network indicator: Link (green) |
| Special feature | |
|
Function switch (customizable)
|
SW1: VLAN |
| SW2: Force Output | |
| SW3: Watchdog | |
| PoE and Power Characteristics | |
| PoE power supply standard | 1-4 ports support IEEE802.3af/at standard PoE power supply |
| PoE power supply pin | 1/2(+),3/6(-) |
| PoE maximum single port/average power | AT-30W / AF-15.4W |
| total power | 65W |
| Overall power consumption | Standby power consumption: <3W; full load power consumption: <65W |
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
