IP30 Unmanaged POE Switch 4 PoE Ports 1 SFP 1 Network Port 1 Combo

IP30 Unmanaged POE Switch 4 PoE Ports 1 SFP 1 Network Port 1 Combo

  • High Light

    IP30 Unmanaged POE Switch

    ,

    Unmanaged POE Switch 1 SFP

    ,

    unmanaged poe+ switch 4 PoE

  • Packet Forwarding Cache
    1M
  • PoE Power Supply Standard
    1-4 Ports Support IEEE802.3af/at Standard PoE Power Supply
  • Total Power
    65W
  • Protection Class
    IP30
  • Power Input Voltage
    AC 100~240V 50/60Hz
  • Power Output Power
    52V/1.25A
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    CX-S403G
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    24*18*6 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

IP30 Unmanaged POE Switch 4 PoE Ports 1 SFP 1 Network Port 1 Combo

Industrial Unmanaged POE Switch 4 PoE Ports 1 SFP 1 Network Port 1 Combo



Product Description

    CX-S403G fiber optic switch is an unmanaged intelligent PoE switch, 4 Gigabit PoE ports + 1 Gigabit uplink network port + 1 Gigabit uplink SFP + 1 Gigabit Combo, of which 1-4 ports support IEEE 802.3 af/at standard PoE power supply, single port PoE power up to 30W, and the PoE port can automatically detect and identify powered devices that meet the IEEE 802.3af/at standard and supply power to them through the network cable, non-POE devices intelligently detect no power supply and only transmit data.

   It can supply power to PoE terminal equipment such as IP phones, network cameras, wireless APs, video intercoms, and smart homes through network cables. It is suitable for hotels, schools, factory dormitories, and small and medium-sized enterprises to form cost-effective networks.
   PoE technology (Power over Ethernet) is Power over Ethernet technology, which refers to providing DC power supply for some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.) while transmitting data signals. technology, these devices that receive DC power are called powered devices

Features
  • 4 Gigabit PoE ports + 1 Gigabit uplink network port + 1 Gigabit uplink SFP + 1 Gigabit Combo
  • Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE802.3ab standards
  • Ethernet port supports 10/100/1000M adaptive
  • Flow control mode: Full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
  • Store-and-forward switching mechanism
  • Comply with IEEE 802.3af/at PoE power supply standard
  • Three-speed intelligent dial switch (switch function can be customized) :

  VLAN: port isolation mode, 1-4 ports realize monitoring network downlink ports are isolated from each other, communicate with uplink ports, effectively suppress broadcast storms, and protect intranet security.
  PoE forced power supply: ports 3~4 become forced power supply mode, the power of a single port can reach 30W, and when the power of a single port exceeds 30W, the power supply of the port will be automatically cut off, and the power supply will be automatically restored after the port overload is removed.
  AI watchdog: PoE watchdog mode, 1-4 power supply ports support PoE watchdog function, when port communication fails, the corresponding port PoE will automatically restart, reducing on-site maintenance costs.





  • The PoE port supports a priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is given priority to avoid overloading of the device.
  • Ports 1~4 support AI recognition of long distances. When the cable length is less than 100 meters, the default rate is 1000M. When the cable length is greater than 100 meters, the corresponding port rate is automatically reduced to 10M. The PoE power supply and data transmission distance can be extended to 250 meters

Specification



Technical Parameters
port characteristics
fixed port

4*10/100/1000Base-T/TX PoE ports (Data/Power)

1*10/100/1000Base-T/TX Uplink RJ45 ports (Data)

1*100/1000Base-X uplink SFP fiber slot ports (Data)

1*100/1000Base combo ports (Data)

Network port characteristics 10/100Base–T(X) 10/100/1000 Base-T Automatic detection, full/half duplex MDI/MDI-X adaptive
Network protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX;

IEEE802.3ab 1000Base-T;

IEEE802.3x

Backplane Bandwidth 14 Gbps
packet forwarding rate 10.416Mpps
packet forwarding cache 1M
MAC address table 4K
forwarding mode Store and Forward
Twisted pair transmission

10BASE-T: Cat5 UTP (≤250 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-T: Cat5 or later UTP (≤100 meter)

LED indicator Running indicator: Sys (green); Network indicator: Link (green)
Special feature

Function switch (customizable)



SW1: VLAN
SW2: Force Output
SW3: Watchdog
PoE and Power Characteristics
PoE power supply standard 1-4 ports support IEEE802.3af/at standard PoE power supply
PoE power supply pin 1/2(+),3/6(-)
PoE maximum single port/average power AT-30W / AF-15.4W
total power 65W
Overall power consumption Standby power consumption: <3W; full load power consumption: <65W





Details Images

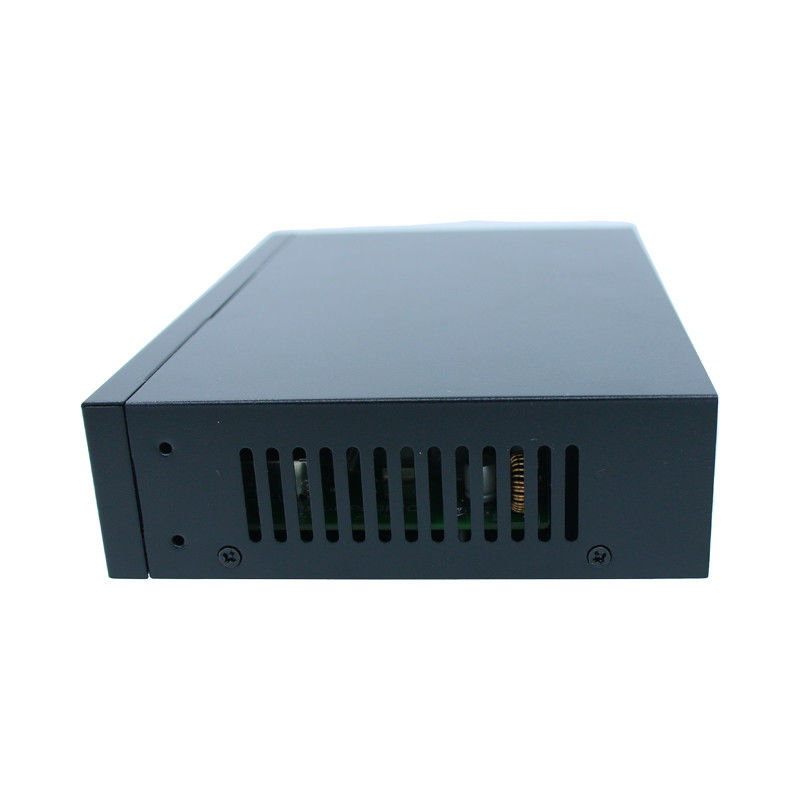

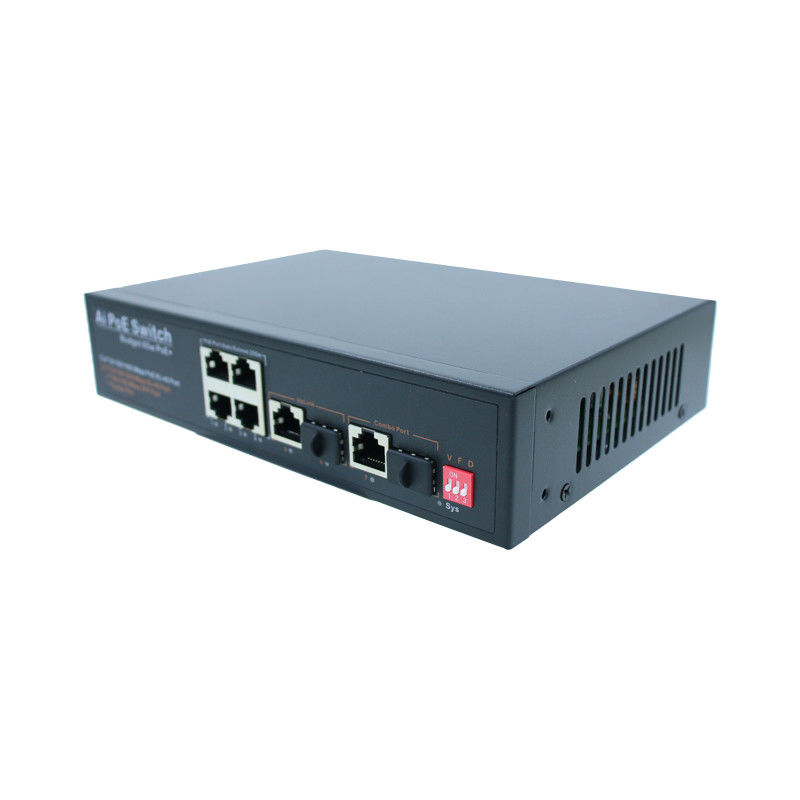

IP30 Unmanaged POE Switch 4 PoE Ports 1 SFP 1 Network Port 1 Combo 0IP30 Unmanaged POE Switch 4 PoE Ports 1 SFP 1 Network Port 1 Combo 1IP30 Unmanaged POE Switch 4 PoE Ports 1 SFP 1 Network Port 1 Combo 2IP30 Unmanaged POE Switch 4 PoE Ports 1 SFP 1 Network Port 1 Combo 3
