Chip MTK7621A Dual Band 4G Router 2 Gigabit Ethernet Port 4G LTE Wifi Router

Chip MTK7621A Dual Band 4G Router 2 Gigabit Ethernet Port 4G LTE Wifi Router

  • High Light

    MTK7621A Dual Band 4G Router

    ,

    Wireless Dual Band 4G Router

    ,

    FCC 4G LTE Wifi Router

  • Chipset
    MTK7621A
  • Antenna
    Built-in Antenna
  • WIFI
    802.11 B/g/n/ac
  • SIM Card Slot
    1 SIM Card Support
  • Flash
    16MB
  • RAM
    DDR3 64 MB
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    HR204
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    17*15*6 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

Chip MTK7621A Dual Band 4G Router 2 Gigabit Ethernet Port 4G LTE Wifi Router

Dual Band 4g Router Chip MTK7621A 2 Gigabit Ethernet Port Wifi Router 4g Lte



Product Description

  HUASIFEI HR204 wireless router is a wireless communication product developed based on 4G network requirements. Support 4G LTE global frequency band. Support 4G LTE CAT 6 or CAT 12 high speed access to the Internet. It can realize the maximum downlink bandwidth of 300Mbps~600Mbps and the maximum uplink bandwidth of 50Mbps~150Mbps. It supports 2 Gigabit Ethernet ports, providing stable and high-speed wireless broadband access for home and business users. Support for WIFI 2.4GHz/5GHz dual-band function to meet the access and sharing needs of more than 60 users' WIFI hotspots.



Product features

  • Power supply. DC +12V/1.5A .
  • Supports 2*2 MIMO or 4*4 MIMO internal antenna or external antenna.
  • Wireless Mobile Broadband 3G / 4G LTE connection. Support 3G/4G LTE global frequency bands.
  • System crashes and automatically recovers. The system automatically maintains the data link and is permanently online.
  • Supports Multiple VPN tunnels for data encryption .
  • Simple and beautiful, fashionable shell.

Easy to use and easy maintenance

  • User friendly web interface for user interaction.
  • Supports Remote Management Platform.
  • Supports local web UI and remote FOTA update firmware.

Operating system
Built-in OpenWRT 18.06 operating system. Support user secondary application development.



Specification

Cellular feature

3G/4G LTE

data connectivity

It provides data connectivity on LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks.

3G/4G LTE

Frequency bands

Version E.

LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32

LTE-TDD: B38/B40/B41/B42(Optional) /B43(Optional)

WCDMA: B1/B3/B5/B8

Verison A.

LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71

LTE-TDD: B41/B48

Version LA.

LTE-FDD: B2/B4/B5/B7/B8/B28/B66

LTE-TDD: B42(Optional) /B43(Optional)

WCDMA: B2/B4/B5/B8



Remarks. More Bands Demands please contact with us.

3G/4G LTE Data rates

4G LTE--CAT 6

LTE-FDD Max 300M(DL) , Max 50Mbps (UL)

LTE-TDD Max 226M (DL) , Max 28Mbps (UL).



4G LTE-CAT 12

LTE-FDD. Max 600Mbps (DL),Max 150Mbps (UL) .

LTE-TDD. Max 430Mbps (DL),Max 90Mbps (UL).



HSPA+.

DL 42Mbps, UL 11.2Mbps.



WCDMA.

DL 384Kbps, UL 384Kbps

3G/4G LTE

Transmitting Power

Class 3 (23 dBm±2 dB) for LTE-TDD bands

Class 3 (23 dBm±2 dB) for LTE-FDD bands

Class 3 (24 dBm+ 1/-3 dB) for WCDMA bands



LTE features

CAT 6 version.

Supports 3GPP Rel-12 CAT 6 FDD and TDD

Supports uplink QPSK and 16 QAM modulation.

Supports downlink QPSK , 16 QAM and 64 QAM.

Supports 1.4MHz to 40MHz (2 CA) RF bandwidth.



CAT 12 version.

Supports 3GPPRel-12 CAT 12 FDD and TDD.

Supports uplink QPSK ,16 QAM and 64 QAM modulation.

Supports downlink QPSK , 16 QAM ,64 QAM and 256 QAM.

Supports 1.4MHz to 60MHz (3 CA) RF bandwidth.

UMTS features

Supports 3GPP Rel-9 DC-HSDPA,DC-HSUPA,HSPA+,HSDPA,HSUPA and WACDMA

Supports QPSK ,16 QAM and 64 QAM modulation.

Antennas Supports 2*2 MIMO or 4*4 MIMO internal antenna or external antenna with 50 Ω impedance.
SIM card feature
SIM card Supports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional )

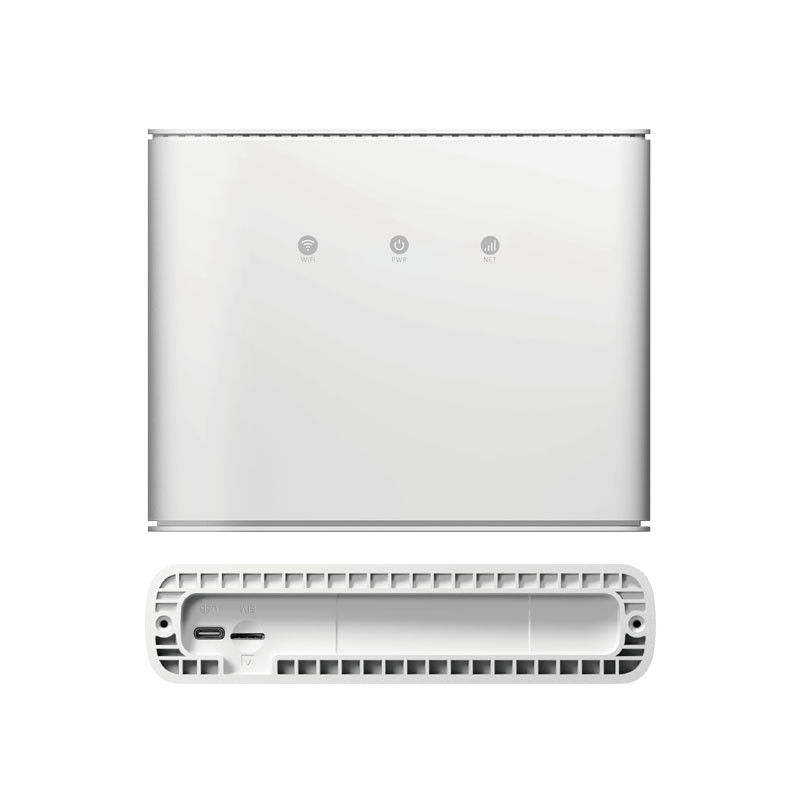

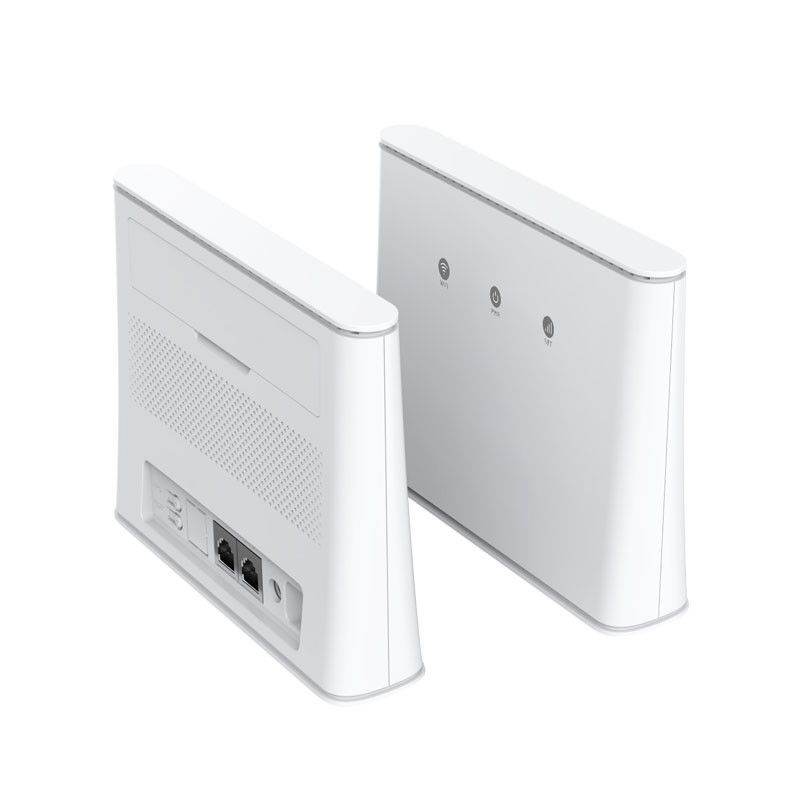

Details Images

Chip MTK7621A Dual Band 4G Router 2 Gigabit Ethernet Port 4G LTE Wifi Router 0Chip MTK7621A Dual Band 4G Router 2 Gigabit Ethernet Port 4G LTE Wifi Router 1Chip MTK7621A Dual Band 4G Router 2 Gigabit Ethernet Port 4G LTE Wifi Router 2Chip MTK7621A Dual Band 4G Router 2 Gigabit Ethernet Port 4G LTE Wifi Router 3Chip MTK7621A Dual Band 4G Router 2 Gigabit Ethernet Port 4G LTE Wifi Router 4



FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
