Dual Band Routers 5g PCBA Can Use The L850 L860 Module Duabl Core 4g Router
Product Description
WS1208V2 uses the latest MTK wireless solution ,the MT7621A , the clock frequency is as high as 880MHZ, provide 5 gigabit Auto MDI/MDIX Ethernet port, 1×USB 2.0 port, 1×PCI-E , 1×M.2 ,1×Micro SD card
Wireless:
Support IEEE802.11AC/N/G/B/A wireless protocol, max wireless rate could be 1200Mbps
Software:
Preload the OpenWRT.
Product Feature
Specification
| Hardware Specification | |
| Main Chipset | MT7621A/Duabl Core /880Mhz |
| RAM | DDR3 RAM 256MB (MAX512MB)/DDR2 RAM 128MB(MAX 256MB) |
| FLASH | SPI FLASH 16MB (MAX32MB) Higher Flash, need to redraw the PCBA |
| Protocol Standard |
IEEE 802.11ac,IEEE 802.11a IEEE 802.11n,IEEE 802.11g,IEEE 802.11b; |
| Wireless Rate |
5G : 900Mbps 2.4G: 300Mbps |
| Work Frequency | 2.4GHz/5G |
| Interface |
1*10/100M/1000M WAN Port, Auto MDI/MDIX 1*USB 2.0 port 1*PCI-E 1*M.2 1*SIM Card 1*SD Card |
| LED | PWR.SYS.5G.2.4G.5.8G. |
| Button | 1*RESET |
| Power consumption | < 12W |
| Adapter | DC 12V2A |
| Software | |
| Management |
IP:192.168.1.1 USER/root admin/admin |
| OS | OpenWRT (14.07) |
| WAN Type | PPPoE,DynamicIP,Static IP |
| Work Mode |
AP; Router; |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Firewall Security |
Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding |
| DDNS | Support |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
| Band Ctrl | Support |
| Static Router | Support |
| System Log | Support |
| Other Function | Mac clone NTP Synchronize Web firmware upgrade |
| Others | |
| Work Environments |
Operating Temperature:0℃ ~ 40℃; Operating Humidity:10%~90% non-condensing |

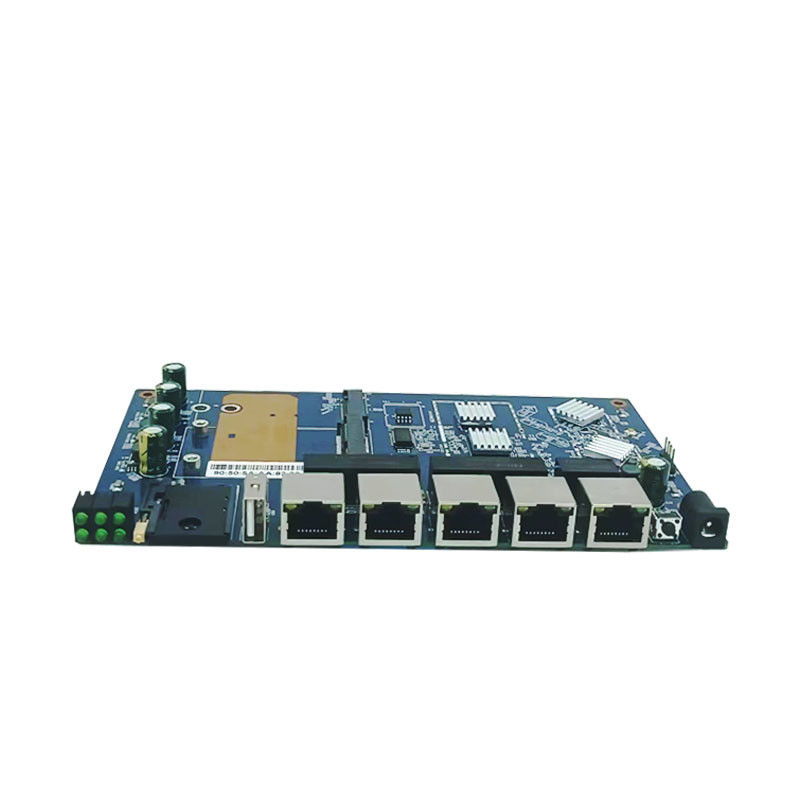

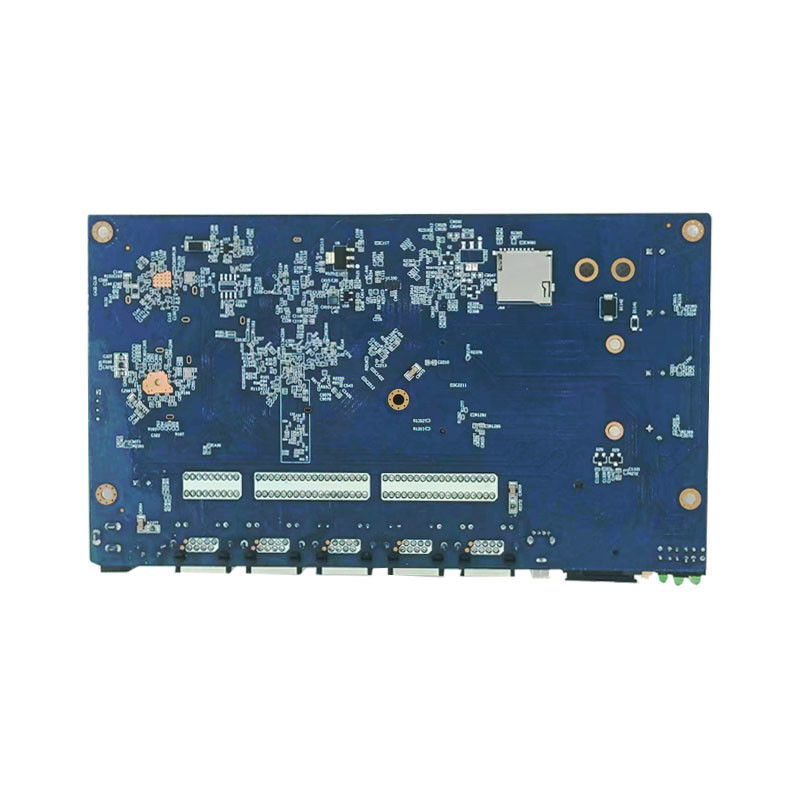

Details Images
