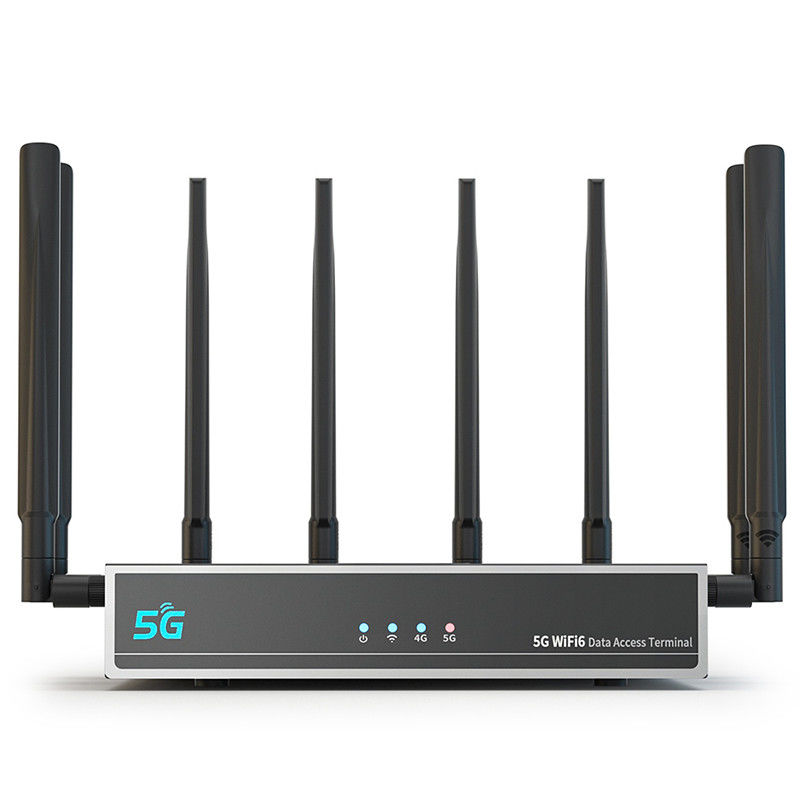

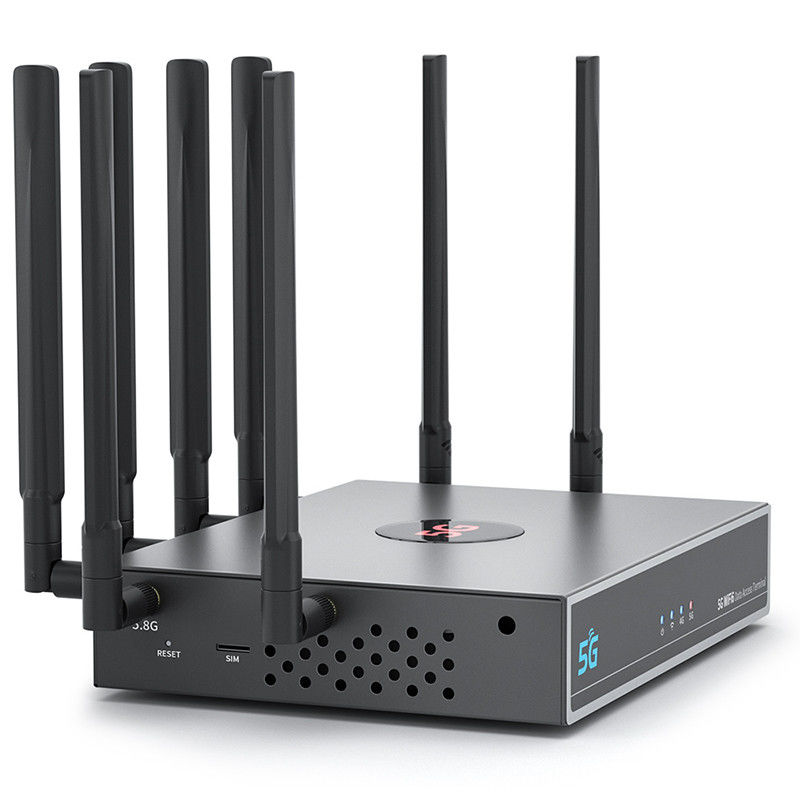

Unlocked Dual Band 3000Mbps Wireless Router 5g 12V DC Power Wifi6 Router 5g Lte
Product Description
5G & WiFi-6 Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination. The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places. The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery
Specification
| Model | M10K43 |
| CPU | MT7981+SDX62 |
| WiFi Frequency | 2.4G&5G |
| WiFi Standard | 2.4G:802.11b/g/n /ax 2T2R MIMO, 5.8GHz:802.11a/n/ac/ax 2T2R MIMO |
| WiFi | 2.4GHz :600Mbps ,5GHz :2400Mbp |
| 5G NR | 3GPP Release 16 NSA/SA operation, Sub-6 GHz |
| 5G Network Mode | NSA/SA |
| 5G/4G Data Rate |
5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs) LTE : Down 1.0 Gbps;UP 200 Mbps |
| 5G Frequency Bands |
5G NR NSA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
5G NR SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
MIMO Downlink:4 × 4 MIMO on n1/ n2/ n3/ n7/ n25/ n38/ n40/ n41/ n48/n66/n77/n78/n79 |
| 4G&3G Frequency Bands |
Downlink Cat 19/ Uplink Cat 18
LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71
LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48
MIMO DL: 4 × 4 MIMO on B2/B4/B5/B12/B13/B14/B17/B25/B26/ B29/B30/B66/B41/B42/B43/B48/B71
WCDMA B1/ 2/ 4/ 5/ 8/19 |
| Modulation Mode |
5G: GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM
WIFI: 1024-QAM / OFDMA |
| Dimension | 210X160X41MM |
| Interface |
2*10/100M/1000 LAN 1*10/100M/1000/2500 WAN 1*12V 2A DC Power Input 1 Reset Button 2 SIM card slot(4FF SIM card Support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card: internal) 1 Breathing Light Button 1 MESH Networking Button |
| Network Extension | MESH |
| Reset | Reset(Long press 10 seconds to restore the factory settings) |
| MESH | Networking: short press (blue networking light flashes) |
| LED Indicator | Power, Breathing Light, 4G Signal, 5G Signal, WiFi Signal |
| Power Consumption | < 24W |
| Environment |
Operating Temperature:-20℃~+50℃ Storage Temperature:-40℃~+70℃ Humidity:5%~95%(Non condensation) |
| Weight | 1.8KG(Includes color box accessories) |
Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
