Travel Essentials AX3000 MINI Wifi6 Router 5.8g Type-C Power Supply Lte Router
Products Description
AX3000 is a portable router using Wi-Fi 6 protocol. It is powered by MT7981B 1.3GHz dual-core processor with 160MHz support, which provides excellent improvement in wireless rate and signal strength. It can be used for multi-device connectivity in the home, and the portable and compact design also meets the needs of optimized network for travel.
Featuring advanced WiFi 6 technology, Beamforming to enhance coverage and BSS Coloring to reduce network congestion, 160MHz doubles the bandwidth channel compared to 80MHz for faster network speeds and a greater number of device connections.
The AX3000's Wi-Fi 6 speeds allow families to watch 4K video on multiple devices with ease and without data buffering interruptions.
Hardware Description
Specification
| AX3000 Hardware Specifications | |
| Hardware Specifications |
MT7981B+MT7976CN+RTL8221B Dual Core 1.3GHZ DDR4 memory 512MB SPI NAND Flash 128MB (Optional Nor Flash) |
| WIFI Chip | MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps |
| Protocol Standards | IEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u |
| Wireless Rate | 574Mbps (2.4GHz)+2402Mbps (5GHz) |
| Operating Frequency Bands | 2.4GHz 5.8GHz |
| output power |
11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm 11AX: 19dBm±1dBm |
| receiver sensitivity |
11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm 11AX VHT20 MCS8: -66dBm |
| antennae | 2* retractable external Wi-Fi antennas |
| interface |
1*10/100/1000/2500Mbps WAN Port, Auto MDI/MDIX. 1*10/100/1000Mbps LAN Port, Auto MDI/MDIX. 1*USB 3.0 Interface 1*Type-C power connector 1*Reset button 1*VPN button |
| LED Lights | WIFI |
| Pushbuttons | 1* Reset button |
| Power Adapter | Type-C, 5V/3A |
| Maximum Power Consumption | < 8W |
| Color | Black/White |

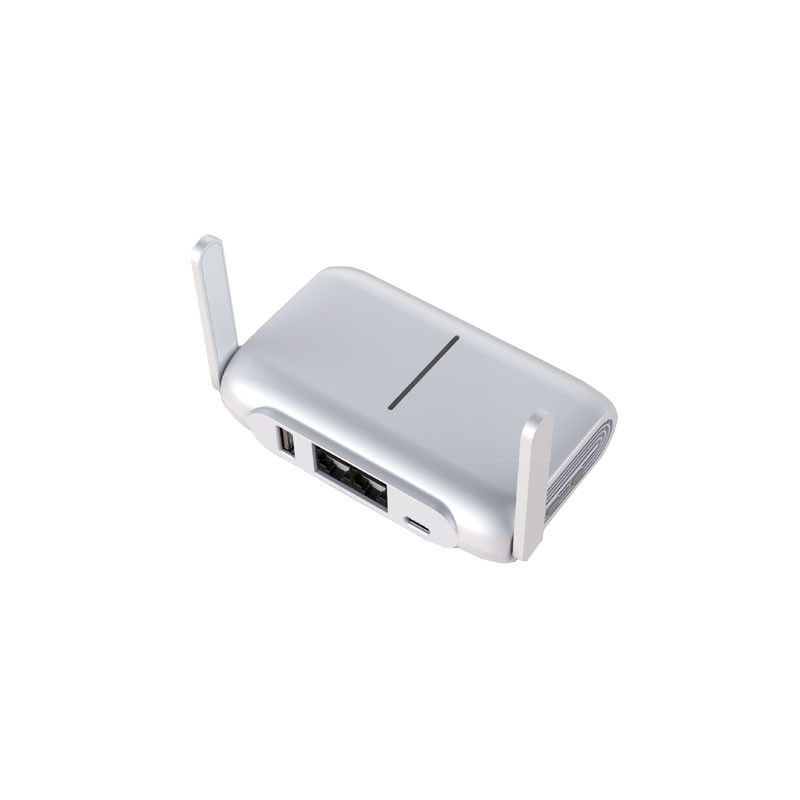

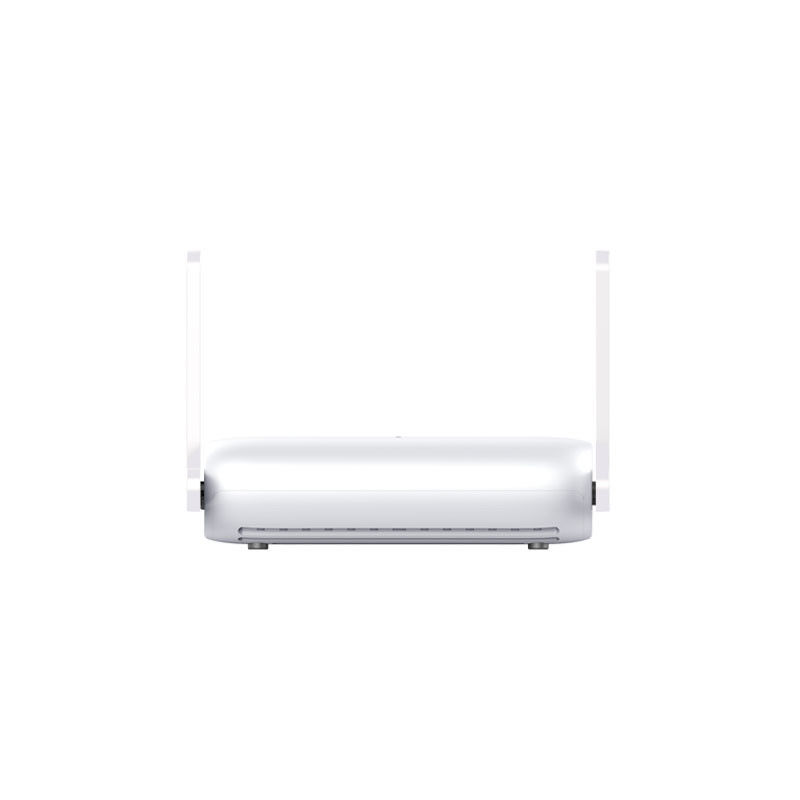

Details Images
