AX3000 Dual Band Wifi6 Router Chip MT7981BA+SDX62 5g Router DC 12V 2A Power Supply

AX3000 Dual Band Wifi6 Router Chip MT7981BA+SDX62 5g Router DC 12V 2A Power Supply

  • High Light

    AX3000 Dual Band Wifi6 Router

    ,

    5g Dual Band Wifi6 Router

    ,

    MT7981BA+SDX62 5g Router

  • CPU
    MT7981BA+SDX62
  • SIM Card Slot
    1 SIM Card Support
  • Interface
    2 LAN+1WAN
  • Wireless Speed
    3000Mbps
  • WIFI
    802.11 A/b/g/n/ac/ax
  • Power Supply
    DC 12V 2A
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    MC01X62
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    30*10*10 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

AX3000 Dual Band Wifi6 Router Chip MT7981BA+SDX62 5g Router DC 12V 2A Power Supply

High Quality AX3000 Dual Band Wifi6 Router Chip MT7981BA+SDX62 5g Router



Product Description



5G & WiFi-6 Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination.

The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places.

The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.



Key Features

5G Cellular
Built-in Qualcomm™ SDX62 modem, it has best 5G mobile network performance and works with integrated world-wide 5G to 2G multi-mode.



Wi-Fi 6 (802.11ax)
The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line,more client connection, lower latency, best network efficiency.



Higher Wireless Capacity
Dual-band 4 spatial streams, the CPE outputs 3000Mbps wireless bandwidth (600 + 2475), makes you peace of mine while enjoy UHD videos, online games at the home rush hours. It’s the future-proof investment absolutely.



Hybrid MESH+ Networking
The CPE inherits the mesh technology and supports “wired / wireless” hybrid networking. It’s so convenient to cover all corners and dead-zones by adding one more MESH+ node (another series of router). it improves the deployments of wireless network and optimized the seamless feature.



5G Datasheet

  • 5G Baseband: Qualcomm® Snapdragon™ X62 Modem-RF System Peak Downlink Rate:4.4Gbps Peak Uplink Rate:1500Mbps·
  • 5G Network Modes: SA (standalone), NSA (non-standalone)
  • 5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
  • 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
  • 5G Standards:3GPP Release 15
  • 5G SA Sub-6 DL2.4 Gbps:UL 900 Mbps
  • 5G NSA Sub-6 DL 3.4 Gbps; UL 550 Mbps
  • 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
  • 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)

4G Datasheet

  • LTE Category:Down Cat 16/ UP Cat 18
  • LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12 /B13/B14/B17/B18/B19 /B20/B25 /B26/B28/B29/B30/B32/B66/B71
  • LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
  • LTE Down 4 × 4 MIMO :B1/B2/B3/B4/B7/B25 /B30/B32/B34/B38/B39 /B40 /B41/B42/B43/B48/B66
  • WCDMA:B1/B2/B3/B4/B5/B8/B19
  • LTE :Down 1.6 Gbps;UP 200 Mbps

WIFI6 Datasheet

WiFi 6(802.11ax)

  • Working Radio: #1: 600Mbps @ 2.4GHz; #2: 2475Mbps @ 5.1-5.8GHz
  • Coding Technology:1024-QAM / OFDMA
  • Peak Connections:>100+ Clients
  • Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward
  • Antenna: built-in 4 pcs high performance antennas with 4 pcs external FEM components.

Data Switching

  • Mobile 4G/5G Connection (Support APN)
  • Giga Ethernet Connection
  • MESH:MESH+ hybird
  • 2.4G/5Ghz WiFi
  • Advanced Firewall
  • MAC Filter
  • WiFi Sercurity
  • VPN Passthrough and VPN Client (L2TP PPTP)
  • IPV4/IPV6
  • WEB / APP Mangement
  • Firmware upgrade

Hardware Specification

  • Chip:MT7981 +MT7976+MT7531
  • Ethernet:1*1Gbps WAN,2*LAN 1Gbps
  • 1* SIM Slot(Nano-SIM)
  • Reset button
  • MESH+ Button
  • MESH+ LED Switch
  • LED Indicator
    MESH+ Working Status (breathing light)
    4G Status
    5G Status
    WiFi Status
    Power Status
  • General
    Power Consumption:<20W
    DC Power Supply: 12V/2A
    Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
    Humidity:5%~95%

Specification



Model MC01X62
CPU MT7981BA+SDX62
Flash 32MB
RAM 512MB DDR3
WiFi Frequency 2.4G&5G
WiFi Standard 2.4G:802.11b/g/n /ax 2T2R MIMO, 5.8GHz:802.11a/n/ac/ax 2T2R MIMO
WiFi 2.4GHz :600Mbps ,5GHz :2475Mbps

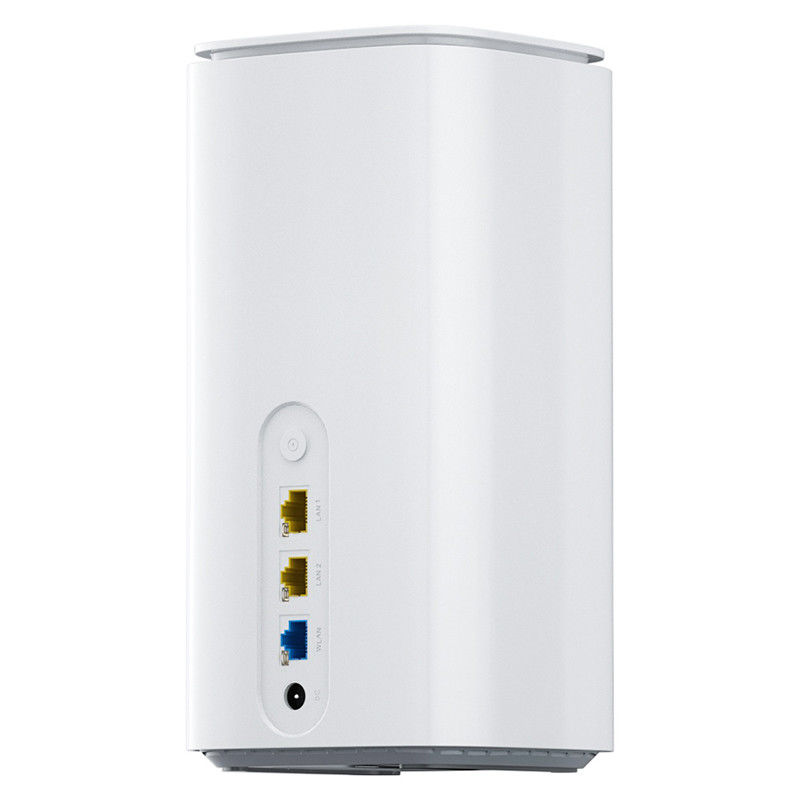

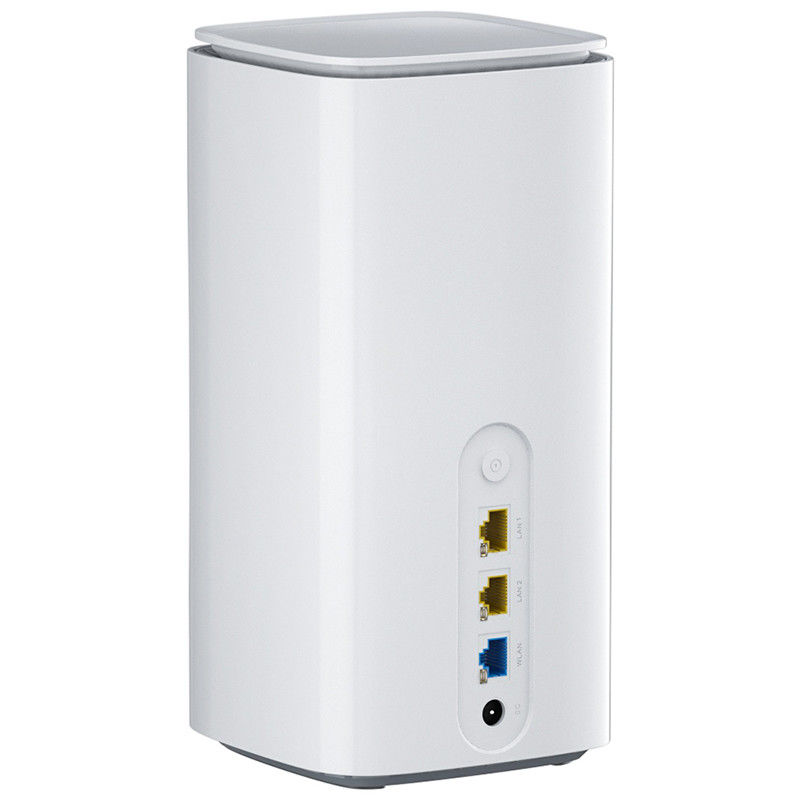

Details Images

AX3000 Dual Band Wifi6 Router Chip MT7981BA+SDX62 5g Router DC 12V 2A Power Supply 0AX3000 Dual Band Wifi6 Router Chip MT7981BA+SDX62 5g Router DC 12V 2A Power Supply 1AX3000 Dual Band Wifi6 Router Chip MT7981BA+SDX62 5g Router DC 12V 2A Power Supply 2
