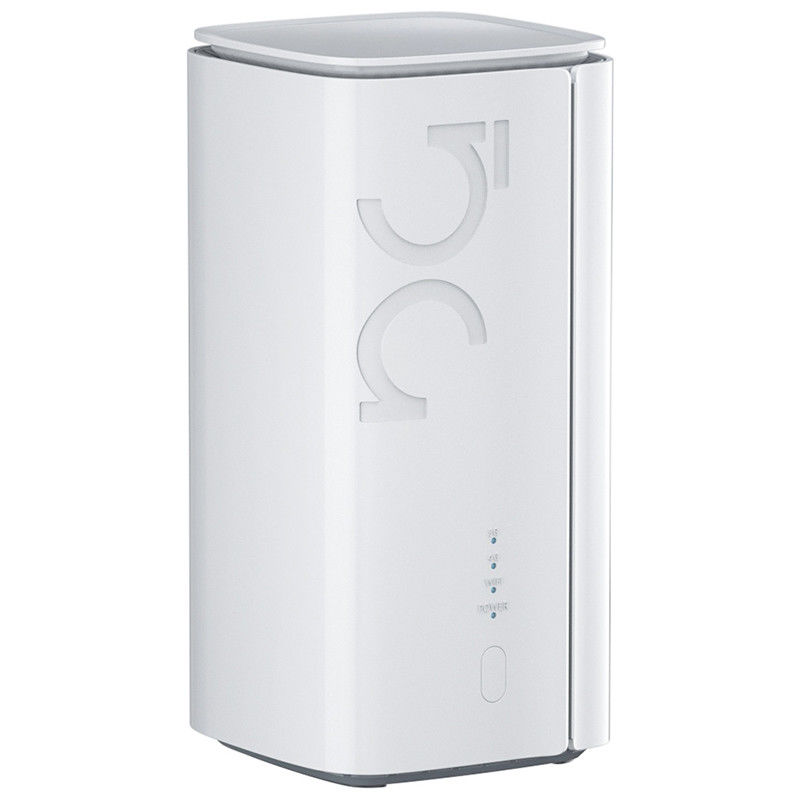

HUASIFEI Dual Band Wireless Router 5g AX3000 Chip X62 5g Lte Wifi6 Router With Sim Slot

HUASIFEI Dual Band Wireless Router 5g AX3000 Chip X62 Wifi6 Router 5g Lte With Sim Slot

Product Description

5G & WiFi-6 Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination.

The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places.

The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.

Key Features

5G Cellular
Built-in Qualcomm™ SDX62 modem, it has best 5G mobile network performance and works with integrated world-wide 5G to 2G multi-mode.

Wi-Fi 6 (802.11ax)
The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line,more client connection, lower latency, best network efficiency.

Higher Wireless Capacity
Dual-band 4 spatial streams, the CPE outputs 3000Mbps wireless bandwidth (600 + 2475), makes you peace of mine while enjoy UHD videos, online games at the home rush hours. It’s the future-proof investment absolutely.

Hybrid MESH+ Networking
The CPE inherits the mesh technology and supports “wired / wireless” hybrid networking. It’s so convenient to cover all corners and dead-zones by adding one more MESH+ node (another series of router). it improves the deployments of wireless network and optimized the seamless feature.

5G Datasheet

• 5G Baseband: Qualcomm® Snapdragon™ X62 Modem-RF System Peak Downlink Rate:4.4Gbps Peak Uplink Rate:1500Mbps·
• 5G Network Modes: SA (standalone), NSA (non-standalone)
• 5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
• 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
• 5G Standards:3GPP Release 15
• 5G SA Sub-6 DL2.4 Gbps:UL 900 Mbps
• 5G NSA Sub-6 DL 3.4 Gbps; UL 550 Mbps
• 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
• 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)

4G Datasheet

• LTE Category:Down Cat 16/ UP Cat 18
• LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12 /B13/B14/B17/B18/B19 /B20/B25 /B26/B28/B29/B30/B32/B66/B71
• LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
• LTE Down 4 × 4 MIMO :B1/B2/B3/B4/B7/B25 /B30/B32/B34/B38/B39 /B40 /B41/B42/B43/B48/B66
• WCDMA:B1/B2/B3/B4/B5/B8/B19
• LTE :Down 1.6 Gbps;UP 200 Mbps

WIFI6 Datasheet

WiFi 6(802.11ax)

• Working Radio: #1: 600Mbps @ 2.4GHz; #2: 2475Mbps @ 5.1-5.8GHz
• Coding Technology:1024-QAM / OFDMA
• Peak Connections:>100+ Clients
• Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward
• Antenna: built-in 4 pcs high performance antennas with 4 pcs external FEM components.

Data Switching

• Mobile 4G/5G Connection (Support APN)
• Giga Ethernet Connection
• MESH:MESH+ hybird
• 2.4G/5Ghz WiFi
• Advanced Firewall
• MAC Filter
• WiFi Sercurity
• VPN Passthrough and VPN Client (L2TP PPTP)
• IPV4/IPV6
• WEB / APP Mangement
• Firmware upgrade

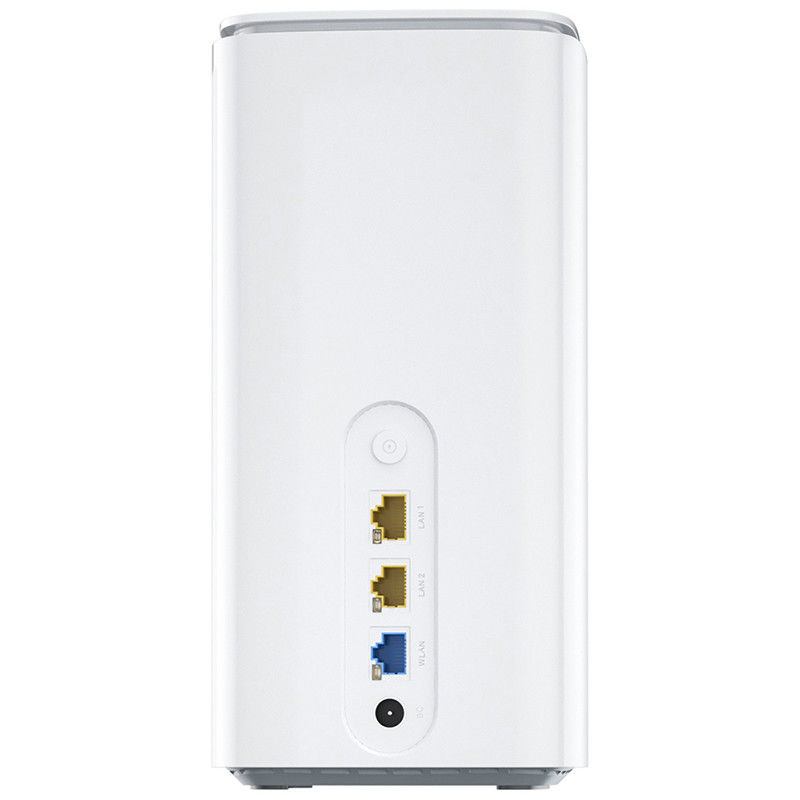

Hardware Specification

• Chip:MT7981 +MT7976+MT7531
• Ethernet:1*1Gbps WAN,2*LAN 1Gbps
• 1* SIM Slot(Nano-SIM)
• Reset button
• MESH+ Button
• MESH+ LED Switch
• LED Indicator
  MESH+ Working Status (breathing light)
  4G Status
  5G Status
  WiFi Status
  Power Status
• General
  Power Consumption:<20W
  DC Power Supply: 12V/2A
  Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
  Humidity:5%~95%

Specification

Details Images

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
