WS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card Slot

WS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card Slot

  • High Light

    Dual Band Wifi Router 1200Mbps

    ,

    4G 5G Dual Band Wifi Router

    ,

    WS1208 dual band wireless router

  • Chipset
    MT7621A+MT7612E+MT7603E
  • WIFI
    802.11 A/b/g/n/ac
  • USB
    USB3.0
  • SIM Card Slot
    1 SIM Card Slot
  • Flash
    16MB
  • RAM
    128MB DDR2
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    WS1208
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    32*21*6 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,,Paypal
  • Supply Ability
    1000PCS/45 days

WS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card Slot

4G 5G Dual Band Gigabit WS1208 Router 1200Mbps 4g Wifi Router With Sim Card Slot



Product Description

WS1208 is a 5G router dual-core CPU MT7621A frequency can reach 880MHz, plus 5G WiFi chip MT7612E and 2.4G wiFi chip MT7603E, full Gigabit network port, wireless rate can reach 5G 867Mbps/2.4G 300Mbps, internal a MINI PCIE interface, you can Add a 4G or 5G module to use with a SIM card and a usb3.0 interface, which is very powerful and can provide stable network to multiple users at the same time.



Hardware:

  • Latest Dual core network chipset MT7621A,Clock Frequency get 880Mhz
  • RAM:DDR3 RAM 256MB (MAX512MB)/DDR2 RAM 128MB(MAX 256MB)
  • FLASH:SPI FLASH 16MB (MAX32MB) Higher Flash, need to redraw the PCBA
  • Provide 5 gigabit Auto MDI/MDIX Ethernet port
  • 1 USB3.0 port and 1 PCI-E



Wireless:
  Support IEEE802.11AC/N/G/B/A wireless protocol, max wireless rate could be 1200Mbps , 4×5Dbi high gain antennas , perform better and cover larger.



Software:
Preload the OpenWRT.



Specification



Technical Specification
SOC MT7621A+MT7612E+MT7603E
880MHz dual-core MIPS1004Kc CPU
RAM 128Mx16bit DDRIII SDRAM,16MB SPI Flash
Supports up to 256Mx16bit DDRIII, 32MB SPI Flash
Wireless Frequency Band Wi-Fi 1: 11b/g/n : 2.412~2.484 GHz
Wi-Fi 2: 11a/n/ac : 5.180
~5.825 GHz
GPS:1565.42~1585.42 MHz
Wireless Specification Maximum access rate of 1167Mbps (2.4G 300Mbps + 5G 867Mbps)
PCBA size L200mm x W175mm x H17mm
Maximum Power Consumption Max. power consumption 24W
Physical Interface WAN x 1+LAN x 4 : RJ45 interface ,10/100/1000 Fast Ethernet
Power connector: 5.5mm DC socket, DC12V2A power input
USB interface: 1 USB3.0 female socket
LTE interface: 1 MiNi PCI-E female connector, connects to USB2.0 interface LTE module, 1 drawer SIM card holder
Buttons: 1 button to return to factory settings
Power Requirements DC12V2A
Wireless Settings Working Mode AP/WDS/Repeater
Wireless mode 11b/ 11g /11n /11a /11ac
Channel selection (Display the number of channels in different areas by country setting)
Channel bandwidth (Auto, 20Mhz, 40Mhz, 80Mhz,)
Receiving Sensitivity 802.11b
-92dBm @ 1Mbps
-83dBm @ 11Mbps

802.11ag
-91dBm @ 6Mbps
-76dBm @ 54Mbps

802.11n HT20
-91dBm @ MCS0
-70dBm @ MCS7

802.11n HT40
-88dBm @ MCS0
-67dBm @ MCS7

802.11ac HT80
-85dBm @ MCS0
-58dBm @ MCS9
Antenna External detachable 5DBi high gain omni-directional antenna
Environmental and Physical Parameters
Operating Temperature -20°C ~ 55°C
Storage temperature -40°C ~ 70°C
Humidity 0%~90% Typical, non-condensing

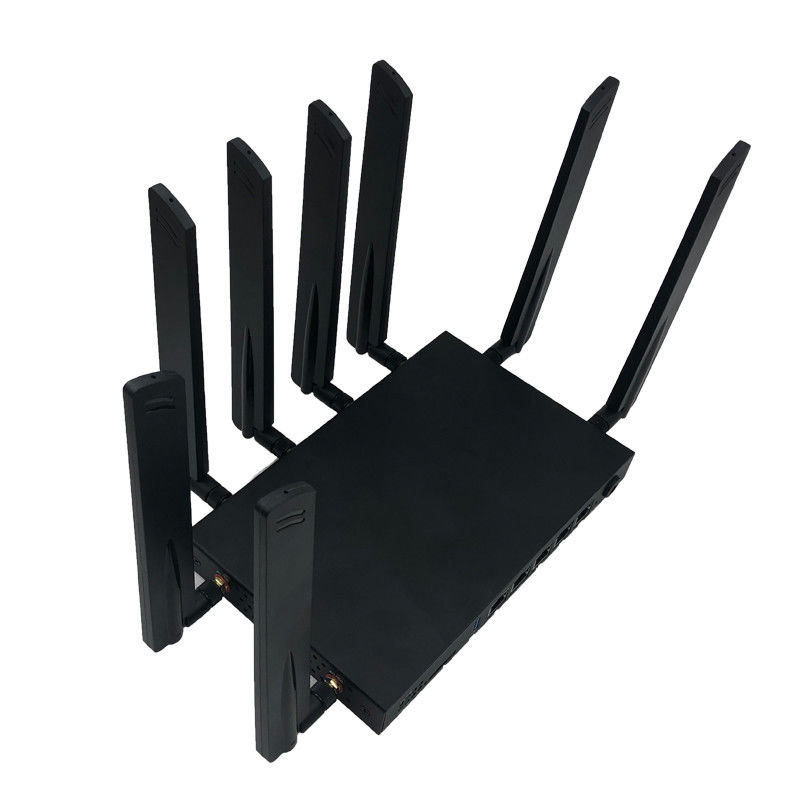

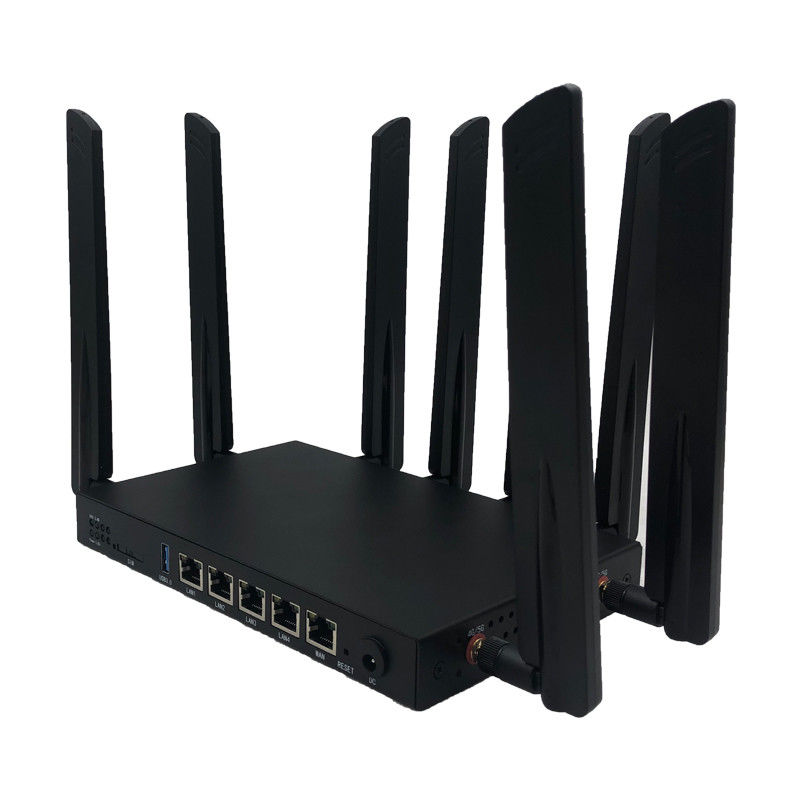

Products Pictures

WS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card Slot 0WS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card Slot 1WS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card Slot 2WS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card Slot 3WS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card Slot 4
