1200Mbps 4g 5g Mobile Router VDSL Dual Band Gigabit RJ11 Port Wifi Router 4g
Product Description
The WS1562 Wireless AC1200 VDSL2 4-port Ethernet IAD is a versatile, high-speed remote router for home and the small office. Users can embrace the great convenience and efficiency not only for Internet browsing, P2P applications, on-line gaming but also for IPTV service, VoIP service, sharing of printers and USB storage devices etc., either through wired or wireless connectivity. Meanwhile, WS1562 provides physical Giga Ethernet WAN port and FXS port for VoIP.
The WS1562 enables your PC and electronic devices to access the local wireless network with high data rate up to 1200Mbps and it is compatible with 802.11n and 802.11ac standards.
Specifications
| Key Components / Connectors / Performance | |
| Network Processor | VSPM340 |
| Wireless Chipset (11n 2x2 2.4GHz) | MT7603E |
| Wireless Chipset (11ac 2x2 5GHz) | MT7612E |
| Flash Memory | 128M bytes (pin-to-pin upsize) |
| RAM | 128M bytes (pin-to-pin upsize) |
| VoIP | FXS x 2 |
| ITU-T K.21 | Compliant (optional) |
| Interfaces (TR-068 Compliant) | |
|
LAN |
4x 10/100/1000Base-TX MDI/MDIX RJ-45 ports Compliant with following standards: 1. IEEE 802.3/802.3u/802.3ab 2. Hardware based 10/100/1000, full/half, flow control auto negotiation 3. Non-blocking wire speed reception and transmission 4. Full duplex IEEE 802.3x flow control and half duplex back-pressure flow control 5. Broadcast storm protection 6. Automatic address learning, address aging and address migration 7. Integrated address Look-Up Engine, 1 K absolute MAC addresses supported 8. IEEE 802.3az EEE compliant |
|
USB |
Support up to USB2.0 & USB3.0 1. Power level: 1500mA 2. USB port supports USB mass storage device for any External flash disk. 3. USB support 3G/ LTE dongle. (3G/LTE dongle requires consumers to buy their own, rather than the accessories of this product.) |
|
WAN |
1x inner pair RJ-11 for VDSL port 1x GE WAN port RJ-45 10/100/1000Mbps, Auto MDIX |
|
WLAN |
2 detachable 2.4G External 5dbi antenna by default 2detachable 5G External 5dbi antenna by default
l Wireless on/off switch
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE n, IEEE 802.11ac compliant Standard compliance: l 802.11 a/b/g/n/ac Modulation: l 802.11ac: BPSK, QPSK, 16QAM, 64QAM, up to 256QAM with OFDM. l 802.11n: OFDM, BPSK, QPSK, 16QAM, 64QAM l 802.11g: PSK/CCK, DBPSK, DQPSK, OFDM, BPSK, QPSK, 16QAM, 64QAM l 802.11b: CCK(11&5.5 Mbps), DQPSK (2Mbps), DBPSK (1Mbps), DSSS Operating Frequencies: 2.4GHz band: · 2400 ~ 2483.5MHz 5GHz for 11ac: · 5150MHz ~ 5250MHz, · 5250MHz ~ 5350MHz, · 5750MHz ~ 5875MHz Channel Numbers: l 802.11b/g/n: 11 for North America; 13 for Europe; 14 for Japan |
|
Voice |
2x FXS RJ-11 ports |

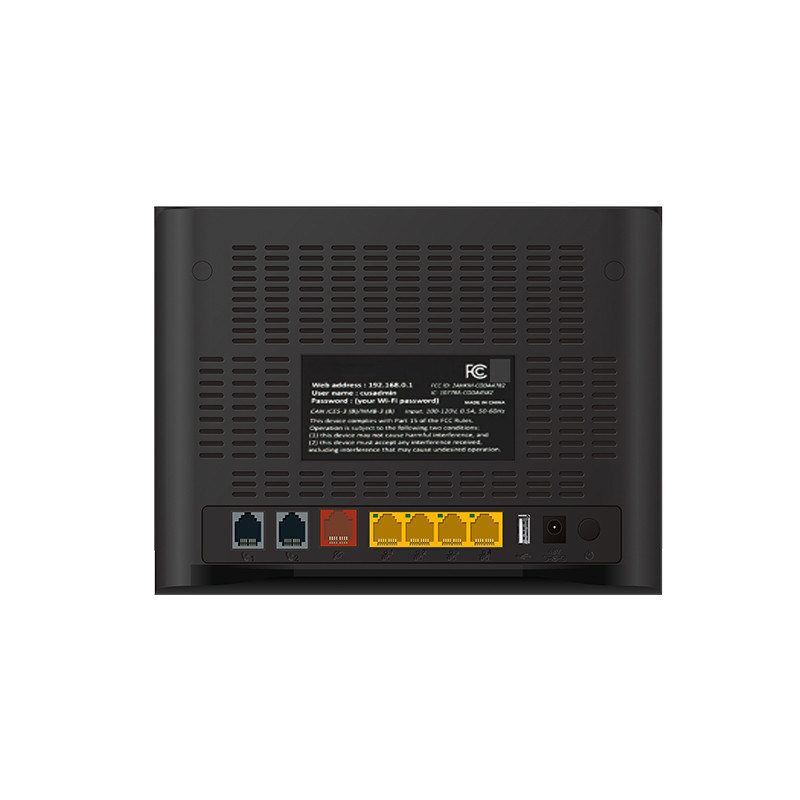

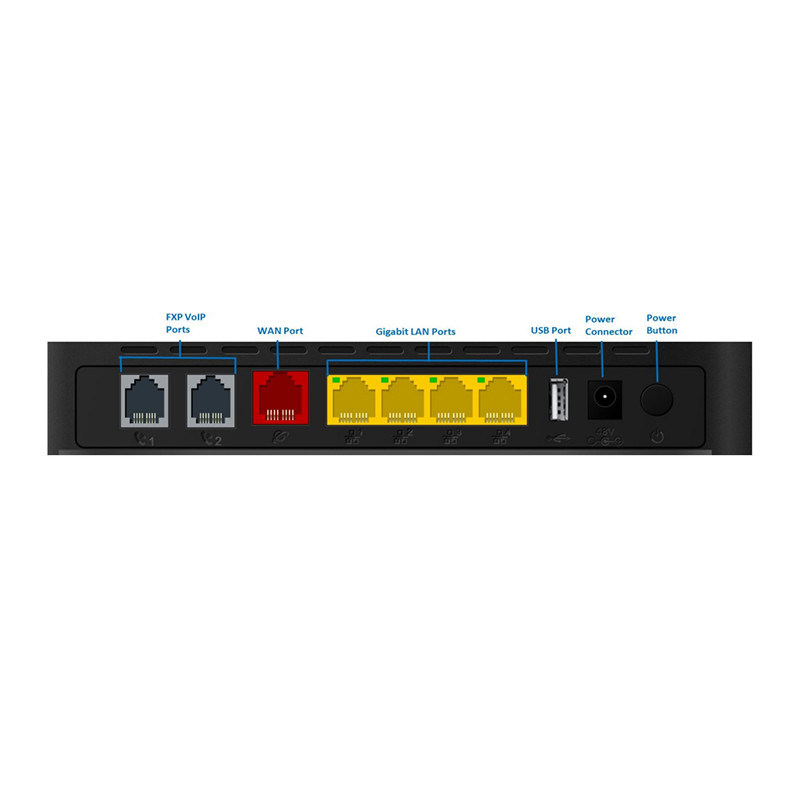

Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
