Industrial Grade Rj45 Port OpenWRT Gigabit 4g 5g Router With WiFi Sim Card Slot
Product Description
Overview
WS7621-M5G adopts MediaTek SOC chip, the chip adopts dual-core quad-thread 880MHz, MT7621 SOC, to meet the needs of various application scenarios 1 USB3.0 M.2 interface, can be connected to M.2 5G module (factory default), support 9-48V DC power supply and support 1 Gigabit WAN 1 Gigabit LAN, support 3 serial ports, one debugging serial port, one RS232, one RS485, factory software support Linux (openwrt) version, the default dual page, the factory software support 1 Gigabit WAN 1 Gigabit LAN. One RS232, one RS485, WS7621-M5G software using Linux (openwrt) version, the default double page, factory software support
Key Features
Fully industrialized design, high and low temperature resistance, durable
The design and manufacture of 5G industrial routers all use high-performance industrial-grade 32-bit communication processors and industrial-grade wireless modules to ensure that the products can run stably for a long time in harsh environments without fear of challenges.
Strong metal shell, high protection level, wide temperature and wide voltage, EMC 4 level, can resist extreme temperature, voltage instability, high electromagnetic radiation, rain and dust invasion and other harsh conditions, ensuring continuous communication between remote equipment and monitoring center.
Specification
| Wireless parameters | |
| Wireless module | Industrial Grade Wireless Modules |
| Standard and frequency band |
5G Band:N1/N2/N3/N5/N7/N8/N12/N20/N25/N28/ N40/N41/N66/N71/N77/N78/N79 |
|
LTE-FDDBand:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/ B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
|
| LTE-TDD Band: B34/B38/B39/B40/B41/B42/B43/B48 | |
| Theoretical bandwidth | 5G up to 4Gbps DL, 300Mbps UL |
| FDD/TDD LTE: 2.4Gbps/200Mbps HSPA+: 42.2Mbps/5.76Mbps [DL/UL | |
| Transmit power | <24dBm |
| Power consumption | Approx. 11W Data mode <1A/12V; Idle mode <500mA/12V |
| Receiving sensitivity | <-109dBm |
| Interface Type | |
| LAN | 2 Gigabit Ethernet interfaces (RJ45 socket), adaptive MDI/MDIX, built-in electromagnetic isolation protection |
| Industrial interface | 1 communication RS485, 1 RS232 interface, suitable for its own acquisition equipment with RS485/232 interface |
| Industrial interface also supports non-polarized power supply input | |
| Indicator light | With 2X "LAN", ""5G" indicator, "SYS" light. |
| Antenna interface | 7 standard SMA antenna interfaces (5G MIMO; 2.4G Wi-Fi x 1; GPS/BD), characteristic impedance 50 ohms |
| SIM/UIM interface | SIM/UIM card engineering card cover to protect the inserted card from being dropped. 1.8V/3V auto-detection |
| Power interface | 9V~48V interface terminal, 3.81mm connector |
| Reset reset button | This button can be used to restore the Router's parameter configuration to factory values |
| USB interface | Provide built-in USB2.0 interface for expanding WiFi module |
| M2 interface 5G module (Default Unicom 5G module) |
LONGSUNG U9300C |
| HUAWEI 5G MH5000 | |
| Quectel 5G RM500Q RG801H | |
| Hisense 5G MNR01 | |
| Simcom 5G SIM8200 | |
| MeiG 5G SRM815 | |
| Thales MV31-W | |
| Unicom 5G module |

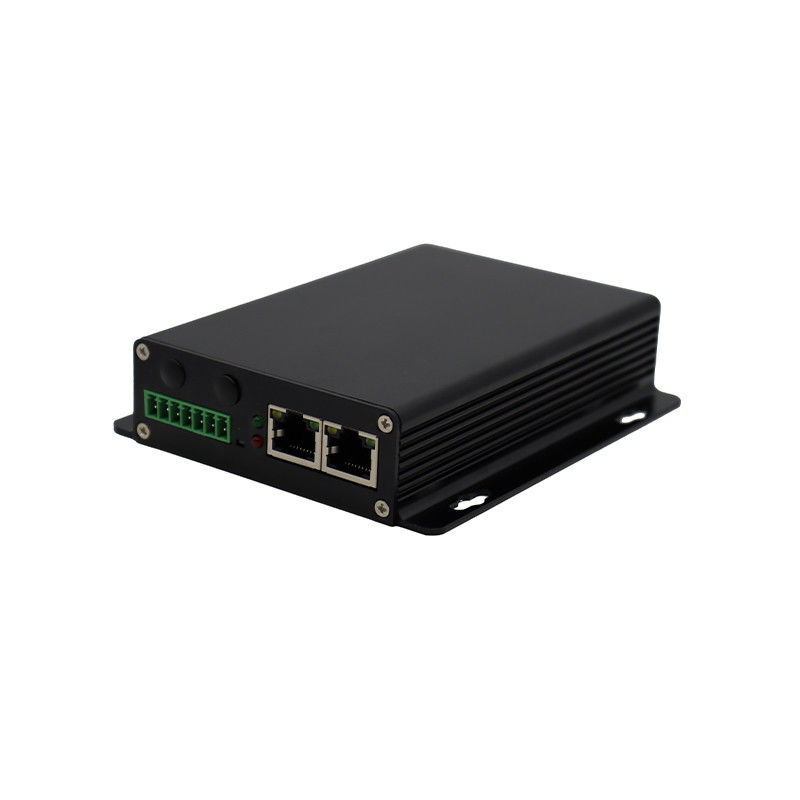

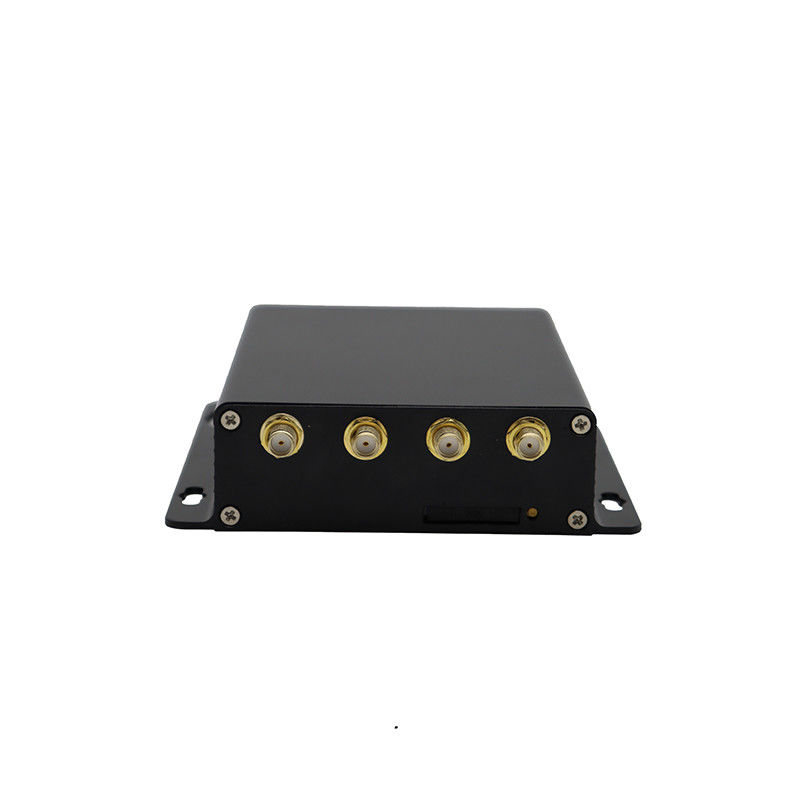

Products Pictures
