Gigabit Ethernet Interface 4G 5G Routers With Serial Port RS485 RS232

Gigabit Ethernet Interface 4G 5G Routers With Serial Port RS485 RS232

  • High Light

    Gigabit Ethernet 4G 5G Routers

    ,

    4G 5G Routers RS485

    ,

    4g 5g wifi router RS232

  • Chipset
    MT7621
  • WIFI
    802.11 A/b/g/n/ac
  • Flash
    32MB
  • RAM
    128-256MB DDR3
  • Interface
    M.2
  • Serial Port
    RS232 RS485
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    WS7621-M5G
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    24*15*5 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,,Paypal
  • Supply Ability
    1000PCS/45 days

Gigabit Ethernet Interface 4G 5G Routers With Serial Port RS485 RS232

Gigabit Ethernet Interface Black 4G 5G Wifi Router With Serial Port RS485 RS232



Product Description

Overview
  WS7621-M5G adopts MediaTek SOC chip, the chip adopts dual-core quad-thread 880MHz, MT7621 SOC, to meet the needs of various application scenarios 1 USB3.0 M.2 interface, can be connected to M.2 5G module (factory default), support 9-48V DC power supply and support 1 Gigabit WAN 1 Gigabit LAN, support 3 serial ports, one debugging serial port, one RS232, one RS485, factory software support Linux (openwrt) version, the default dual page, the factory software support 1 Gigabit WAN 1 Gigabit LAN. One RS232, one RS485, WS7621-M5G software using Linux (openwrt) version, the default double page, factory software support



Full industrial design, resistant to high and low temperatures, durable

  The 5G industrial router is designed and manufactured with high-performance industrial-grade 32-bit communication processors and industrial-grade wireless modules to ensure the product can operate stably for a long time under harsh environments without fear of challenges.
The rugged metal casing, high protection level, wide temperature and voltage, EMC level 4, can withstand extreme temperature, voltage instability, high electromagnetic radiation, rain and dust attack and other harsh conditions to ensure continuous communication between remote devices and monitoring center.





Specification



Wireless parameters
Wireless module Industrial Grade Wireless Modules
Standard and frequency band

5G Band:N1/N2/N3/N5/N7/N8/N12/N20/N25/N28/

N40/N41/N66/N71/N77/N78/N79

LTE-FDDBand:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/

B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

LTE-TDD Band: B34/B38/B39/B40/B41/B42/B43/B48
Theoretical bandwidth 5G up to 4Gbps DL, 300Mbps UL
FDD/TDD LTE: 2.4Gbps/200Mbps HSPA+: 42.2Mbps/5.76Mbps [DL/UL
Transmit power <24dBm
Power consumption Approx. 11W Data mode <1A/12V; Idle mode <500mA/12V
Receiving sensitivity <-109dBm
Interface Type
LAN 2 Gigabit Ethernet interfaces (RJ45 socket), adaptive MDI/MDIX, built-in electromagnetic isolation protection
Industrial interface 1 communication RS485, 1 RS232 interface, suitable for its own acquisition equipment with RS485/232 interface
Industrial interface also supports non-polarized power supply input
Indicator light With 2X "LAN", ""5G" indicator, "SYS" light.
Antenna interface 7 standard SMA antenna interfaces (5G MIMO; 2.4G Wi-Fi x 1; GPS/BD), characteristic impedance 50 ohms
SIM/UIM interface SIM/UIM card engineering card cover to protect the inserted card from being dropped. 1.8V/3V auto-detection
Power interface 9V~48V interface terminal, 3.81mm connector
Reset reset button This button can be used to restore the Router's parameter configuration to factory values
USB interface Provide built-in USB2.0 interface for expanding WiFi module
M2 interface
5G module
(Default Unicom 5G module)
LONGSUNG U9300C
HUAWEI 5G MH5000
Quectel 5G RM500Q RG801H
Hisense 5G MNR01
Simcom 5G SIM8200
MeiG 5G SRM815
Thales MV31-W
Unicom 5G module



Products Pictures

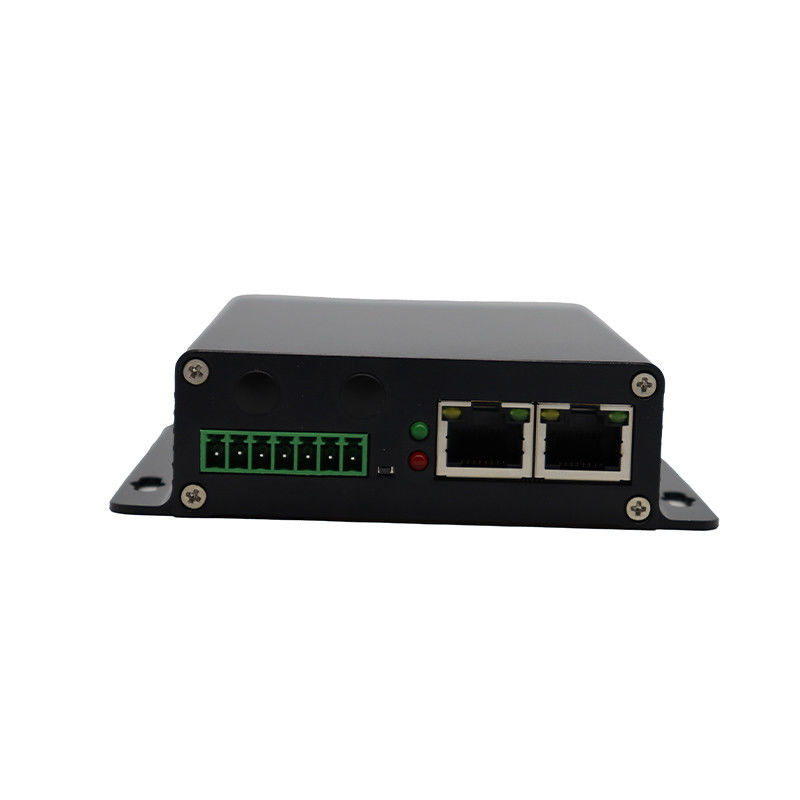

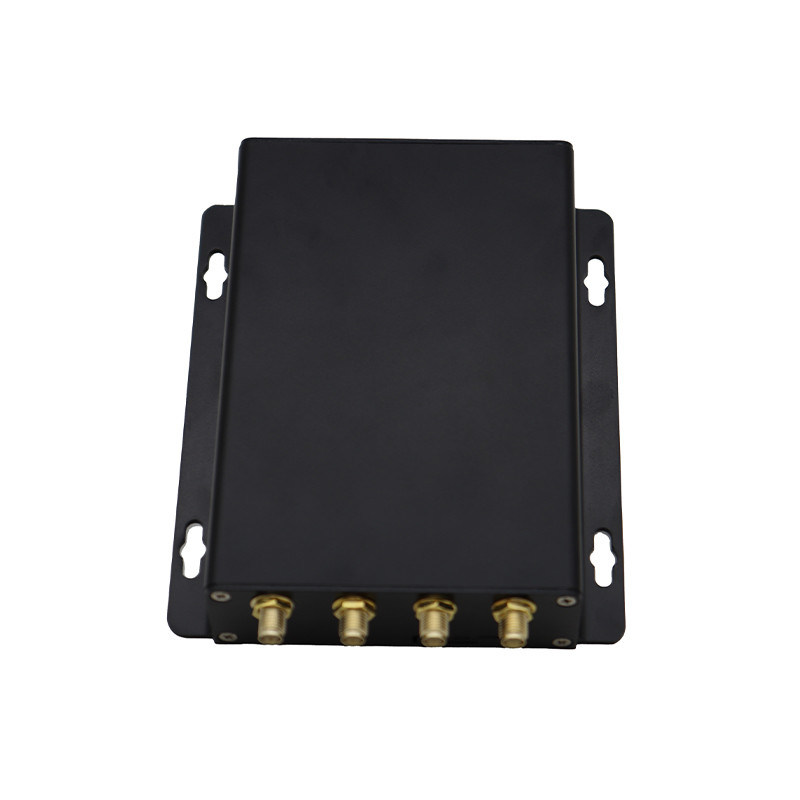

Gigabit Ethernet Interface 4G 5G Routers With Serial Port RS485 RS232 0Gigabit Ethernet Interface 4G 5G Routers With Serial Port RS485 RS232 1Gigabit Ethernet Interface 4G 5G Routers With Serial Port RS485 RS232 2Gigabit Ethernet Interface 4G 5G Routers With Serial Port RS485 RS232 3
