QCA9531 Chipset 4G Wifi Router Openwrt Unlocked 2.4 Ghz Wifi Router

QCA9531 Chipset 4G Wifi Router Openwrt Unlocked 2.4 Ghz Wifi Router

  • High Light

    QCA9531 Chipset 4G Wifi Router

    ,

    4G Wifi Router Openwrt

    ,

    Unlocked 2.4 Ghz Wifi Router

  • Chipset
    QCA9531
  • Interface
    4 LAN /1 WAN
  • SIM Card Slot
    1 SIM Card Support
  • Antenna
    4* 5dBi Antennas
  • Flash
    SPI 128MB
  • RAM
    1Gb
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    WS1316
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    25*19*6 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

QCA9531 Chipset 4G Wifi Router Openwrt Unlocked 2.4 Ghz Wifi Router

QCA9531 Chipset 2.4Ghz Routers 4g Openwrt Unlocked 4g Wifi Router Sim Slot



Product Description

  Adopting a new generation of wireless technology solutions, stable performance, more rich functions, can bring more experience to users. 2.4G wireless transmission rate is 300mbps. It provides one mini PCI interface and one SIM card interface, which has better function expansibility. The mini PCIe interface can load 3G and 4G modules according to customers' requirements, and can access the Internet through SIM card dial-up.



Features

  •  IEEE802.11b/802.11g/802.11n/802.3/802.3u
  • 5Port10/100Mbps adaptive Ethernet interface, support auto flip (AutoMDI/MDIX)
  • 1 PCI-E interface, which can mount domestic 4G modules
  • Support RESET function
  • Hardware watchdog function to ensure long-term stable operation of 4G module and routing system
  • Support WPA2 encryption method to ensure the safe transmission of data
  • Rich software management settings

  bands Situation For 3G or 4G modules, different carriers in different countries have different bands and frequencies. Please tell me the bands or frequencies. Then we can choose the right 3G or 4G modules



Asia version
4G LTE FDD:B1/B3/B5/B8/B38/B39/B40/B41
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Working in all Asia.

EC25-EC version
4G LTE FDD: B1/B3/B7/B8/B20/B28A (2100/1800/850/2600/900/800MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Working in all off EU ,Asia ,Africa,Oceania

EC25-E 2 version
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
(Europe/Middle East/Africa/Korea/Thailand)

EC25-AUX version
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B9
Working in Australia / New Zealand / Taiwan / Brazil

EC25-AFFA version
FDD:B2/B4/B5/B12/B13/B66/B71(1900/1700/850/700ac/700bc/700C/600MHZ)
3G WCDMA:B2/B4B5(1900/1700/850MHZ)
Working in USA/CA/Mexico

Specification
Hardware specifications
The main chip QCA9531-BL3A
Memory DDR2 1GB
Flash SPI 128MB
Protocol standards IEEE8021.1/802.11g/802.11n/802.3/802.3u
Wireless rate 2.4G 300Mbps
The working band 2.4G Hertz



Wireless transmit power

802.111 billion barrels ± 2dBm

802.11g15dBm±2dBm

802.11n14dBm±2dBm





Accept sensitivity

8021.1n: -83dBm@8%

802.11g: -72dBm@10%

802.11n: -68dBm@10%

Antenna Two non-removable 5dbi high-gain completely antennas, the module antenna can be based on customer requirements



Interface

1 10/100M adaptive WAN port with led light for auto flip (AutoMDI/MDIX).

4 10/100M adaptive LAN port with LED for auto flip (AutoMDI/MDIX).

1 PCI-E interface;

Lead In turn, the power LED, 4G signal 1,WIFI led,WAN port indicator,LAN gate led,
Button 1 Reset button
The power adapter 12V/1A
Maximum power consumption of the product <3W
Other





The working environment



Operatinge temperature:-40C 85C;



storage temperature:-10C to 80C;

Working humidity:10% to 90% RH does not condense

Storage humidity:5% to 90% RH does not condense

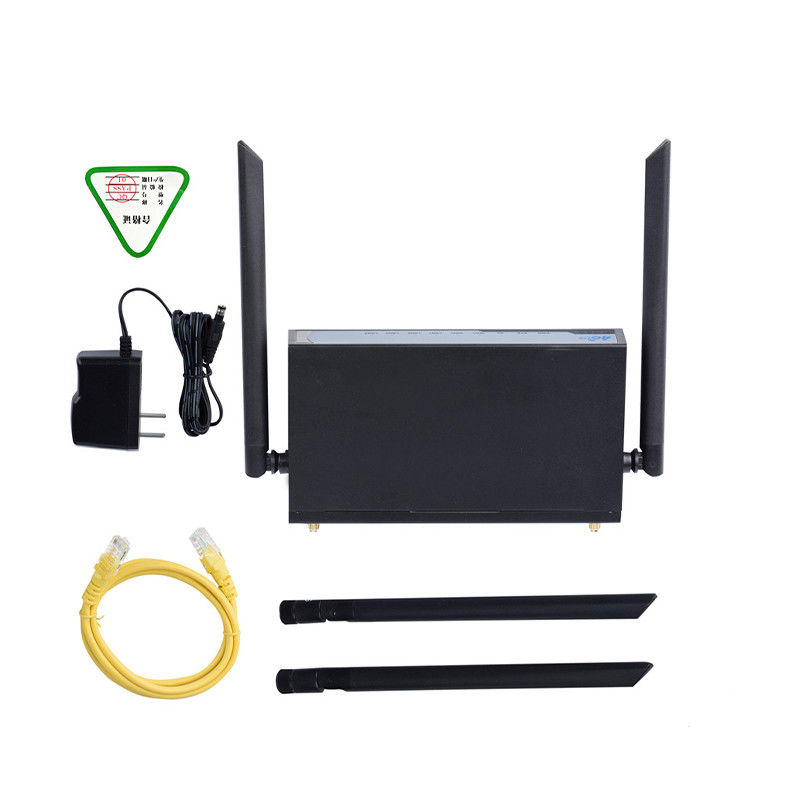

Accessories Power adapter 1PCS,network length 1 m 1PCS
Size 172 mm x 98 mm x 38 mm x Sigsi
Net 0.45 kg
Packaging information Black iron shell

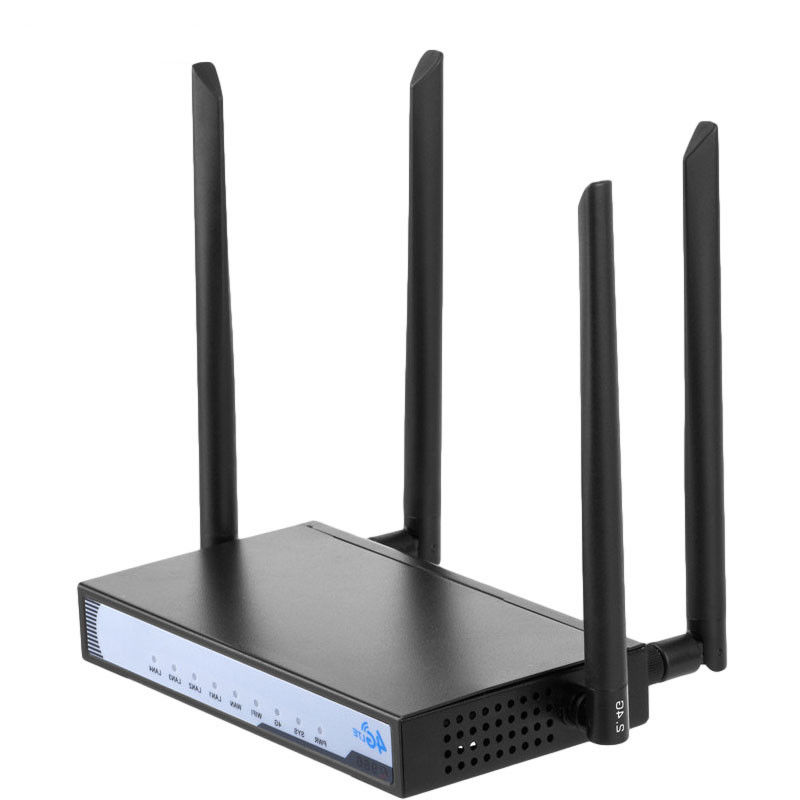

Details Images

QCA9531 Chipset 4G Wifi Router Openwrt Unlocked 2.4 Ghz Wifi Router 0QCA9531 Chipset 4G Wifi Router Openwrt Unlocked 2.4 Ghz Wifi Router 1QCA9531 Chipset 4G Wifi Router Openwrt Unlocked 2.4 Ghz Wifi Router 2QCA9531 Chipset 4G Wifi Router Openwrt Unlocked 2.4 Ghz Wifi Router 3QCA9531 Chipset 4G Wifi Router Openwrt Unlocked 2.4 Ghz Wifi Router 4
