300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port

300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port

  • High Light

    300Mbps 4g Wifi Router With Sim Card Slot


    4g Wifi Router With Sim Card Slot 2LAN


    4g router with sim card slot MTK7628

  • Chipset
  • Main Frequency
  • Wifi
  • Flash
  • RAM
  • SIM Card Slot
    1 SIM Card Support
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 piece
  • Price
  • Packaging Details
    24*18*6 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port

300Mbps 4g Wifi Router Chipset MTK7628 2LAN/WAN Port 4G Router With SIM Slot


Product Description

  WS170-N is a flagship wireless communication product developed based on 4G network requirements, with a wireless rate of up to 300Mbps, which can meet the needs of small networks such as offices and homes for stability, security, and simple access to the Internet. It can also be applied to the Internet of Things communication industry. Provide users with wireless long-distance data monitoring, collection and transmission functions. Full Netcom 4G network access, fully compatible with 4G/3G/2G network, equipped with 2 10/100M adaptive Ethernet LAN interfaces, connected to the internal LAN; 1 10/100M adaptive Ethernet WAN interface, providing wired Broadband access.



Enterprise-level design, 300M wireless speed
Using a professional wireless processor, the wireless rate is as high as 300Mpbs, and the barrier-free transmission distance is about 100 meters. Independent professional power amplifier and low-noise amplifier, stable and smooth with 30 machines, no freeze, no drop-off.


Easy to set up, flexible and multi-purpose
It supports 4G and wired broadband access, and has a built-in quick setup wizard to guide customers to complete configuration easily. The default 4G access mode, just plug in the card and use; WAN access network, automatically switch to routing mode. Support 4G and cable two broadband access methods, support mobile Unicom Telecom 4G/3G/2G network card, and have 4G Internet access advantages in places where wired bandwidth cannot reach, 4G and wired automatic switching, never disconnected.

A variety of security strategies to ensure network data security at all times
Support WPS, WPA, WPA2 wireless security access, support SSID hiding, guest network, black and white list, LAN port isolation, VPN, ALG, MAC filtering, IP filtering, NAT setting, DDOS to effectively protect network security, and ensure user network data security at all times.


A variety of status statistics, always know the working status of the equipment
Built-in traffic statistics, support traffic package settings, easy to understand the monthly traffic usage; multi-state work indicator, real-time work log view, always know the working status of the device.


Never-ending product feature updates and performance optimization
The R&D team adhering to the spirit of craftsmanship has been constantly updating functions to meet the needs of various network environments simply and efficiently; meticulous performance optimization ensures the provision of the highest quality network products and improves user experience.




Hardware specification
Product number WS170-N
main chip MTK7628NN 300M High-performance enterprise chips
main frequency 580MHz
wireless technology 802.11b/g/n 300M MIMO technology
Flash memory 16MB
Memory 128MB



device interface

WAN 10/100Mbps Adaptive Network Interface *1

LAN 10/100Mbps Adaptive Network Interface *2

Standard SIM card,standard card

Antenna 2.4G:2T2R ;4G LTE:2T2R ,4G Detachable antenna
Power consumption <12W


press key


POWER/RESET/WPS&WiFi multiplex button
Reset button: 1 reset button, long press for 5 seconds to restore factory settings
POWER button: Short press to turn on, then short press to turn off
indicator light POWER,WiFi,2.4G,WPS,lights, telephone
Product Size N/A
Wi-Fi features
RF parameters 802.11b/g/n:2.4~2.4835GHz
modulation mode




Transmission rate

11b: 1/2/5.5/11Mbps

11g: 6/9/12/18/24/36/48/54Mbps

11n: up to 300Mb

Receiver sensitivity

11b: <-84dbm@11Mbps;

11g: <-69dbm@ 54Mbps;

11n: HT20<-67dbm HT40: <-64dbm

transmit power

11b: 18dBm@ 1~11Mbps

11g: 16dBm @ 6~54Mbps

11n: 15dBm@ MCS0~7


IEEE 802.3(Ethernet)

IEEE 802.3u(Fast Ethernet)

IEEE 802.11b/g/n(2.4G WLAN)

communication standard WPA/WPA2 Security mechanism (WPA-PSK using TKIP or AES)
4G features
Network standard/GNSS EC200A
LTE-FDD (support hierarchical reception) B1/B3/B5/B8
LTE-TDD (support hierarchical reception) B38/B39/B40/B41
GSM B3/8
GNSS function GPS,GLONASS,BeiDou/Compass,Galileo,QZSS

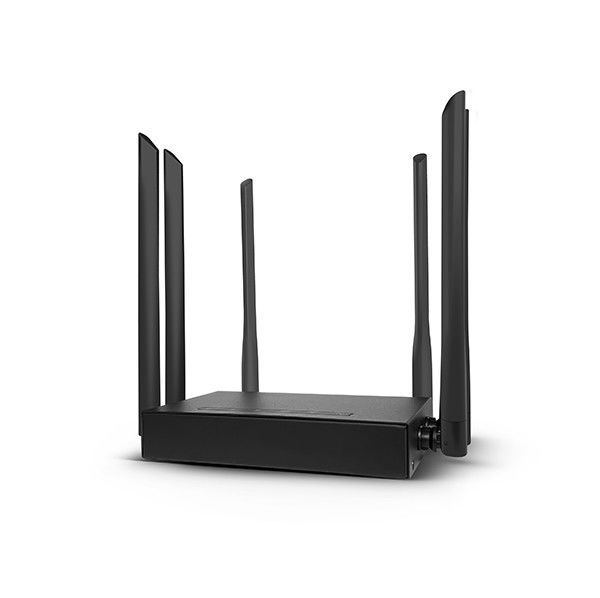

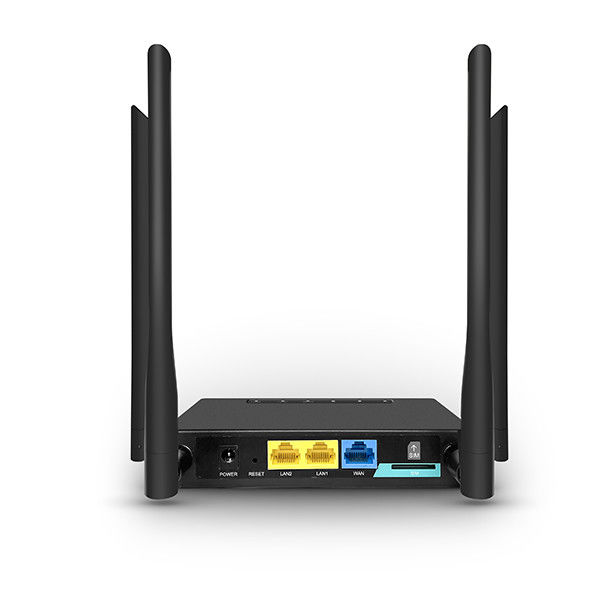

Details Images
300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port 0300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port 1300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port 2300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port 3300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port 4


Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
