16 Gigabit Industrial Unmanaged POE Switch 2 Sfp Fiber Switch

16 Gigabit Industrial Unmanaged POE Switch 2 Sfp Fiber Switch

  • High Light

    16 Gigabit Industrial Unmanaged POE Switch


    POE Sfp Fiber Switch


    2 Sfp Fiber Switch

  • Power Supply
    48-56V DC
  • Color
  • Dimensions (W X D X H)
  • Switching Capacity
  • Power Consumption
    Maximum(PoE On): 240W
  • PoE Ports
    16 Rj45 Port
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 piece
  • Price
  • Packaging Details
    20*16*8 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

16 Gigabit Industrial Unmanaged POE Switch 2 Sfp Fiber Switch

Industrial Unmanaged PoE Switch 16 Gigabit PoE Ports 2 SFP Fiber Ports Switch


Product Description

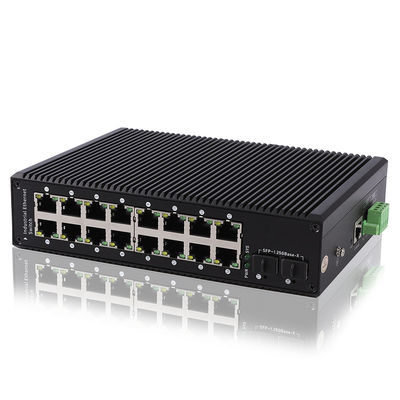

  The M816GP-2SFP-I is a full Gigabit industrial PoE switch independently developed by HUASIFEI. it has 16*10/100/1000M PoE ports and 2*100/1000 SFP fiber slot ports , port 1-16 can support IEEE 802.3af/at standard PoE power supply, single port PoE power up to 30W.
  As a PoE power supply device, it can automatically detect and identify the electrical equipment that meets the standard and supply power through the cable. It can supply the PoE terminal equipment, such as wireless AP, network camera, network telephone, industrial sensor and so on, to meet the demand for high density PoE power supply network environment.
 It is suitable for intelligent transportation, rail transportation, electric power industry, mining, metallurgy and green energy construction and so on.



  • Supports IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3z,IEEE802.3x,IEEE802.3at,IEEE802.3af,IEEE802.3az.
  • Supports PoE power up to 30W for each PoE port.
  • 8× gigabit PoE+ ports and 2× gigabit SFP.
  • Supports MAC address auto-learning and auto-aging.
  • Store and forward mode operates.
  • LED indicators for monitoring power, link/activity
  • Support QoS, port mirroring, link aggregation protocol.



Model M816GP-2SFP-I
Chipset RTL8382MI+RTL8218BI+TPS23861*4
Standards IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az, IEEE802.3af,IEEE802.3at
Number of Ports

16 x 10/100/1000Mbps ports

2 x 1000Mbps SFP ports

1x Console port

Network Media (Cable)

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)


Transfer Method Store-and-Forward
MAC Address Table 8K
Switching Capacity 56Gbps
Packet Forwarding Rate 41.67Mpps
Packet Buffer 4.1Mbit
Jumbo Frame 12KBytes
PoE Ports(RJ45) 16x PoE ports compliant with 802.3at/af
Power Pin Assignment 1/2(+),3/6(-)
Indicators Per Device Power, System
Per Port Link/Activity,
Power Supply 48-56V DC
Power Consumption Maximum(PoE on): 240W
Dimensions (W×D×H) 185x145x45mm (Rail type Aluminum case)

Operating Temperature: -40℃~85℃

Storage Temperature: -40℃~85℃

Operating Humidity: 10%~90% non-condensing

Storage humidity: 5%~90% non-condensing


Details Images

16 Gigabit Industrial Unmanaged POE Switch 2 Sfp Fiber Switch 016 Gigabit Industrial Unmanaged POE Switch 2 Sfp Fiber Switch 116 Gigabit Industrial Unmanaged POE Switch 2 Sfp Fiber Switch 216 Gigabit Industrial Unmanaged POE Switch 2 Sfp Fiber Switch 3
