Unmanaged Intelligent PoE Switch 8 100M Ports And 2 100M Uplink Ports Switch
Product Description
CX-S802F is an unmanaged intelligent PoE switch, equipped with 8 100M electrical ports + 2 100M uplink electrical ports, of which 1-8 ports support IEEE 802.3af/at standard PoE power supply, and the single-port PoE power reaches 30W. And the PoE port can automatically detect and identify powered devices that comply with the IEEE 802.3af/at standard and supply power to them through the network cable. Non-POE devices can be intelligently detected without power supply and only transmit data.
It can supply power to PoE terminal devices such as IP phones, network cameras, wireless APs, video intercoms, and smart homes through network cables. It is suitable for hotels, schools, factory dormitories, and small and medium-sized enterprises to form cost-effective networks.
PoE technology (Power over Ethernet) is Power over Ethernet technology, which refers to providing DC power supply for some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.) while transmitting data signals. Technology, these devices that receive DC power are called powered devices.
Product Features
8 100M PoE ports + 2 100M uplink ports
Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x standards
Ethernet port supports 10/100 auto-sensing
Flow control mode: Full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
Store-and-forward switching mechanism
Comply with IEEE 802.3af/at PoE power supply standard
Three-speed intelligent dial switch (switch function can be customized) :
VLAN: Port isolation mode, 1-8 ports realize the isolation of the downlink ports of the monitoring network, and intercommunicate with the uplink ports, effectively suppressing broadcast storms,
Protect intranet security.
PoE forced power supply: Ports 5~8 become forced power supply mode, the power of a single port can reach 30W, and when the power of a single port exceeds 30W, it will automatically switch off
The power supply of the port will be cut off, and the power supply will be restored automatically after the port overload is removed.
AI watchdog: PoE watchdog mode, 1-8 power supply ports support PoE watchdog function, when the port communication fails, the corresponding port PoE It will restart automatically, reducing on-site maintenance costs.
The PoE port supports the priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is given priority to avoid overloading of the device.
Ports 1~8 support AI recognition of long distances. When the cable length is less than 100 meters, the default rate is 100M. When the cable length is greater than 100 meters, the corresponding port rate is automatically reduced to 10M. The PoE power supply and data transmission distance can be extended to 250 meters.
Specification
| Technical Parameters | |
| port characteristics | |
| fixed port |
8 10/100Base-TX POE ports (Data/Power) 2 10/100Base-TX uplink RJ45 ports (Data) |
| Network port characteristics | 1-10 port 10/100BaseT (X) Automatic detection, full/half duplex MDI/MDI-X adaptive |
| Network protocol |
IEEE802.3 IEEE802.3u IEEE802.3x |
| Backplane Bandwidth | 2.0 Gbps |
| packet forwarding rate | 1.488Mpps |
| packet forwarding cache | 1.25K |
| MAC address table | 2K |
|
Forwarding mode |
store and forward |
| Twisted pair transmission |
10BASE-T: Cat3,4,5 UTP(≤250 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| LED indicator | Operation indicator: Sys (green); Network indicator: Link (green) |
| Special feature | |
|
Function switch (customizable)
|
SW1: VLAN |
| SW2: Force Output | |
| SW3: Watchdog | |
| PoE and Power Characteristics | |
| PoE power supply standard | 1-8 ports support IEEE802.3af/at standard PoE power supply |
| PoE power supply pin | 1/2(+), 3/6(-) |
| PoE maximum single port/average power | AT-30W / AF-15.4W |
| total power | 120W |
| Overall power consumption | Standby power consumption: <3W; full load power consumption: <120W |

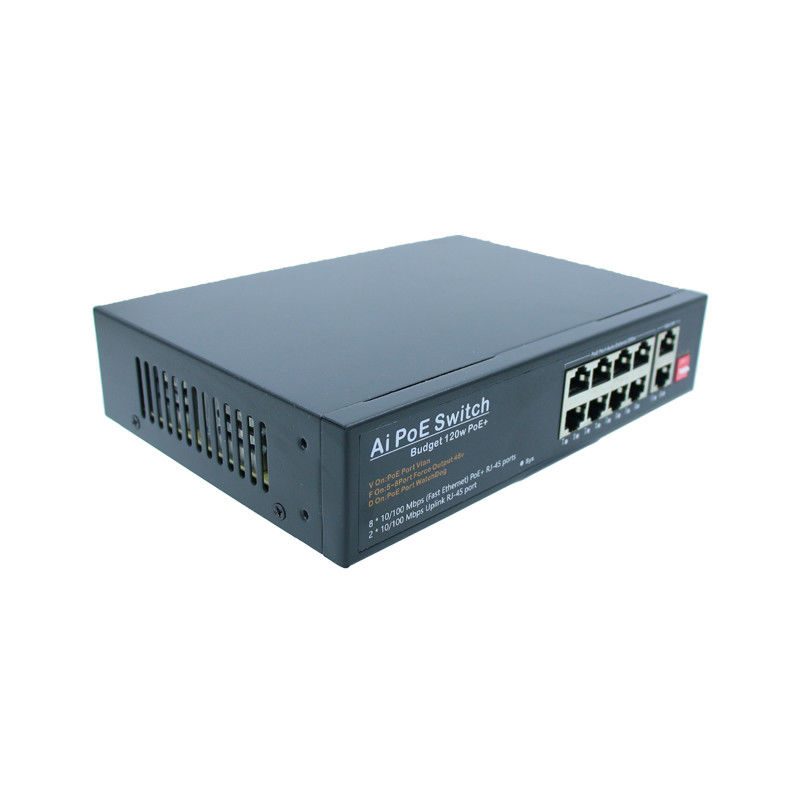

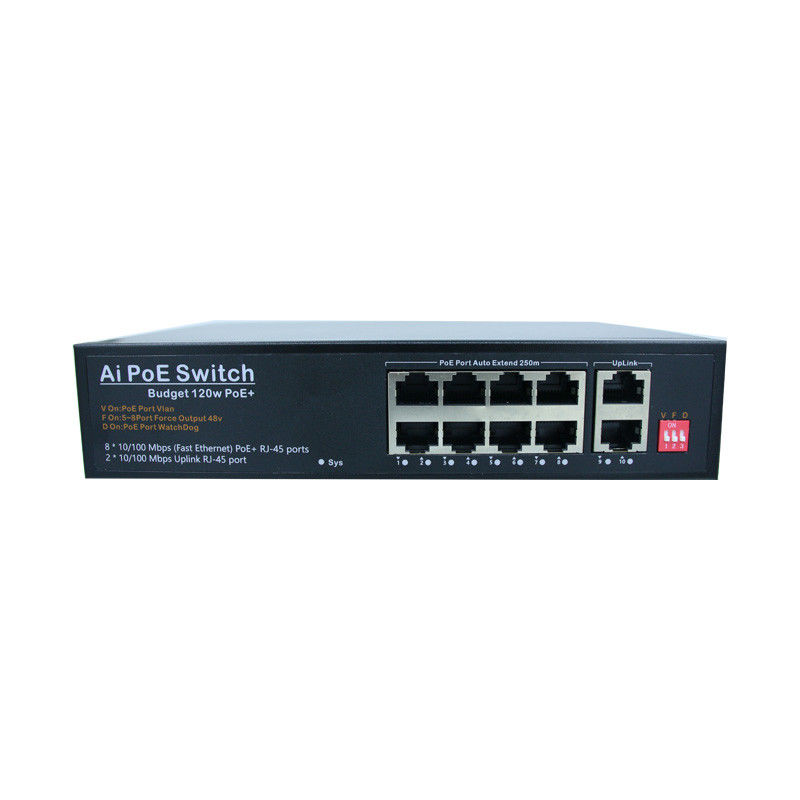

Details Images
