HUASIFEI Industrial Unmanaged POE Switch  8 100M Ports 2 100M Uplink Electrical Ports

HUASIFEI Industrial Unmanaged POE Switch 8 100M Ports 2 100M Uplink Electrical Ports

  • High Light

    HUASIFEI Industrial Unmanaged POE Switch


    Uplink Ports Industrial Unmanaged POE Switch

  • Working Temperature
  • Product Name
    10-port 100M Ai PoE Switch
  • Size
  • Protection Class
  • Packet Forwarding Rate
  • Power Input Voltage
    AC 100~240V 50/60Hz
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 piece
  • Price
  • Packaging Details
    24*18*10 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

HUASIFEI Industrial Unmanaged POE Switch 8 100M Ports 2 100M Uplink Electrical Ports

Industrial Unmanaged POE Switch 8 100M Ports And 2 100M Uplink Electrical Ports


Product Description

   CX-S802F is an unmanaged intelligent PoE switch, equipped with 8 100M electrical ports + 2 100M uplink electrical ports, of which 1-8 ports support IEEE 802.3af/at standard PoE power supply, and the single-port PoE power reaches 30W. And the PoE port can automatically detect and identify powered devices that comply with the IEEE 802.3af/at standard and supply power to them through the network cable. Non-POE devices can be intelligently detected without power supply and only transmit data.

   It can supply power to PoE terminal devices such as IP phones, network cameras, wireless APs, video intercoms, and smart homes through network cables. It is suitable for hotels, schools, factory dormitories, and small and medium-sized enterprises to form cost-effective networks.

  PoE technology (Power over Ethernet) is Power over Ethernet technology, which refers to providing DC power supply for some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.) while transmitting data signals. Technology, these devices that receive DC power are called powered devices.


Product Features

8 100M PoE ports + 2 100M uplink ports
Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x standards
Ethernet port supports 10/100 auto-sensing
Flow control mode: Full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
Store-and-forward switching mechanism
Comply with IEEE 802.3af/at PoE power supply standard
Three-speed intelligent dial switch (switch function can be customized) :

VLAN: Port isolation mode, 1-8 ports realize the isolation of the downlink ports of the monitoring network, and intercommunicate with the uplink ports, effectively suppressing broadcast storms,
Protect intranet security.
    PoE forced power supply: Ports 5~8 become forced power supply mode, the power of a single port can reach 30W, and when the power of a single port exceeds 30W, it will automatically switch off
The power supply of the port will be cut off, and the power supply will be restored automatically after the port overload is removed.
    AI watchdog: PoE watchdog mode, 1-8 power supply ports support PoE watchdog function, when the port communication fails, the corresponding port PoE It will restart automatically, reducing on-site maintenance costs.


  The PoE port supports the priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is given priority to avoid overloading of the device.
  Ports 1~8 support AI recognition of long distances. When the cable length is less than 100 meters, the default rate is 100M.      When the cable length is greater than 100 meters, the corresponding port rate is automatically reduced to 10M. The PoE power supply and data transmission distance can be extended to 250 meters.




Technical Parameters
port characteristics
fixed port

8 10/100Base-TX POE ports (Data/Power)

2 10/100Base-TX uplink RJ45 ports (Data)

Network port characteristics 1-10 port 10/100BaseT (X) Automatic detection, full/half duplex MDI/MDI-X adaptive
Network protocol




Backplane Bandwidth 2.0 Gbps
packet forwarding rate 1.488Mpps
packet forwarding cache 1.25K
MAC address table 2K


Forwarding mode

store and forward
Twisted pair transmission

10BASE-T: Cat3,4,5 UTP(≤250 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

LED indicator Operation indicator: Sys (green); Network indicator: Link (green)
Special feature

Function switch (customizable)


SW2: Force Output
SW3: Watchdog
PoE and Power Characteristics
PoE power supply standard 1-8 ports support IEEE802.3af/at standard PoE power supply
PoE power supply pin 1/2(+), 3/6(-)
PoE maximum single port/average power AT-30W / AF-15.4W
total power 120W
Overall power consumption Standby power consumption: <3W; full load power consumption: <120W

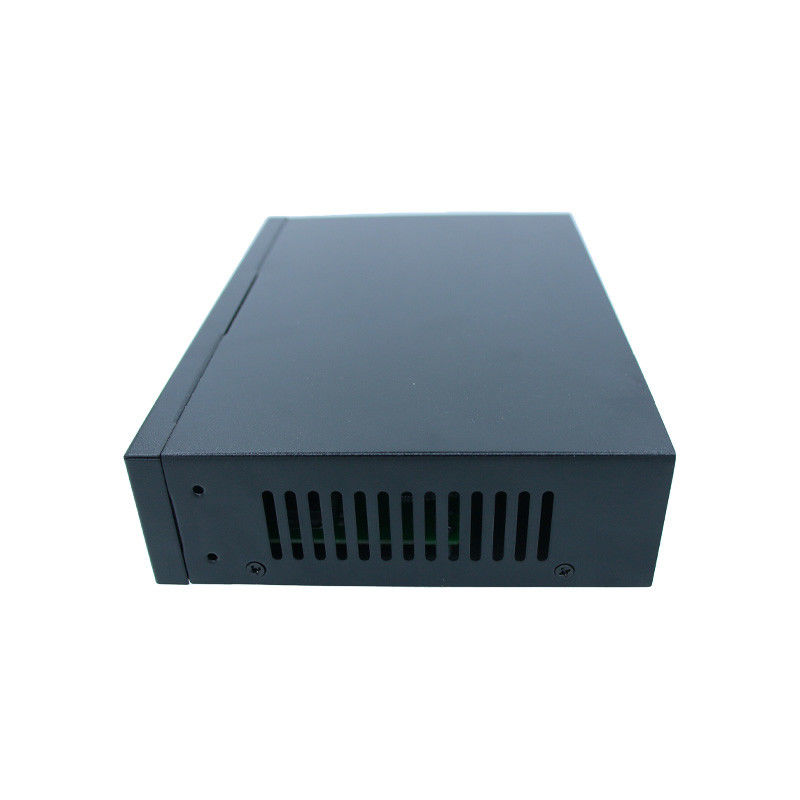

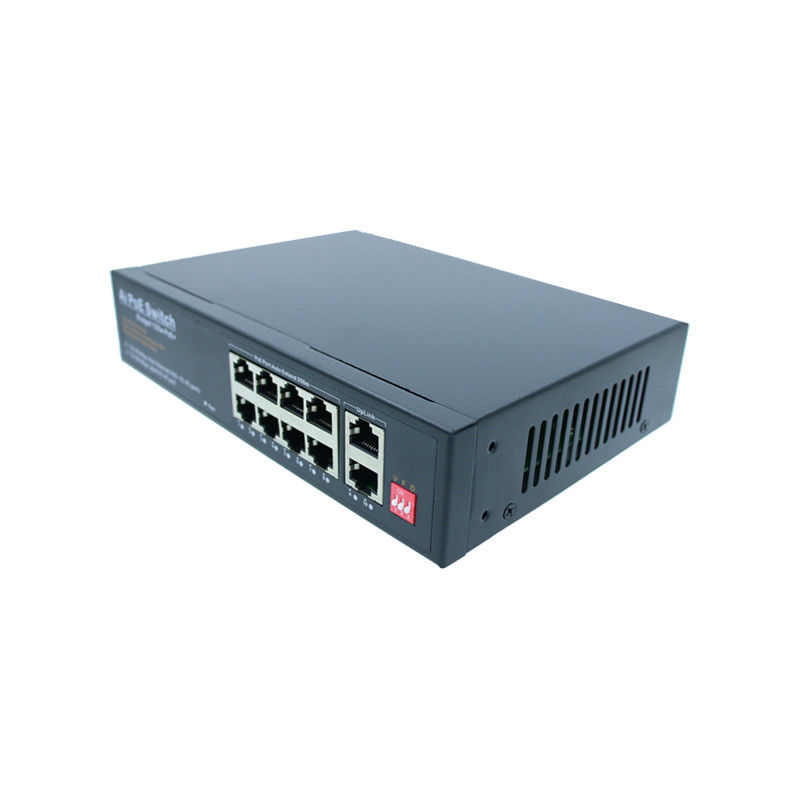

Details Images

HUASIFEI Industrial Unmanaged POE Switch  8 100M Ports 2 100M Uplink Electrical Ports 0HUASIFEI Industrial Unmanaged POE Switch  8 100M Ports 2 100M Uplink Electrical Ports 1HUASIFEI Industrial Unmanaged POE Switch  8 100M Ports 2 100M Uplink Electrical Ports 2HUASIFEI Industrial Unmanaged POE Switch  8 100M Ports 2 100M Uplink Electrical Ports 3
