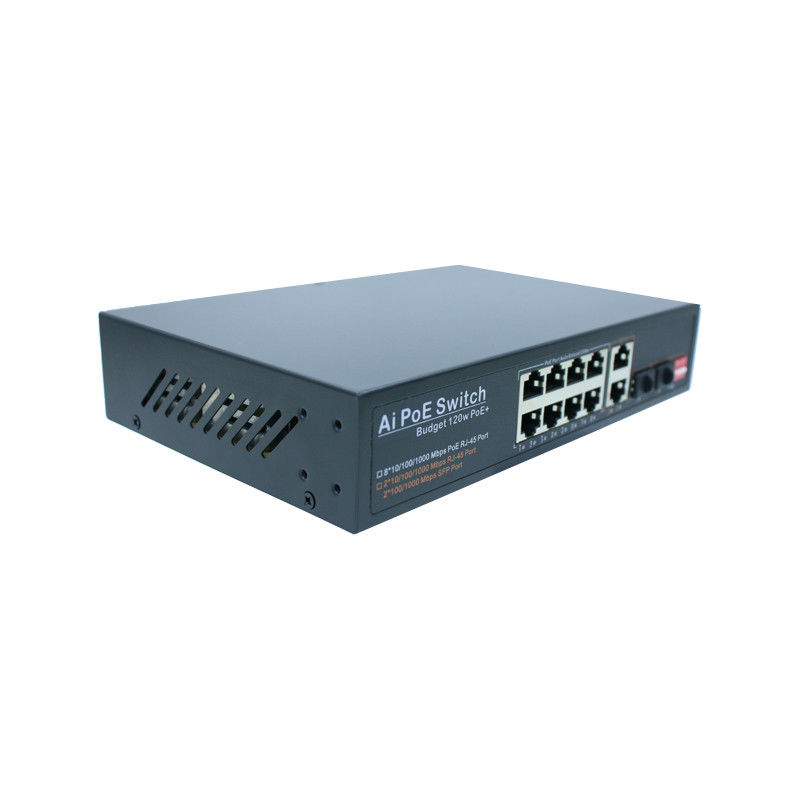

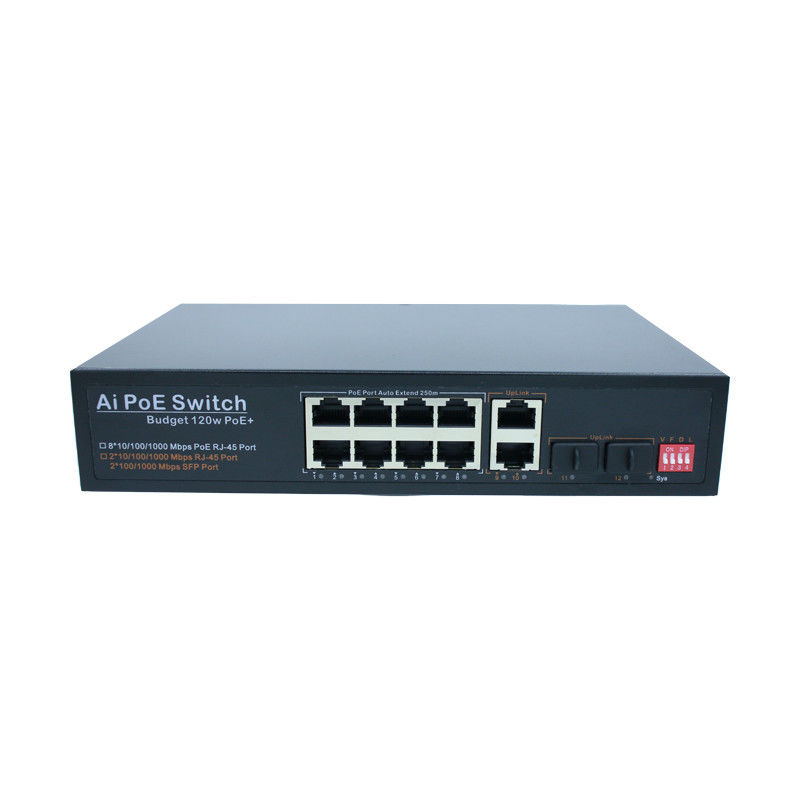

Unmanaged POE Industrial Switch With 8 PoE Port 2 Network Port

Unmanaged Intelligent PoE Switch 8 PoE Port 2 Network Port Industrial Switch

Product Description

   CX-S804GF is an unmanaged intelligent PoE switch, with 8 Gigabit PoE ports + 2 Gigabit uplink network ports + 2 Gigabit uplink SFPs, of which 1-8 ports support IEEE 802.3af/at standard PoE power supply, single The PoE power of the port is up to 30W, and the PoE port can automatically detect and identify the powered device that complies with the IEEE 802.3af/at standard and supply power to it through the network cable. The non-POE device intelligently detects that it does not provide power and only transmits data.
   It can supply power to PoE terminal devices such as IP phones, network cameras, wireless APs, video intercoms, and smart homes through network cables. It is suitable for hotels, schools, factory dormitories, and small and medium-sized enterprises to form cost-effective networks.
   PoE technology (Power over Ethernet) is Power over Ethernet technology, which refers to providing DC power supply for some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.) while transmitting data signals. Technology, these devices that receive DC power are called powered devices.

Product Features

• 8 Gigabit PoE ports + 2 Gigabit uplink ports + 2 Gigabit uplink SFPs
• Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE802.3ab standards
• Ethernet port supports 10/100/1000M self-adaptation
• Flow control mode: Full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
• Use store-and-forward switching mechanism
• Comply with IEEE 802.3af/at PoE power supply standard
• Four-speed intelligent dial switch (switch function can be customized):

•   The PoE port supports the priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is given priority to avoid overloading the device..
•   Ports 1~8 support AI recognition of long distances. When the cable length is less than 100 meters, the default rate is 1000M. When the cable length is greater than 100 meters, the rate of the corresponding port is automatically reduced to 10M. PoE power supply and data transmission distance can be extended to 250 meters.

Specification

Details Images

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
