AC 100~240V Industrial Unmanaged POE Switch 8 Gigabit Port 2 Network Port

AC 100~240V Industrial Unmanaged POE Switch 8 Gigabit Port 2 Network Port

  • High Light

    240V Industrial Unmanaged POE Switch


    Industrial Unmanaged POE Switch 2 Network

  • Degree Of Protection
  • Working Temperature
  • Size
  • Power Input Voltage
    AC 100~240V 50/60Hz
  • Power Output Power
  • Interface
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 piece
  • Price
  • Packaging Details
    24*18*6 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

AC 100~240V Industrial Unmanaged POE Switch 8 Gigabit Port 2 Network Port

8 Gigabit Port 2 Network Port POE Power Industrial Unmanaged POE Switch


Product Description

   CX-S804GF is an unmanaged intelligent PoE switch, with 8 Gigabit PoE ports + 2 Gigabit uplink network ports + 2 Gigabit uplink SFPs, of which 1-8 ports support IEEE 802.3af/at standard PoE power supply, single The PoE power of the port is up to 30W, and the PoE port can automatically detect and identify the powered device that complies with the IEEE 802.3af/at standard and supply power to it through the network cable. The non-POE device intelligently detects that it does not provide power and only transmits data.
   It can supply power to PoE terminal devices such as IP phones, network cameras, wireless APs, video intercoms, and smart homes through network cables. It is suitable for hotels, schools, factory dormitories, and small and medium-sized enterprises to form cost-effective networks.
   PoE technology (Power over Ethernet) is Power over Ethernet technology, which refers to providing DC power supply for some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.) while transmitting data signals. Technology, these devices that receive DC power are called powered devices.


Product Features

  • 8 Gigabit PoE ports + 2 Gigabit uplink ports + 2 Gigabit uplink SFPs
  • Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE802.3ab standards
  • Ethernet port supports 10/100/1000M self-adaptation
  • Flow control mode: Full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
  • Use store-and-forward switching mechanism
  • Comply with IEEE 802.3af/at PoE power supply standard
  • Four-speed intelligent dial switch (switch function can be customized):
   VLAN: port isolation mode, 1-4 ports realize monitoring network downlink ports are isolated from each other, and communicate with uplink ports, effectively suppressing broadcast storms,Protect intranet security.
   PoE forced power supply: Ports 5~8 become forced power supply mode, the power of a single port can reach 30W, and when the power of a single port exceeds 30W, it will automatically switch off
   The power supply of the port will be cut off, and the power supply will be restored automatically after the port overload is removed.
  AI watchdog: PoE watchdog mode, 1-8 power supply ports support PoE watchdog function, when the port communication fails, the corresponding port PoE It will restart automatically, reducing on-site maintenance costs.
  LED switch: 1-8 port LED lights indicate function switching, OFF is the link/data indicator, ON is the PoE working status indicator.
  •   The PoE port supports the priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is given priority to avoid overloading the device..
  •   Ports 1~8 support AI recognition of long distances. When the cable length is less than 100 meters, the default rate is 1000M. When the cable length is greater than 100 meters, the rate of the corresponding port is automatically reduced to 10M. PoE power supply and data transmission distance can be extended to 250 meters.



Technical Parameters
port characteristics
fixed port

8*10/100/1000Base-T/TX PoE ports (Data/Power)

2*10/100/1000Base-T/TX Uplink RJ45 ports (Data)

2*100/1000Base-X uplink SFP fiber slot ports (Data)

Network port characteristics 10/100Base–T(X) 10/100/1000 Base-T Automatic detection, full/half duplex MDI/MDI-X adaptive
Network protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX;

IEEE802.3ab 1000Base-T;


Backplane Bandwidth 24 Gbps
packet forwarding rate 17.86Mpps
packet forwarding cache 4M
MAC address table 4K
forwarding mode store and forward
Twisted pair transmission

10BASE-T: Cat5 UTP (≤250 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-T: Cat5 or later UTP (≤100 meter)

LED indicator Operation indicator: Sys (green); Network indicator: Link (green)
Special feature
Function switch (customizable) SW1: VLAN
SW2: Force Output
SW3: Watchdog
PoE and Power Characteristics
PoE power supply standard 1-8 ports support IEEE802.3af/at standard PoE power supply
PoE power supply pin 1/2(+), 3/6(-)
PoE maximum single port/average power AT-30W / AF-15.4W
total power 120W
Overall power consumption Standby power consumption: < 5W; full load power consumption: < 120W




certified product
Safety certification CE,FCC,RoHS
Lightning Protection/Protection Level

Port Lightning Protection: 4kV 10/700us

degree of protection: IP30

Electrostatic Protection (ESD)

contact discharge: 8kV

Air Discharge: 15kV

environmental standards
working environment

Working temperature: -20~55°C

Storage temperature: -40~75°C

Working humidity: 10%~90%, non-condensing

Storage humidity: 5%~90%, non-condensing

Physical Specifications
Structural Dimensions (L*W*H mm) 220*145*44mm
Net weight/Gross weight(Kg) 0.95Kg/1.09Kg
power supply voltage

Power input voltage : AC 100~240V 50/60Hz

Power output power: 52V/2.35A

Packing List

1 POE switch

1 AC power cord

1 copy of product manual

1 copy of warranty card and certificate


Details Images

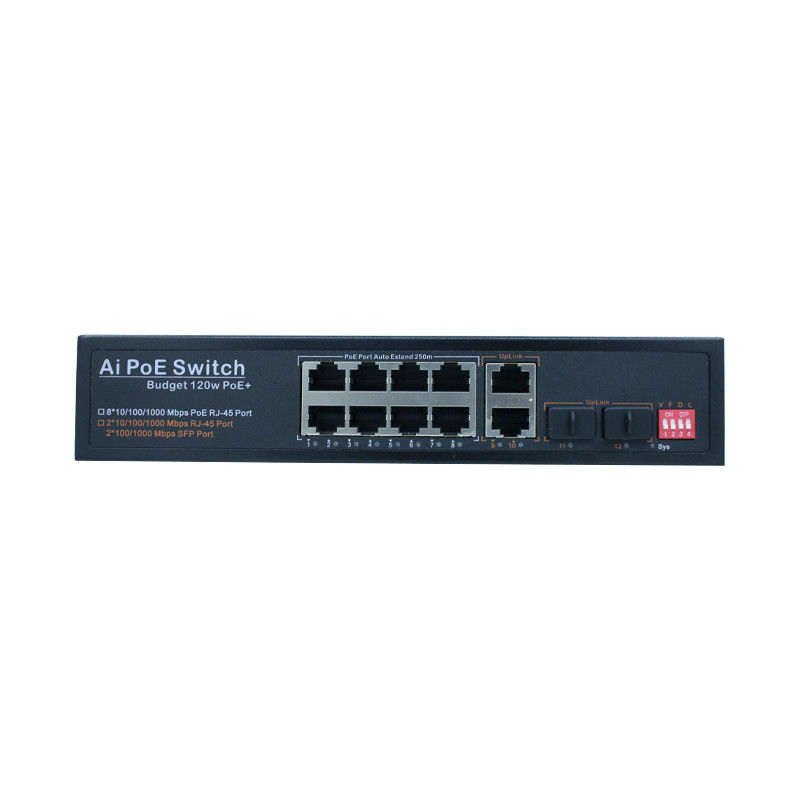

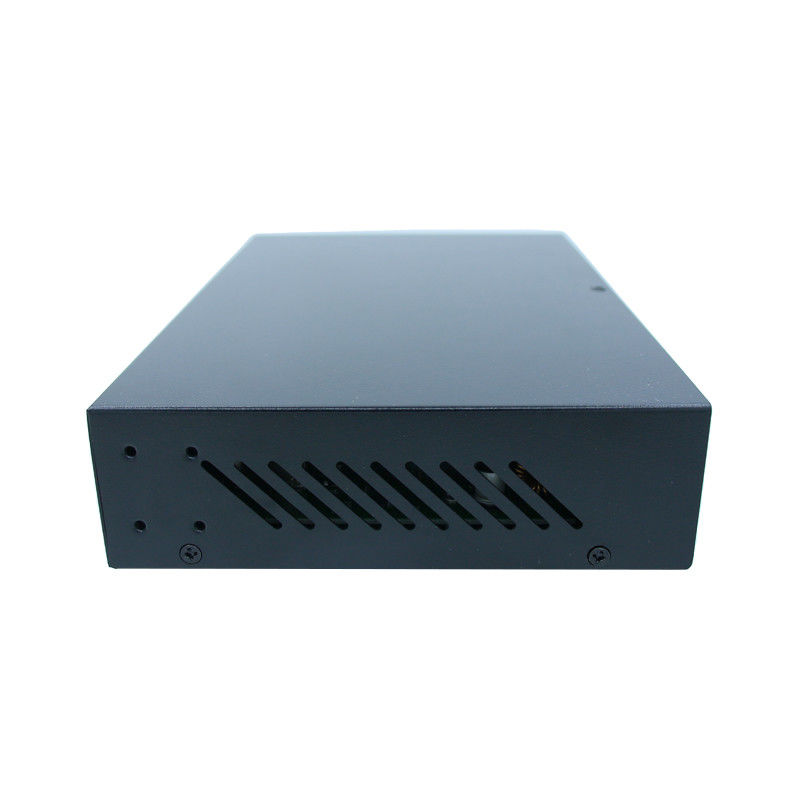

AC 100~240V Industrial Unmanaged POE Switch 8 Gigabit Port 2 Network Port 0AC 100~240V Industrial Unmanaged POE Switch 8 Gigabit Port 2 Network Port 1AC 100~240V Industrial Unmanaged POE Switch 8 Gigabit Port 2 Network Port 2AC 100~240V Industrial Unmanaged POE Switch 8 Gigabit Port 2 Network Port 3
