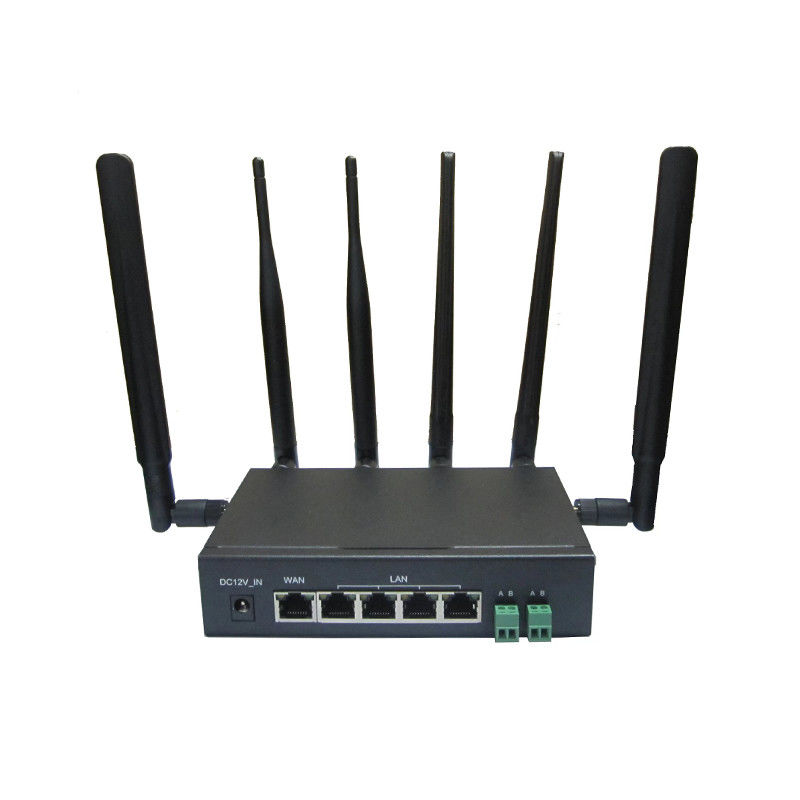

Industrial Unlocked 5g Lte Router Chipset MT7621A Wireless 5g Router Sim Slot
Product Description

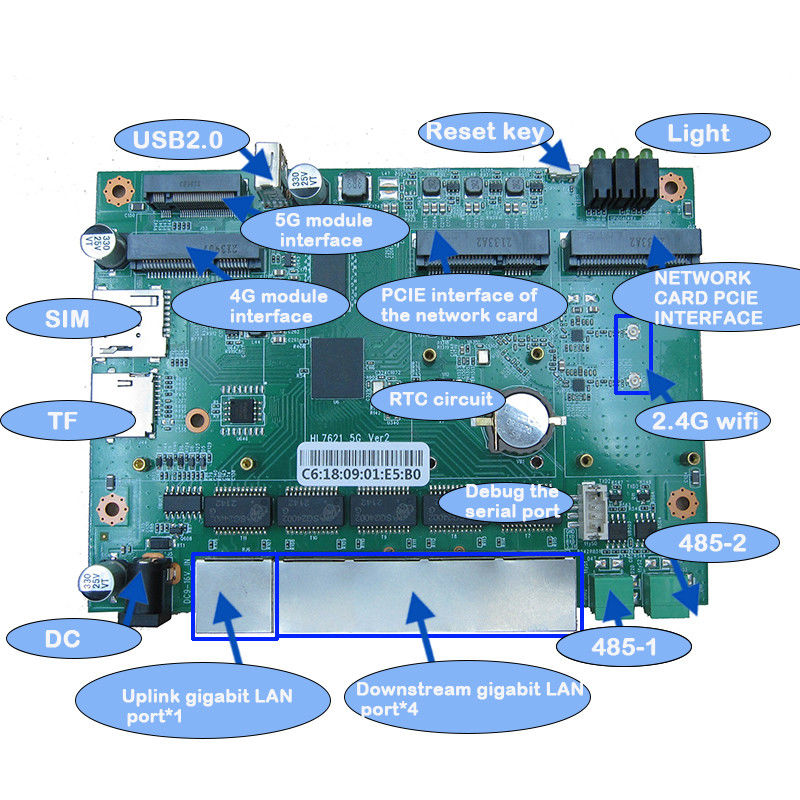

The HL7621-5G industrial 5G CPE router adopts the MTK (MediaTek) brand new dual core network chip MT7621A solution in hardware, with a main frequency of up to 880MHz. It can calmly face various applications that require CPU processing power, allowing the device to work stably in various complex industrial communication environments.
Software Support
This system defaults to the openwrt system and provides the corresponding SDK information.
Specification
Main chip | MT7621A/ Binuclear /880Mhz |
Memory | DDR3 RAM 256MB (Maximum Support 512MB) |
FLASH | SPI FLASH 16MB (Maximum Support 64MB) |
Network card PCIE | Slot expandable WiFi module |
Wireless rate | high-power 2.4G: 300Mbps |
Ethernet port | 5 10/100M/1000M Adaptive network interface, supporting automatic flipping(Auto MDI/MDIX) |
TF card holder | TF card holder *1 |
USB interface | USB2.0*1 |
5G interface | M. 2 interfaces * 1 |
4G module interface | Mini PCIE packaging interface * 1 |
2 serial ports | Debugging serial port * 1485 communication serial port * 2 |
Indicator light * 6 | Power light * 1, 4G light * 1, WiFi light * 1, and other lights can be customized |
button | 1 * RESET button |
ac adapter | DC 12V or above 1.5A |
Size (L * W * H) | 140mm*101mm*18mm |
Software specifications | |
Factory default settings |
IP address: 192.168.1.1 Password: admin |
Working mode | AP; WDS; Clinet;Clinet + AP |
WAN access method | PPPoE, Dynamic IP, Static IP, 3G/4G |
DHCP Server |
DHCP server; Client list; Static address allocation;; |
Other practical functions |
Mac address cloning Import and export of configuration files Web software upgrade |
work environment |
Working temperature: -20 ℃ to 75 ℃; Storage temperature: -50 ℃ to 95 ℃; Storage humidity: 0% to 90% RH non condensing |
Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
