WS988 4g Mobile Wifi Router With Sim Card Slot Support CAT4 CAT6 CAT12

WS988 4g Mobile Wifi Router With Sim Card Slot Support CAT4 CAT6 CAT12

  • High Light

    WS988 4g Mobile Wifi Router

    ,

    4g Mobile Wifi Router CAT4

    ,

    wireless 4g router CAT6

  • Interface
    4 LAN /1 WAN
  • Flash
    16MB
  • RAM
    128MB
  • Chipset
    QCA9531-BL3A
  • WIFI
    802.11 B/g/n
  • Operating Temperature
    -40 °C To 85 °C
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    WS988
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    25*19*6cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,,Paypal
  • Supply Ability
    1000PCS/45 days

WS988 4g Mobile Wifi Router With Sim Card Slot Support CAT4 CAT6 CAT12

WS988 4g Mobile Wifi Router 300Mbps Rj45 Port 4g Wifi Router With Sim Card Slot



Product Description



  In a networked world where everything is connected, the need for intelligent communication is only getting stronger, especially in the field of intelligent industrial control. WS988 4G Industrial Router is our new generation 4G wireless VPN router for the industrial sector. The device provides fast Internet access with the explosive growth of 4G cellular data network and a variety of wired high-speed broadband access services. With its security, stability and intelligence, it enables easy networking of thousands of devices and provides high-speed data transmission communication for true informationization of equipment.

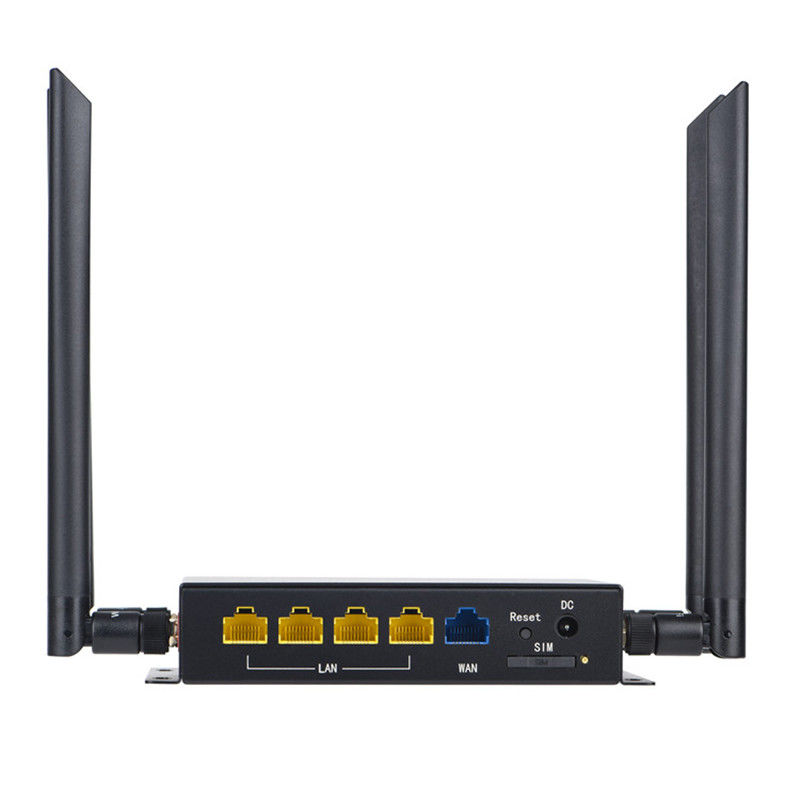

  WS988 also provides an Ethernet WAN / LAN RJ45 network port, four Ethernet LAN RJ45 network port, a SIM card slot, can simultaneously Ethernet port and WIFI, providing data gateway function



  Support remote management of equipment cloud platform, simple graphical interface, easy and fast to use, let you know the current status of the device at any time, anywhere, widely used in the M2M industry in the IoT industry chain, such as smart grid, intelligent transportation, smart home, finance, mobile POS terminal, supply chain automation, industrial automation, intelligent building, fire, public safety, environmental protection, meteorology, digital medical, remote sensing survey, space exploration, agriculture, forestry, water affairs, coal mining, petrochemical and other fields



Other product related

The price does not include 4G modules, there are only 2 wifi antennas, please contact customer service for the price of adding 4G modules; it can support the installation of modules such as EC200A/EC20/EC25/EP06



Product Features

  • 4G industrial grade router
  • 300M bandwidth, smooth wireless connection
  • External omnidirectional 4G antenna, better signal, more stable Internet access
  • Support CAT4 CAT6 CAT12
  • Plug-and-play convenience



Specification



Product Model WS988
SIM card Standard Sim Card
Main Chip QCA9531-BL3A
Memory DDR2 512Mb
Flash Memory SPI 128Mb
Wireless Speed 2.4G 300Mbps
Operating band 2.4GHz
Ethernet port WAN/LAN×1, LAN×4, 10/100 M adaptive
Power adapter Input: 100V~240V AC 50Hz/60Hz, Output: DC 12V/1A
Reset button Long press more than 6 seconds to restore factory settings

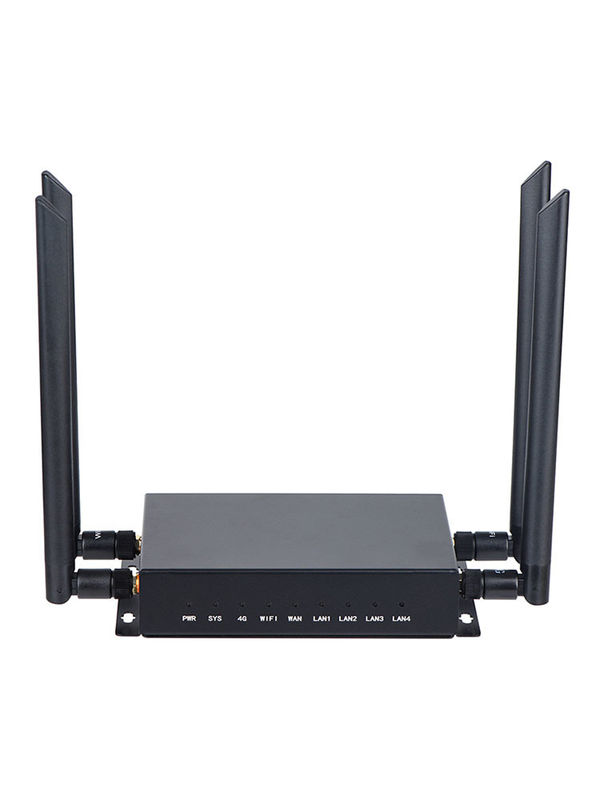

LED Indicator Power light × 1, system light × 1, w i f i light × 1, 4G signal light × 1, network port light × 5
Dimensions 130*98*30mm
Weight 285g
Working Environment

Operating temperature: -40 °C to 85 °C; storage temperature: -40 °C to 8 5 °C; humidity: 5 % to 95 %

(no condensation)



Details Images

WS988 4g Mobile Wifi Router With Sim Card Slot Support CAT4 CAT6 CAT12 0WS988 4g Mobile Wifi Router With Sim Card Slot Support CAT4 CAT6 CAT12 1WS988 4g Mobile Wifi Router With Sim Card Slot Support CAT4 CAT6 CAT12 2WS988 4g Mobile Wifi Router With Sim Card Slot Support CAT4 CAT6 CAT12 3WS988 4g Mobile Wifi Router With Sim Card Slot Support CAT4 CAT6 CAT12 4



FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
